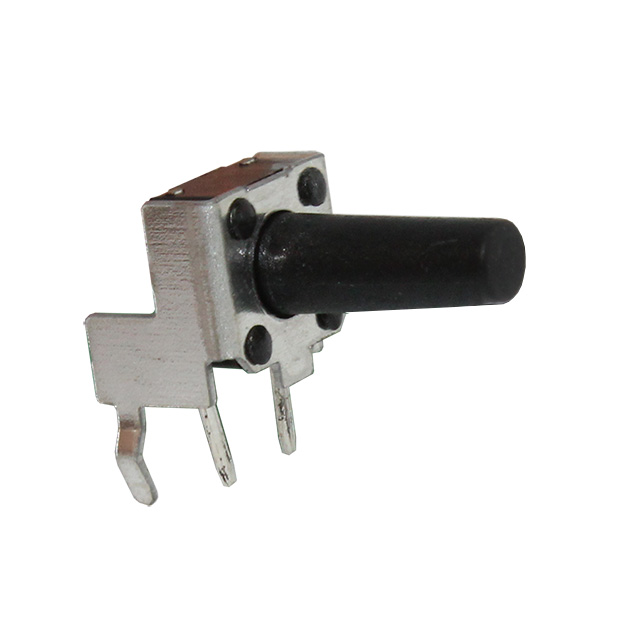

CT1102V5 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 50V

Part	Actuator Material	Switch Travel	Illumination	Switch Function	Actuator Length, Right Angle [x]	Circuit	Contact Rating @ Voltage	Operating Force	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Orientation	Actuator Type	Termination Style	Outline [y]	Outline [x]
CIT Relay and Switch CT1102V5.85F160	Nylon 6/6 Polyamide (PA66)	0.25 mm	Non-Illuminated	Off-Mom	5.85 mm	SPST-NO	0.05 A 50 VDC	160 gf	Right Angle Through Hole	85 °C	-40 C	Side Actuated	Plunger for Cap	PC Pin	6.3 mm	7.5 mm
CIT Relay and Switch CT1102V5.85F100	Nylon 6/6 Polyamide (PA66)	0.25 mm	Non-Illuminated	Off-Mom	5.85 mm	SPST-NO	0.05 A 50 VDC	100 gf	Right Angle Through Hole	85 °C	-40 C	Side Actuated	Plunger for Cap	PC Pin	6.3 mm	7.5 mm
CIT Relay and Switch CT1102V5.85F260	Nylon 6/6 Polyamide (PA66)	0.25 mm	Non-Illuminated	Off-Mom	5.85 mm	SPST-NO	0.05 A 50 VDC	260 gf	Right Angle Through Hole	85 °C	-40 C	Side Actuated	Plunger for Cap	PC Pin	6.3 mm	7.5 mm
