50RIA40 Series

Catalog

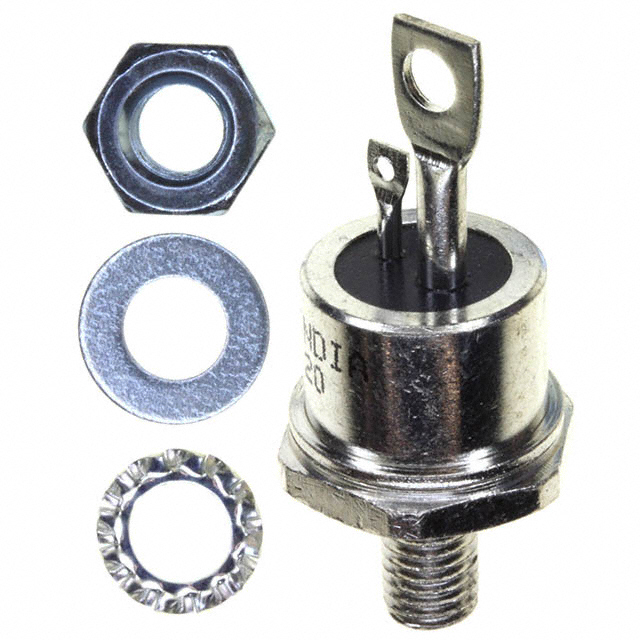

SCR 400V 80A TO208AC

Part	Mounting Type	SCR Type	Voltage - Gate Trigger (Vgt) (Max)	Current - On State (It (AV)) (Max)	Package / Case	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Voltage - Off State	Current - Off State (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max] [x]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Current - On State (It (RMS)) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Voltage - On State (Vtm) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)
Vishay General Semiconductor - Diodes Division VS-50RIA40M	Chassis Stud Mount	Standard Recovery	2.5 V	50 A	Stud TO-208AC TO-65-3	1200 A	1255 A	400 V	15 mA	100 mA	TO-208AC (TO-65)	125 °C	-40 °C	80 A	200 mA	1.6 V
Vishay General Semiconductor - Diodes Division VS-50RIA40	Chassis Stud Mount	Standard Recovery	2.5 V	50 A	Stud TO-208AC TO-65-3			400 V	15 mA	100 mA	TO-208AC (TO-65)	125 °C	-40 °C	80 A	200 mA	1.6 V	1430 A 1490 A
