32054 Series

Catalog

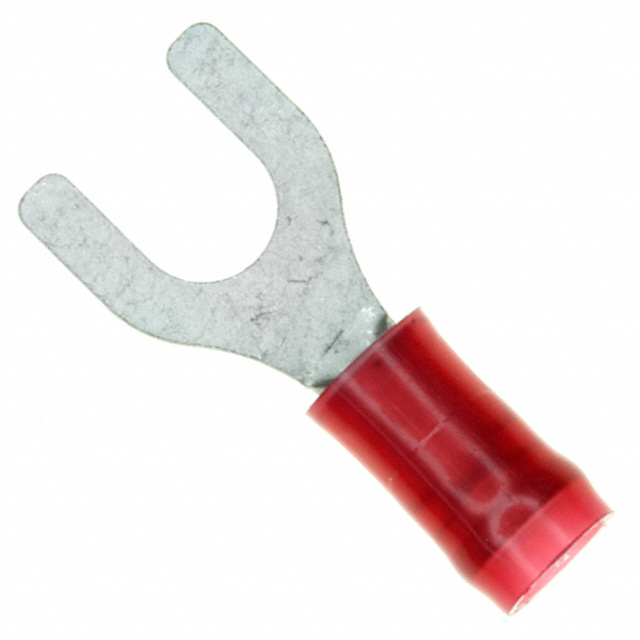

FORK / SPADE TONGUE TERMINAL, PIDG SERIES, 22AWG TO 16AWG, 1.65 MM², #10, NYLON (POLYAMIDE)

Part	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Length - Overall [x]	Length - Overall	Terminal Type	Insulation	Length - Ring Center to Termination	Length - Ring Center to Termination [x]	Stud/Tab Size	Contact Finish	Wire Gauge [Max]	Wire Gauge [Min]	Width - Outer Edges [x]	Width - Outer Edges [x]	Material - Insulation	Contact Material	Termination	Features	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Mounting Type	Length - Termination	Length - Termination	Color
TE Connectivity Raychem Cable Protection 2-32054-1	0.14 in	0.105 in	3.56 mm	2.67 mm	0.908 "	23.06 mm	Standard	Insulated	7.92 mm	0.312 in	10 Stud	Tin	22 AWG	16 AWG	0.375 in	9.53 mm	Nylon Polyamide (PA)	Copper	Crimp	Serrated Termination	5 mm	0.197 in	Free Hanging (In-Line)	0.404 "	10.26 mm	Red
TE Connectivity Raychem Cable Protection 8-32054-1	0.14 in	0.105 in	3.56 mm	2.67 mm	0.908 "	23.06 mm	Standard	Insulated	7.92 mm	0.312 in	10 Stud	Tin	22 AWG	16 AWG	0.375 in	9.53 mm	Nylon Polyamide (PA)	Copper	Crimp	Serrated Termination	5 mm	0.197 in	Free Hanging (In-Line)	0.404 "	10.26 mm	Red
