200MSP5 Series

Manufacturer: E-Switch

Catalog

SWITCH TOGGLE SPDT 3A 120V

Part	Electrical Life (Cycles)	Actuator Material	Voltage Rating - AC	Illumination	Panel Cutout Diameter	Panel Cutout Shape	Voltage Rating - DC	Switch Function	Current Rating	Actuator Length	Features	Termination Style	Actuator Type	Circuit	Bushing Thread	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type
E-Switch 200MSP5T4B1M7QE	30000 Cycles	Brass Chrome Plated	120 V	Non-Illuminated	4.95 mm	Circular	28 V	On-Off-Mom	3 A	0.5 in	Epoxy Sealed Terminals	PC Pin	Standard Round	SPDT	10-48	85 °C	-30 °C	Panel Mount Right Angle Vertical
E-Switch 200MSP5T4B5M1QE	30000 Cycles	Brass Chrome Plated	120 V	Non-Illuminated	0.25 "	Circular	28 V	On-Off-Mom	3 A	10.41 mm	Epoxy Sealed Terminals	Solder Lug	Standard Round	SPDT	1/4-40	85 °C	-30 °C	Panel Mount

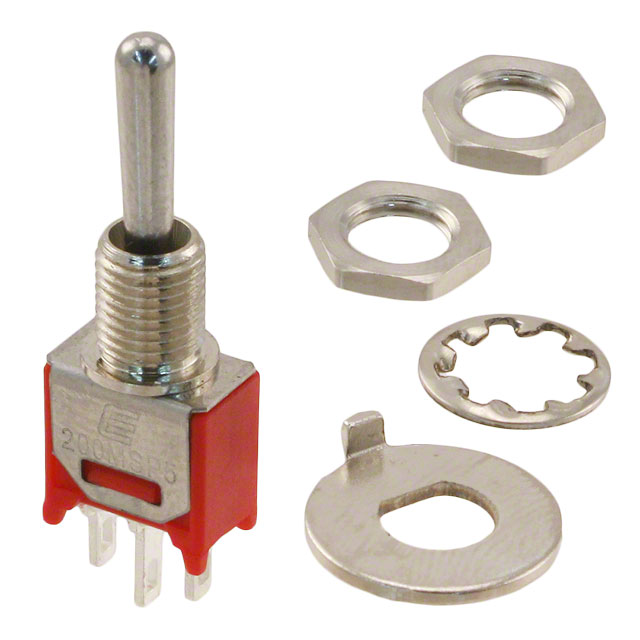

E-Switch 200MSP5T1B1M1QEH	30000 Cycles	Brass Chrome Plated	120 V	Non-Illuminated	4.95 mm	Circular	28 V	On-Off-Mom	3 A	9.4 mm	Epoxy Sealed Terminals	Solder Lug	Standard Round	SPDT	10-48	85 °C	-30 °C	Panel Mount
E-Switch 200MSP5T4B5M1QEH	30000 Cycles	Brass Chrome Plated	120 V	Non-Illuminated	0.25 "	Circular	28 V	On-Off-Mom	3 A	10.41 mm	Epoxy Sealed Terminals	Solder Lug	Standard Round	SPDT	1/4-40	85 °C	-30 °C	Panel Mount
E-Switch 200MSP5T2B1M6QEH	30000 Cycles	Brass Chrome Plated	120 V	Non-Illuminated	4.95 mm	Circular	28 V	On-Off-Mom	3 A	5.33 mm	Epoxy Sealed Terminals	PC Pin	Standard Round	SPDT	10-48	85 °C	-30 °C	Panel Mount Right Angle
E-Switch 200MSP5T2B1M6REH	30000 Cycles	Brass Chrome Plated	20 V	Non-Illuminated	4.95 mm	Circular	20 V	On-Off-Mom	0.4 VA	5.33 mm	Epoxy Sealed Terminals	PC Pin	Standard Round	SPDT	10-48	85 °C	-30 °C	Panel Mount Right Angle
