3210-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

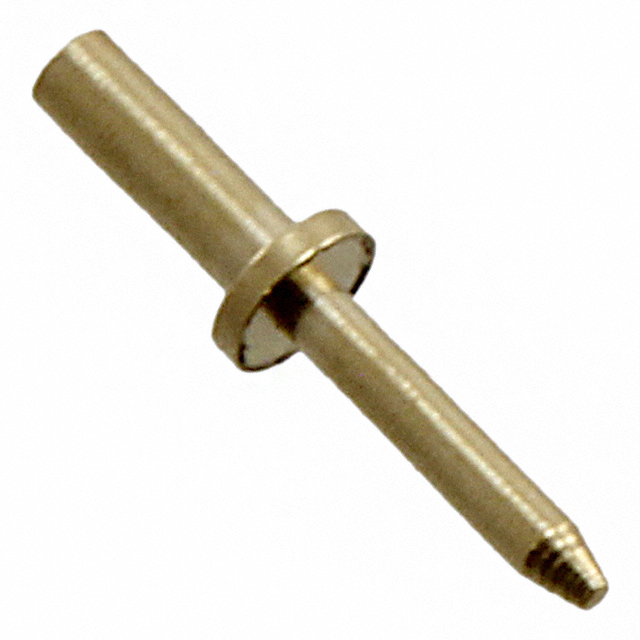

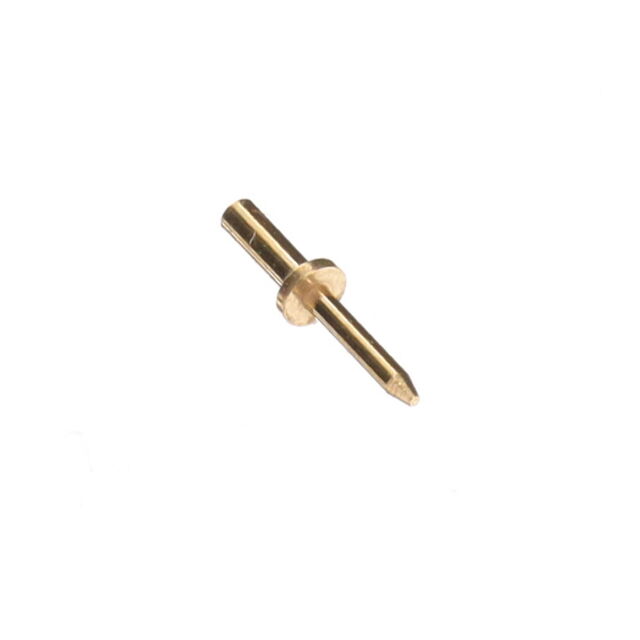

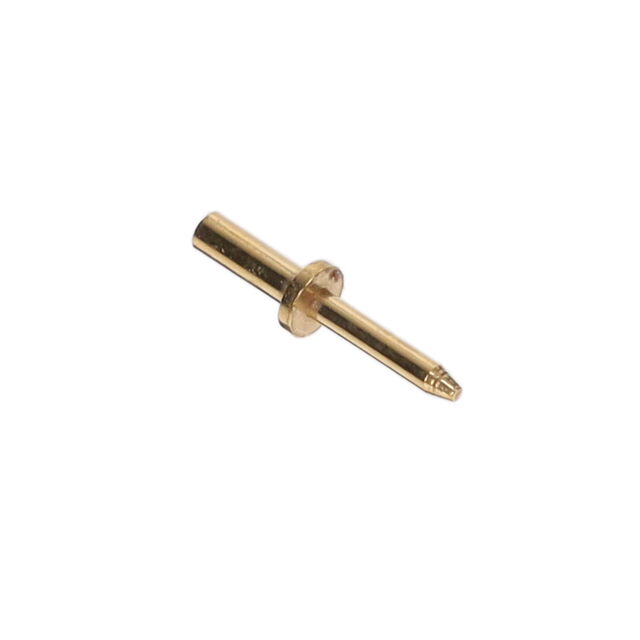

CONN PC PIN CIRC .020DIA GOLD
| Part | Length - Above Flange [x] | Length - Above Flange [x] | Terminal Style | Length - Below Flange [x] | Length - Below Flange [x] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Mounting Type | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish | Insulation | Length - Overall [x] | Length - Overall [x] | Contact Material | Board Thickness | Board Thickness | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Termination | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 3.05 mm | 0.12 " | Single End | 0.085 " | 2.16 mm | 0.02 in | 0.51 mm | Through Hole | 0.051 in | 1.3 mm | Gold | Non-Insulated | 0.215 in | 5.46 mm | Brass Alloy | 1.57 mm | 0.062 " | 0.031 in | 0.79 mm | 50 µin | 1.27 µm | Swage | PC Pin |
 Mill-Max Manufacturing Corp. | 3.05 mm | 0.12 " | Single End | 0.085 " | 2.16 mm | 0.02 in | 0.51 mm | Through Hole | 0.051 in | 1.3 mm | Gold | Non-Insulated | 0.215 in | 5.46 mm | Brass Alloy | 1.57 mm | 0.062 " | 0.031 in | 0.79 mm | 10 Áin | 0.25 Ám | Swage | PC Pin |
 Mill-Max Manufacturing Corp. | 3.05 mm | 0.12 " | Single End | 0.085 " | 2.16 mm | 0.02 in | 0.51 mm | Through Hole | 0.051 in | 1.3 mm | Gold | Non-Insulated | 0.215 in | 5.46 mm | Brass Alloy | 1.57 mm | 0.062 " | 0.031 in | 0.79 mm | 20 µin | 0.51 µm | Swage | PC Pin |
