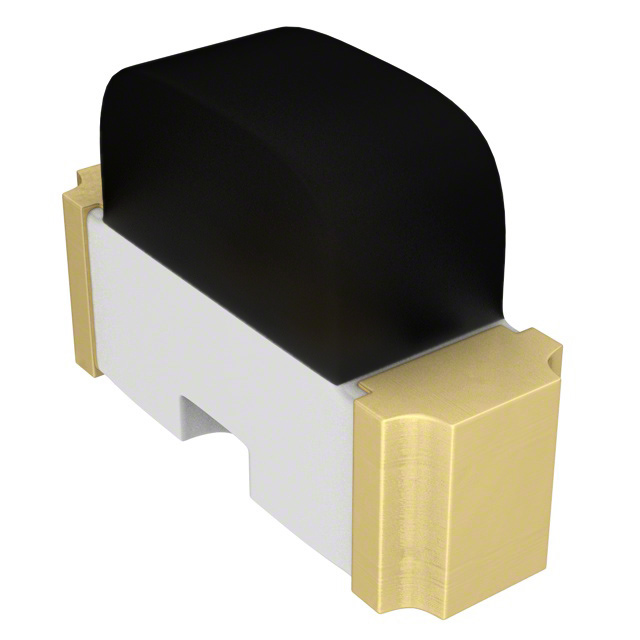

APECVA3010 Series

Catalog

LED BLUE CLEAR SMD R/A

Part	Viewing Angle	Lens Transparency	Configuration	Current - Test	Supplier Device Package	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Height (Max) [z]	Color	Mounting Type	Package / Case	Wavelength - Dominant	Lens Style	Lens Size [y]	Lens Size [x]	Size / Dimension [x]	Size / Dimension [y]	Lens Color	Orientation [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Radiant Intensity (Ie) Min @ If	Current - DC Forward (If) (Max)	Wavelength	Type
Kingbright APECVA3010QBC/G-GX	120 °	Clear	Standard	20 mA	SMD	461 nm	3.3 V	150 mcd	1 mm	Blue	Right Angle Surface Mount	2-SMD No Lead	465 nm	Rectangle with Domed Top	1 mm	2 mm	3 mm	2 mm	Colorless

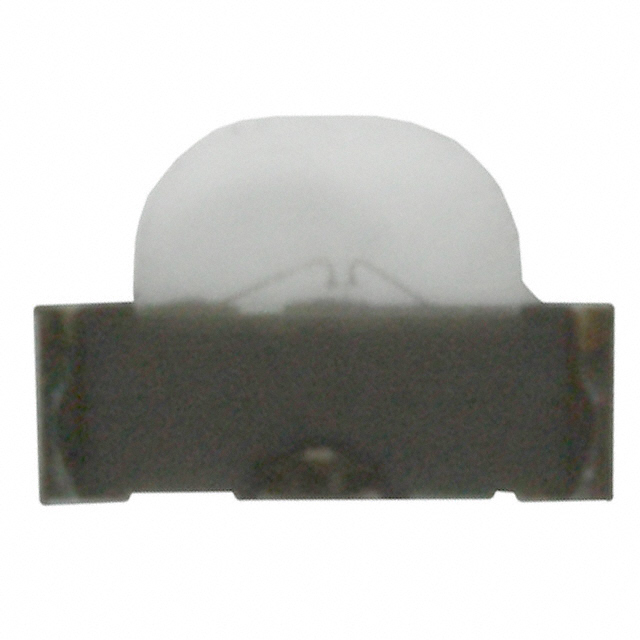

Kingbright APECVA3010ZGC	120 °	Clear	Standard	20 mA	SMD	515 nm	3.3 V	350 mcd	1 mm	Green	Right Angle Surface Mount	2-SMD No Lead	525 nm	Rectangle with Domed Top	1 mm	2 mm	3 mm	2 mm	Colorless

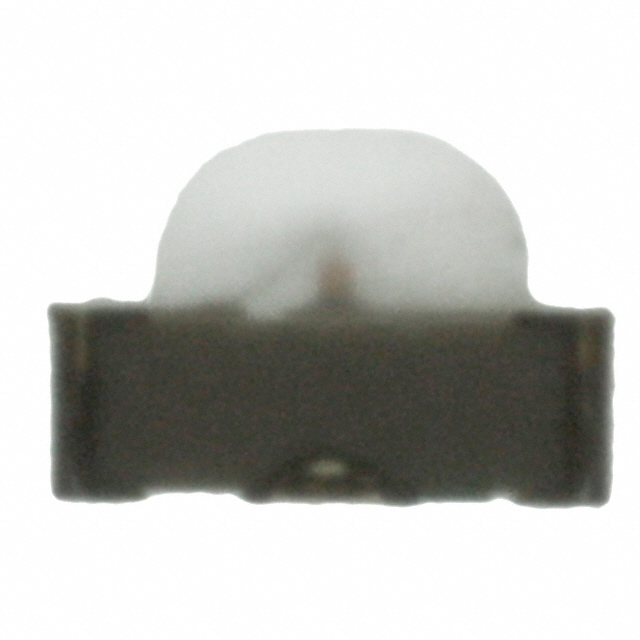

Kingbright APECVA3010SGC	120 °	Clear	Standard	20 mA	SMD	565 nm	2.2 V	15 mcd	1 mm	Green	Right Angle Surface Mount	2-SMD No Lead	568 nm	Rectangle with Domed Top	1 mm	2 mm	3 mm	2 mm	Colorless

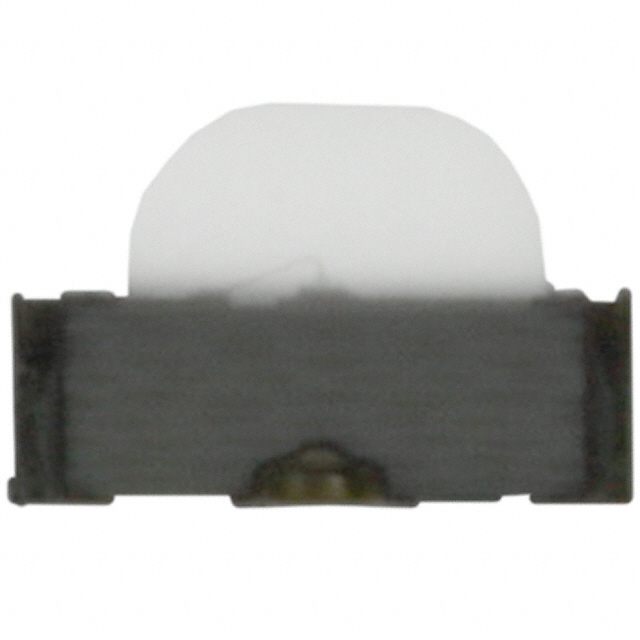

Kingbright APECVA3010PBC/A	120 °	Clear	Standard	20 mA	SMD	468 nm	3.2 V	60 mcd	1 mm	Blue	Right Angle Surface Mount	2-SMD No Lead	470 nm	Rectangle with Domed Top	1 mm	2 mm	3 mm	2 mm	Colorless

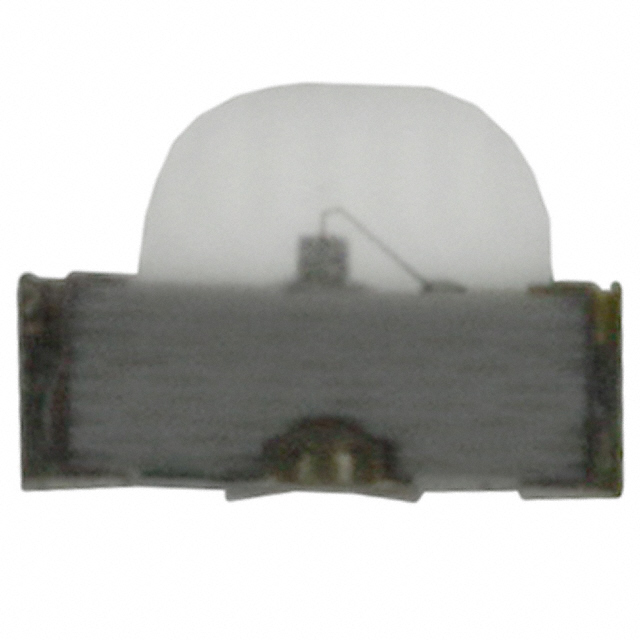

Kingbright APECVA3010F3C	120 °										Right Angle Surface Mount	2-SMD No Lead								Side View	85 C	-40 ¯C	0.7 mW/sr	50 mA	940 nm	Infrared (IR)
Kingbright APECVA3010SYCK	120 °	Clear	Standard	20 mA	SMD	590 nm	2 V	150 mcd	1 mm	Yellow	Right Angle Surface Mount	2-SMD No Lead	590 nm	Rectangle with Domed Top	1 mm	2 mm	3 mm	2 mm	Colorless
Kingbright APECVA3010YC	120 °	Clear	Standard	20 mA	SMD	590 nm	2.1 V	7 mcd	1 mm	Yellow	Right Angle Surface Mount	2-SMD No Lead	588 nm	Rectangle with Domed Top	1 mm	2 mm	3 mm	2 mm	Colorless
Kingbright APECVA3010EC	120 °	Clear	Standard	20 mA	SMD	627 nm	2 V	15 mcd	1 mm	Red	Right Angle Surface Mount	2-SMD No Lead	625 nm	Rectangle with Domed Top	1 mm	2 mm	3 mm	2 mm	Colorless
