45174 Series

Catalog

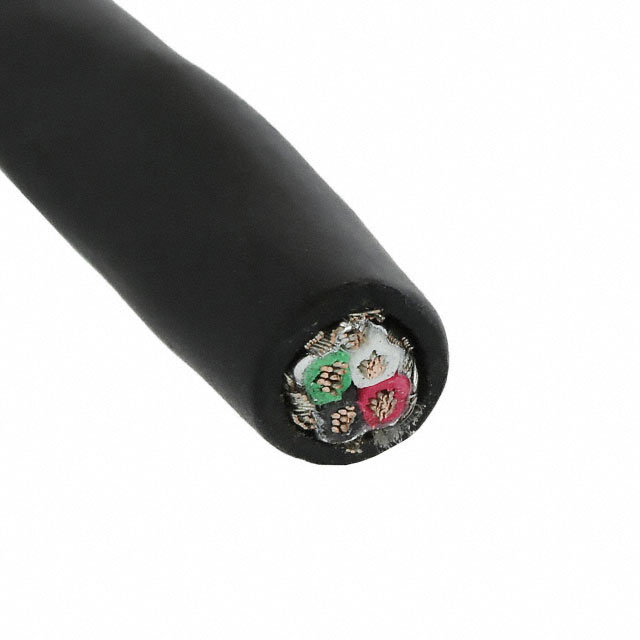

CABLE 4COND 16AWG BLK SHLD 1000'

Part	Cable Type	Shield Coverage	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Wire Gauge	Length	Length	Shield Material	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter	Jacket (Insulation) Material	Jacket Color	Number of Conductors	Ratings	Voltage	Conductor Material
ALPHA WIRE 45174 BK001	Multi-Conductor	70 % 100 %	Thermoplastic Elastomer (TPE)	1.143 mm	0.045 in	-50 °C	125 °C	19	0.0117 in	Braid Foil	16 AWG	1000 ft	304.8 m	Aluminum Suprashield®	Biological Compatibility Drain Wire Rip Cord	0.342 in	8.69 mm	Thermoplastic Elastomer (TPE)	Black	4	ISO 10993	300 V	Copper Tinned
ALPHA WIRE 45174 BK199	Multi-Conductor	70 % 100 %	Thermoplastic Elastomer (TPE)	1.143 mm	0.045 in	-50 °C	125 °C	19	0.0117 in	Braid Foil	16 AWG	1000 ft	304.8 m	Aluminum Suprashield®	Biological Compatibility Drain Wire Rip Cord	0.342 in	8.69 mm	Thermoplastic Elastomer (TPE)	Black	4	ISO 10993	300 V	Copper Tinned
ALPHA WIRE 45174 BL199	Multi-Conductor	70 % 100 %	Thermoplastic Elastomer (TPE)	1.143 mm	0.045 in	-50 °C	125 °C	19	0.0117 in	Braid Foil	16 AWG	1000 ft	304.8 m	Aluminum Suprashield®	Biological Compatibility Drain Wire Rip Cord	0.342 in	8.69 mm	Thermoplastic Elastomer (TPE)	Blue	4	ISO 10993	300 V	Copper Tinned
