306-041 Series
Manufacturer: EDAC Inc.
Beta
⌘K

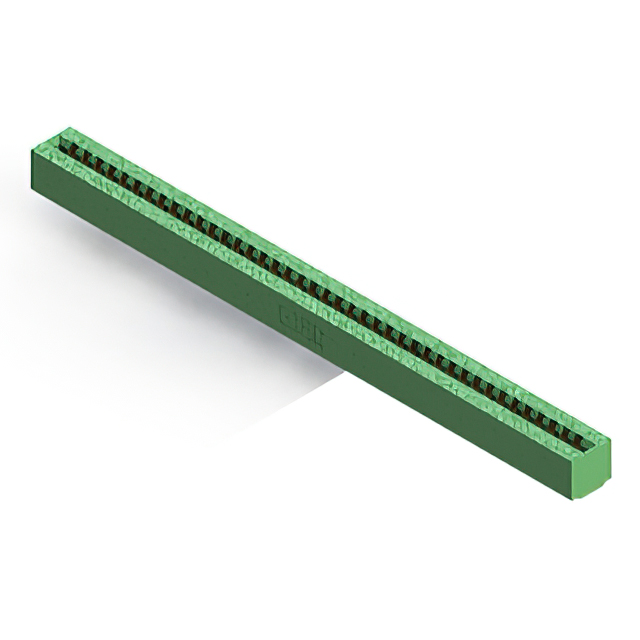

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 41 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Material - Insulation | Termination Rows | Pitch | Pitch | Card Type | Number of Positions/Bay/Row | Termination | Contact Type | Number of Positions | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Number of Rows [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Card Thickness [Max] | Card Thickness [Min] | Color | Gender | Contact Finish | Read Out | Flange Feature | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.96 mm | 0.156 in | Non Specified - Dual Edge | 41 | Solder | Cantilever | 82 | Copper Alloy | 0.25 Ám | 10 Áin | 2 | -40 C | 105 ░C | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Female | Gold | Dual | ||||

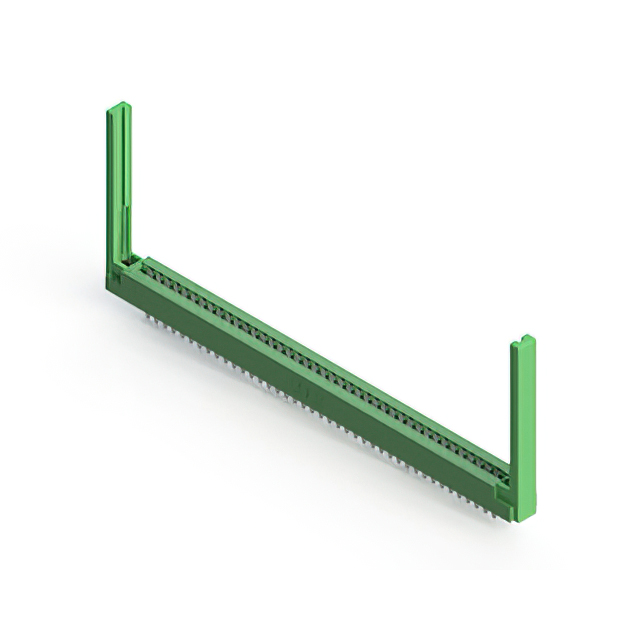

 EDAC Inc. | Polyester Thermoplastic | 1 | 3.96 mm | 0.156 in | Non Specified - Dual Edge | 41 | Solder | Cantilever | 82 | Copper Alloy | 0.25 Ám | 10 Áin | 2 | -40 C | 105 ░C | Panel Mount Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Female | Gold | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.96 mm | 0.156 in | Non Specified - Dual Edge | 41 | Solder | Cantilever | 82 | Copper Alloy | 0.25 Ám | 10 Áin | 2 | -40 C | 105 ░C | Panel Mount Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Female | Gold | Dual | 4-40 Flush Mount Threaded Insert Top Opening | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.96 mm | 0.156 in | Non Specified - Dual Edge | 41 | Solder Eyelet(s) | Cantilever | 82 | Copper Alloy | 2 | -40 C | 105 ░C | Panel Mount | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Female | Tin | Dual | Flush Mount M3 Threaded Insert Top Opening | |||||
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.96 mm | 0.156 in | Non Specified - Dual Edge | 41 | Solder | Cantilever | 82 | Copper Alloy | 0.25 Ám | 10 Áin | 2 | -40 C | 105 ░C | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Female | Gold | Dual | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.96 mm | 0.156 in | Non Specified - Dual Edge | 41 | Solder | Cantilever | 82 | Copper Alloy | 0.25 Ám | 10 Áin | 2 | -40 C | 105 ░C | Panel Mount Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Female | Gold | Dual | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | |
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.96 mm | 0.156 in | Non Specified - Dual Edge | 41 | Solder Eyelet(s) | Cantilever | 82 | Copper Alloy | 2 | -40 C | 105 ░C | Panel Mount | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Female | Tin | Dual | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.96 mm | 0.156 in | Non Specified - Dual Edge | 41 | Solder | Cantilever | 82 | Copper Alloy | 2 | -40 C | 105 ░C | Panel Mount Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Female | Tin | Dual | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.96 mm | 0.156 in | Non Specified - Dual Edge | 41 | Solder | Cantilever | 82 | Copper Alloy | 0.25 Ám | 10 Áin | 2 | -40 C | 105 ░C | Panel Mount Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Female | Gold | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.96 mm | 0.156 in | Non Specified - Dual Edge | 41 | Solder Eyelet(s) | Cantilever | 82 | Copper Alloy | 2 | -40 C | 105 ░C | Panel Mount | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Female | Tin | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides |
