TCK207AN Series

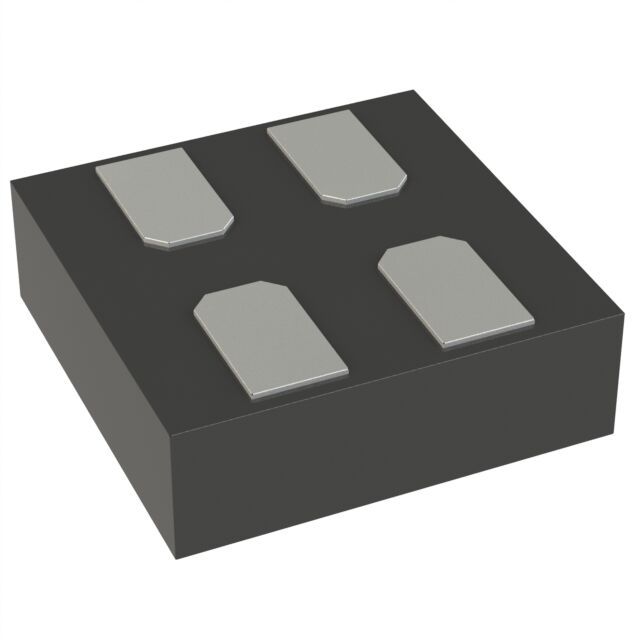

Load Switch ICs, 0.75 to 3.6 V/2.0 A Load Switch IC, 21.5 mΩ@3.3V, DFN4A
Manufacturer: Toshiba Semiconductor and Storage
Catalog
Load Switch ICs, 0.75 to 3.6 V/2.0 A Load Switch IC, 21.5 mΩ@3.3V, DFN4A
Beta
⌘K
Load Switch ICs, 0.75 to 3.6 V/2.0 A Load Switch IC, 21.5 mΩ@3.3V, DFN4A
Load Switch ICs, 0.75 to 3.6 V/2.0 A Load Switch IC, 21.5 mΩ@3.3V, DFN4A
Load Switch ICs, 0.75 to 3.6 V/2.0 A Load Switch IC, 21.5 mΩ@3.3V, DFN4A
| Part | Current - Output (Max) [Max] | Output Type | Switch Type | Output Configuration | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Interface | Voltage - Supply (Vcc/Vdd) | Features | Package / Case | Mounting Type | Input Type | Rds On (Typ) | Fault Protection | Voltage - Load [Max] | Voltage - Load [Min] | Number of Outputs | Ratio - Input:Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Toshiba Semiconductor and Storage | 2 A | N-Channel | General Purpose | High Side | 85 C | -40 ¯C | 4-DFNA (1.2x1.2) | On/Off | Not Required | Load Discharge Slew Rate Controlled | 4-XFDFN Exposed Pad | Surface Mount | Non-Inverting | 21.5 mOhm | Reverse Current | 3.6 V | 0.75 V | 1 | 1:1 |
