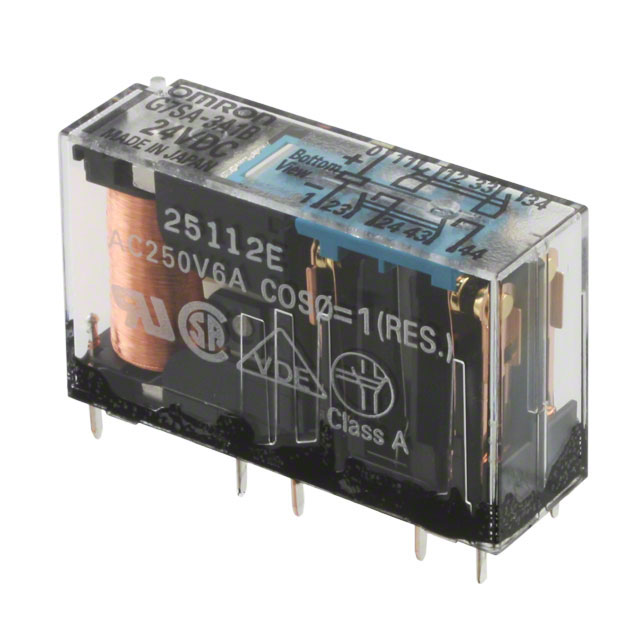

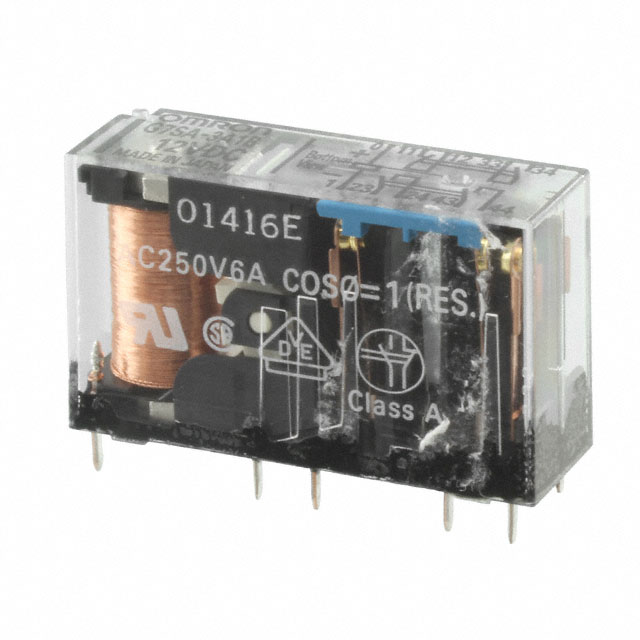

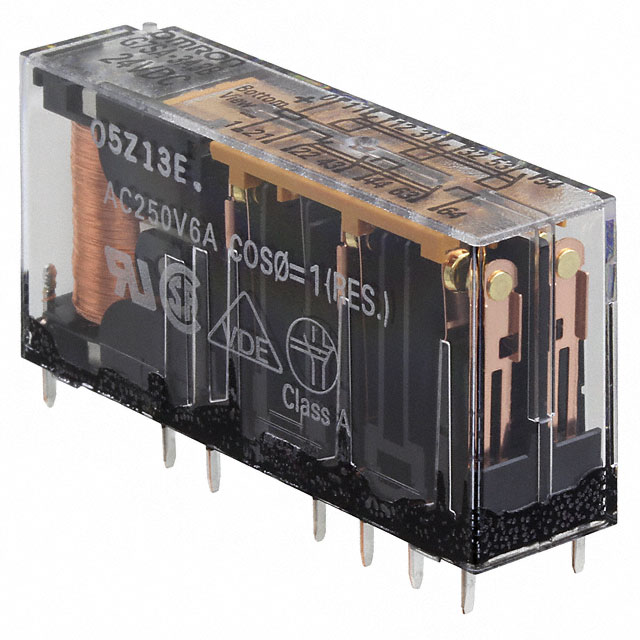

G7SA-3A Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY SAFETY
| Part | Must Operate Voltage | Coil Current | Operate Time | Must Release Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage | Coil Resistance | Release Time | Contact Rating (Current) | Termination Style | Features | Contact Material | Switching Voltage | Mounting Type | Contact Form | Coil Power |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | |||||||||||||||||
 Omron Electronics Inc-EMC Div | 18 VDC | 20.8 mA | 20 ms | 2.4 VDC | 85 °C | -40 °C | 24 VDC | 1.15 kOhms | 10 ms | 6 A | PC Pin Plug In | Sealed - Flux Protection | Gold (Au) Silver (Ag) | 125 VDC 250 VAC | Socketable Through Hole | ||
 Omron Electronics Inc-EMC Div | 18 VDC | 15 mA | 20 ms | 2.4 VDC | 85 °C | -40 °C | 24 VDC | 1.6 kOhms | 10 ms | 6 A | PC Pin Plug In | Sealed - Flux Protection | Gold (Au) Silver (Ag) | 125 VDC 250 VAC | Socketable Through Hole | 4PST-3NO/1NC (3 Form A 1 Form B) | 360 mW |
Omron Electronics Inc-EMC Div | 82.5 VDC | 3.8 mA | 20 ms | 11 VDC | 85 °C | -40 °C | 110 VDC | 28800 Ohms | 10 ms | 6 A | PC Pin Plug In | Sealed - Flux Protection | Gold (Au) Silver (Ag) | 125 VDC 250 VAC | Socketable Through Hole | 4PST-3NO/1NC (3 Form A 1 Form B) | |
 Omron Electronics Inc-EMC Div | 9 VDC | 30 mA | 20 ms | 1.2 VDC | 85 °C | -40 °C | 12 VDC | 400 Ohms | 10 ms | 6 A | PC Pin Plug In | Sealed - Flux Protection | Gold (Au) Silver (Ag) | 125 VDC 250 VAC | Socketable Through Hole | 4PST-3NO/1NC (3 Form A 1 Form B) | 360 mW |
