717-021 Series
Manufacturer: EDAC Inc.
Beta
⌘K

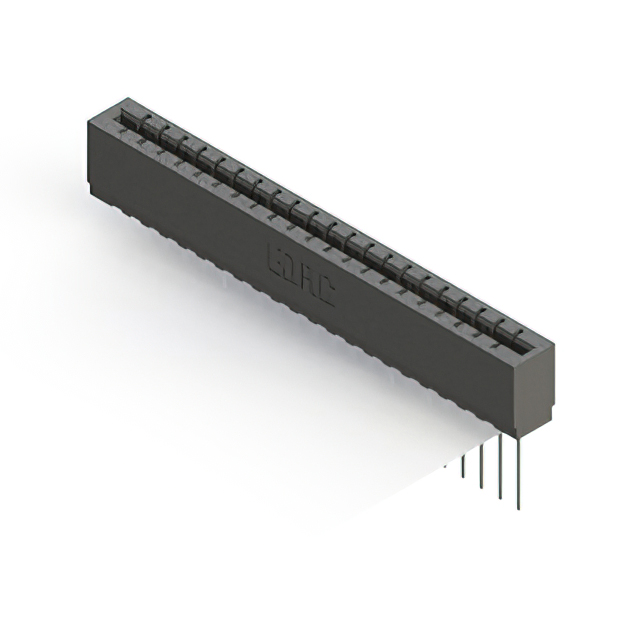

CONN EDGE SGL FMALE 21POS 0.156
| Part | Termination Rows | Material - Insulation | Contact Finish | Read Out | Card Thickness [Max] | Card Thickness [Min] | Gender | Termination | Contact Finish Thickness | Contact Finish Thickness | Pitch | Pitch | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Material | Card Type | Number of Rows | Contact Type | Color | Number of Positions | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | Gold | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Press-Fit | 30 Áin | 0.76 Ám | 3.96 mm | 0.156 in | -40 C | 105 ░C | Through Hole | Copper Alloy | Non Specified - Single Edge | 1 | Cantilever | Black | 21 | 21 |
 EDAC Inc. | 1 | Polyester Thermoplastic | Gold | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Press-Fit Wire Wrap | 30 Áin | 0.76 Ám | 3.96 mm | 0.156 in | -40 C | 105 ░C | Through Hole | Copper Alloy | Non Specified - Single Edge | 1 | Cantilever | Black | 21 | 21 |
 EDAC Inc. | 1 | Polyester Thermoplastic | Gold | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Press-Fit Wire Wrap | 30 Áin | 0.76 Ám | 3.96 mm | 0.156 in | -40 C | 105 ░C | Through Hole | Copper Alloy | Non Specified - Single Edge | 1 | Cantilever | Black | 21 | 21 |
 EDAC Inc. | 1 | Polyester Thermoplastic | Gold | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Press-Fit Wire Wrap | 30 Áin | 0.76 Ám | 3.96 mm | 0.156 in | -40 C | 105 ░C | Through Hole | Copper Alloy | Non Specified - Single Edge | 1 | Cantilever | Black | 21 | 21 |
