FAN1581 Series

Catalog

IC REG LINEAR 1.2V 5A TO263-5

Part	Number of Regulators	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Supplier Device Package	Current - Output	Output Type	Package / Case	Operating Temperature [Max]	Mounting Type	Voltage Dropout (Max) [Max]	Current - Quiescent (Iq)	PSRR	Output Configuration	Protection Features
ON Semiconductor FAN1581M12X	1	7 V	1.2 V	TO-263-5	5 A	1.81 mOhm	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	125 °C	Surface Mount	1.18 V	6 mA	80 dB	Positive	Over Current Over Temperature
ON Semiconductor FAN1581M25X	1	7 V	2.5 V	TO-263-5	5 A	1.81 mOhm	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	125 °C	Surface Mount	1.18 V	6 mA	80 dB	Positive	Over Current Over Temperature

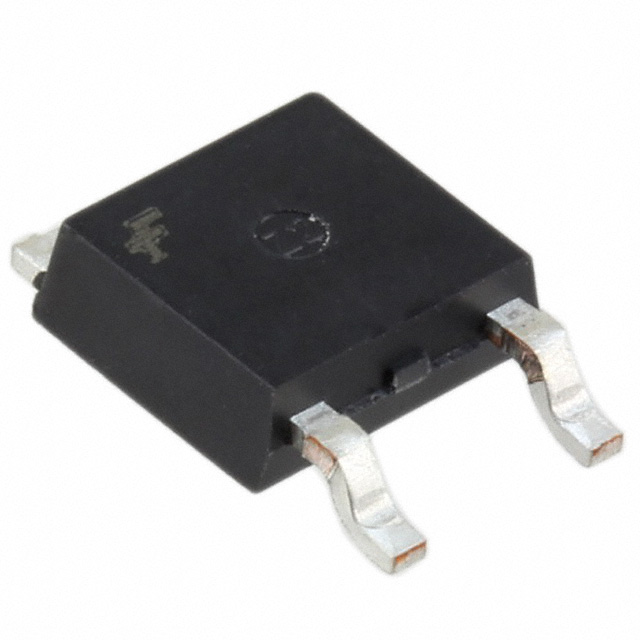

ON Semiconductor FAN1581D25X	1	7 V	2.5 V	TO-252-5	5 A	1.81 mOhm	DPAK (4 Leads + Tab) TO-252-5 TO-252AD	125 °C	Surface Mount	1.18 V	6 mA	80 dB	Positive	Over Current Over Temperature
ON Semiconductor FAN1581D15X	1	7 V	1.5 V	TO-252-5	5 A	1.81 mOhm	DPAK (4 Leads + Tab) TO-252-5 TO-252AD	125 °C	Surface Mount	1.18 V	6 mA	80 dB	Positive	Over Current Over Temperature
ON Semiconductor FAN1581T25	1	7 V	2.5 V	TO-220-5	5 A	1.81 mOhm	TO-220-5	125 °C	Through Hole	1.18 V	6 mA	80 dB	Positive	Over Current Over Temperature
ON Semiconductor FAN1581D15X	1	7 V	1.5 V	TO-252-5	5 A	1.81 mOhm	DPAK (4 Leads + Tab) TO-252-5 TO-252AD	125 °C	Surface Mount	1.18 V	6 mA	80 dB	Positive	Over Current Over Temperature
ON Semiconductor FAN1581D25X	1	7 V	2.5 V	TO-252-5	5 A	1.81 mOhm	DPAK (4 Leads + Tab) TO-252-5 TO-252AD	125 °C	Surface Mount	1.18 V	6 mA	80 dB	Positive	Over Current Over Temperature
ON Semiconductor FAN1581M25X	1	7 V	2.5 V	TO-263-5	5 A	1.81 mOhm	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	125 °C	Surface Mount	1.18 V	6 mA	80 dB	Positive	Over Current Over Temperature
ON Semiconductor FAN1581M12X	1	7 V	1.2 V	TO-263-5	5 A	1.81 mOhm	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	125 °C	Surface Mount	1.18 V	6 mA	80 dB	Positive	Over Current Over Temperature
ON Semiconductor FAN1581T15	1	7 V	1.5 V	TO-220-5	5 A	1.81 mOhm	TO-220-5	125 °C	Through Hole	1.18 V	6 mA	80 dB	Positive	Over Current Over Temperature
