Z-PACK HS3 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

ZP HS3 DB 10R REC 050P LT PD P

Part	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Voltage Rating	Number of Positions Loaded	Connector Type	Number of Positions	Connector Usage	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Number of Columns	Termination	Pitch	Pitch	Mounting Type	Number of Rows	Contact Finish

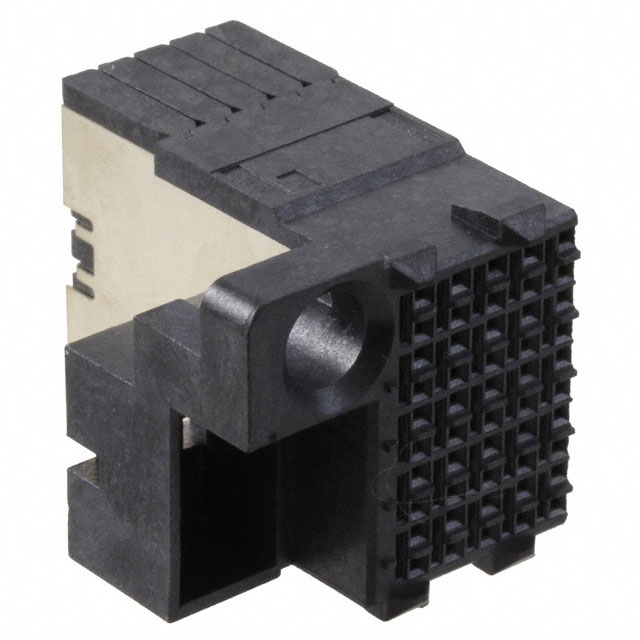

TE Connectivity AMP Connectors 5120795-1	1.15 A	105 ░C	-65 ░C	UL94 V-0	250 V	All	Receptacle Female Sockets	50	Backplane	Dual Beam Left Side	30 Áin	0.76 Ám	5	Press-Fit	2.5 mm	0.098 in	Right Angle Through Hole	10	Gold
TE Connectivity AMP Connectors 5120787-1	1.15 A	105 ░C	-65 ░C	UL94 V-0	250 V	All	Receptacle Female Sockets	30	Backplane		30 Áin	0.76 Ám	5	Press-Fit	2.5 mm	0.098 in	Right Angle Through Hole	6	Gold
TE Connectivity AMP Connectors 5120672-1						All	Header Male Pins and Blades	50	Backplane	Dual Beam Left Side	30 Áin	0.76 Ám	5	Press-Fit	2.5 mm	0.098 in	Through Hole	10	Gold
TE Connectivity AMP Connectors 5120658-1						All	Header Male Pins and Blades	100	Backplane		30 Áin	0.76 Ám	10	Press-Fit	2.5 mm	0.098 in	Through Hole	10	Gold
TE Connectivity AMP Connectors 5120662-1	1.15 A	105 ░C	-65 ░C	UL94 V-0	250 V	All	Header Male Pins and Blades	50	Backplane	Dual Beam Left Side	30 Áin	0.76 Ám	5	Press-Fit	2.5 mm	0.098 in	Through Hole	10	Gold
TE Connectivity AMP Connectors 5120658-2						All	Header Male Pins and Blades	100	Backplane		30 Áin	0.76 Ám	10	Press-Fit	2.5 mm	0.098 in	Through Hole	10	Gold
TE Connectivity AMP Connectors 5120839-1	1.15 A	105 ░C	-65 ░C	UL94 V-0	250 V	All	Header Male Pins and Blades	30	Backplane	Dual Beam Right Side	30 Áin	0.76 Ám	5	Press-Fit	2.5 mm	0.098 in	Through Hole	6	Gold
TE Connectivity AMP Connectors 5120792-1						All	Receptacle Female Sockets	50	Backplane	Dual Beam Right Side	30 Áin	0.76 Ám	5	Press-Fit	2.5 mm	0.098 in	Right Angle Through Hole	10	Gold
TE Connectivity AMP Connectors 5120754-1	1.15 A	105 ░C	-65 ░C	UL94 V-0	250 V	All	Header Male Pins and Blades	50	Backplane	Dual Beam Left Side	30 Áin	0.76 Ám	5	Press-Fit	2.5 mm	0.098 in	Through Hole	10	Gold
TE Connectivity AMP Connectors 5120753-1	1.15 A	105 ░C	-65 ░C	UL94 V-0	250 V	All	Header Male Pins and Blades	100	Backplane		30 Áin	0.76 Ám	10	Press-Fit	2.5 mm	0.098 in	Through Hole	10	Gold
