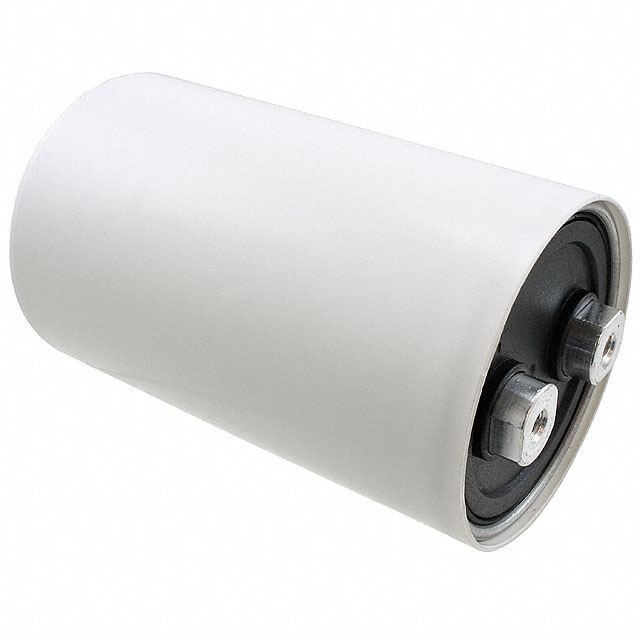

PEH200V Series
Manufacturer: KEMET
Beta
⌘K
CAP ALUM 1500UF 400V SCREW CHAS
| Part | Capacitance | Tolerance [Min] | Tolerance [Max] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Lifetime @ Temp. | Size / Dimension [diameter] | Size / Dimension [diameter] | Ripple Current @ Low Frequency | ESR (Equivalent Series Resistance) | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Polarization | Lead Spacing | Lead Spacing | Mounting Type | Impedance | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 1.5 mF | -10 % | 30 % | 4.213 in | 107 mm | 15000 Hrs | 66.6 mm | 2.622 in | 9.1 A | 53 mOhm | Radial Can - Screw Terminals | 85 °C | -40 C | General Purpose | Polar | 1.122 in | 28.5 mm | Chassis Mount | 30 mOhms | 400 V |
