DCCM37 Series

Manufacturer: Cinch Connectivity Solutions

Catalog

CONN MICRO-D RCPT 37P VERT SLDR

Part	Dielectric Material	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Current Rating (Amps)	Mounting Type	Termination	Contact Type	Flange Feature	Shell Material, Finish	Features	Number of Positions	Shell Size, Connector Layout [y]	Shell Size, Connector Layout [x]	Material Flammability Rating	Connector Style	Number of Rows [custom]	Connector Type	1st Connector	Type	2nd Connector	Color	Length	Length	Backset Spacing	Backset Spacing	Length [x]	Length [x]
Cinch Connectivity Solutions DCCM37SBSP	Diallyl Phthalate (DAP) Glass Filled	Copper Alloy	-55 C	135 °C	50 µin	1.27 µm	Gold	3 A	Through Hole	Solder	Signal	Female Screwlock Mating Side	Aluminum Alloy Yellow Chromate Plated Cadmium	Shielded	37	0.043 in	0.05 in	UL94 V-0	D-Type Micro-D	2	Receptacle Female Sockets

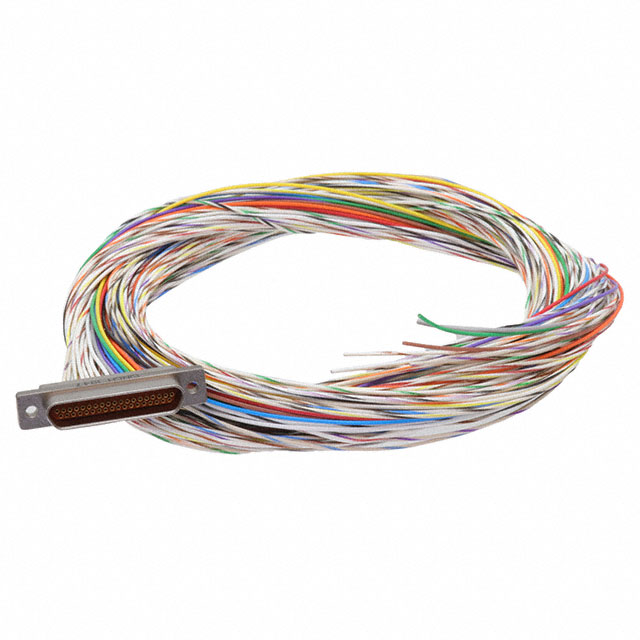

Cinch Connectivity Solutions DCCM37S6E5-36.0BN					50 µin	1.27 µm	Gold								37							Receptacle Female Sockets	D-Type Micro-D	Individual Wire Leads	Individual Multiple	91.44 cm	3 ft

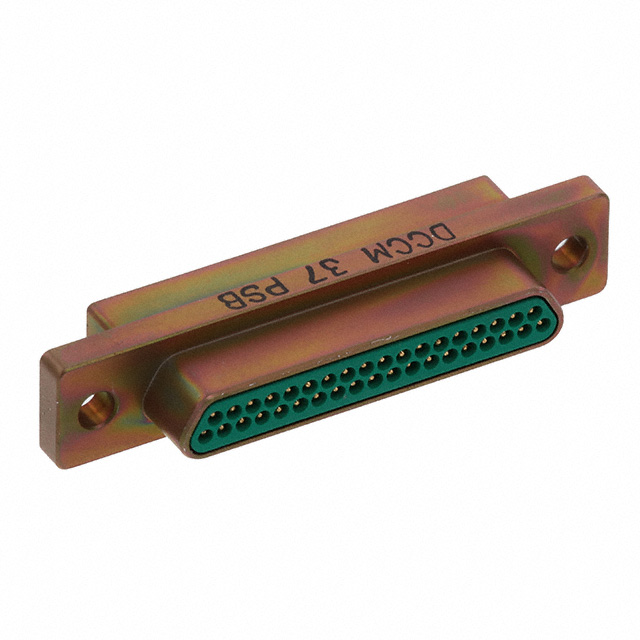

Cinch Connectivity Solutions DCCM37PSB	Diallyl Phthalate (DAP) Glass Filled	Copper Alloy	-55 C	135 °C	50 µin	1.27 µm	Gold	3 A	Panel Mount		Signal		Aluminum Alloy Yellow Chromate Plated Cadmium	Shielded	37	0.043 in	0.05 in	UL94 V-0	D-Type Micro-D	2	Plug Male Pins

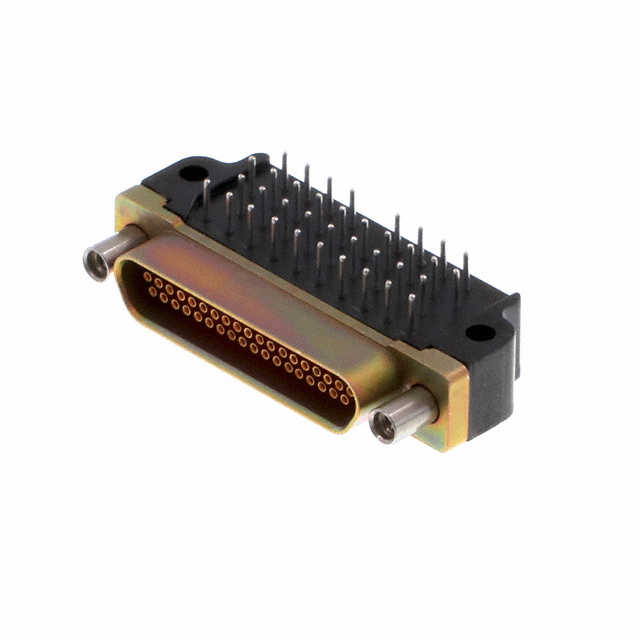

Cinch Connectivity Solutions DCCM37SCBRPN	Diallyl Phthalate (DAP) Glass Filled	Copper Alloy	-55 C	135 °C	50 µin	1.27 µm	Gold	3 A	Right Angle Through Hole	Solder	Signal	Female Screwlock Mating Side	Aluminum Alloy Electroless Nickel Plated	Shielded	37	0.043 in	0.05 in	UL94 V-0	D-Type Micro-D	2	Receptacle Female Sockets							0.13 in	3.3 mm

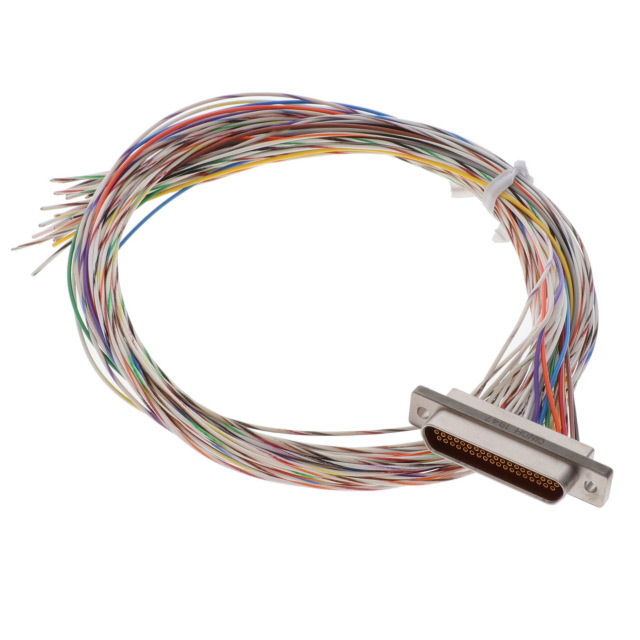

Cinch Connectivity Solutions DCCM37S6E5-18.0B					50 µin	1.27 µm	Gold								37							Receptacle Female Sockets	D-Type Micro-D	Individual Wire Leads	Individual Multiple					457.2 mm	1.5 ft

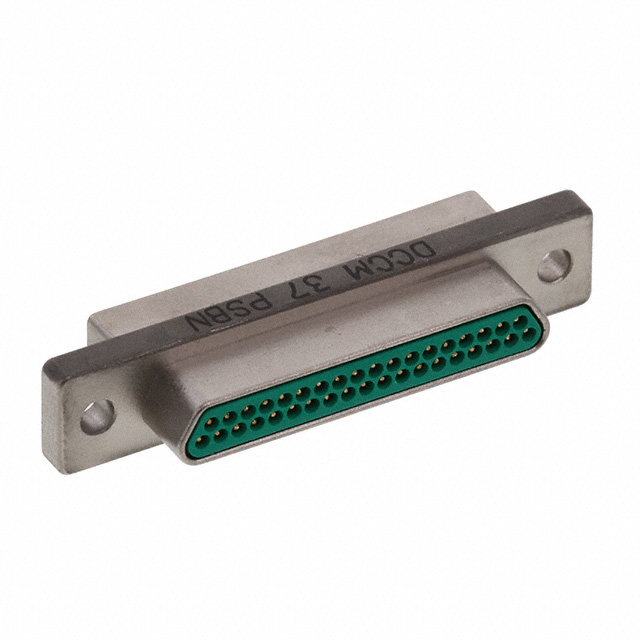

Cinch Connectivity Solutions DCCM37PSBN	Diallyl Phthalate (DAP) Glass Filled	Copper Alloy	-55 C	135 °C	50 µin	1.27 µm	Gold	3 A	Panel Mount		Signal		Aluminum Alloy Electroless Nickel Plated	Shielded	37	0.043 in	0.05 in	UL94 V-0	D-Type Micro-D	2	Plug Male Pins
Cinch Connectivity Solutions DCCM37S6E5-18.0BN					50 µin	1.27 µm	Gold								37							Receptacle Female Sockets	D-Type Micro-D	Individual Wire Leads	Individual Multiple					457.2 mm	1.5 ft
Cinch Connectivity Solutions DCCM37P6E5-18.0BN					50 µin	1.27 µm	Gold								37							Male Pins Plug	D-Type Micro-D	Individual Wire Leads	Individual Multiple					457.2 mm	1.5 ft

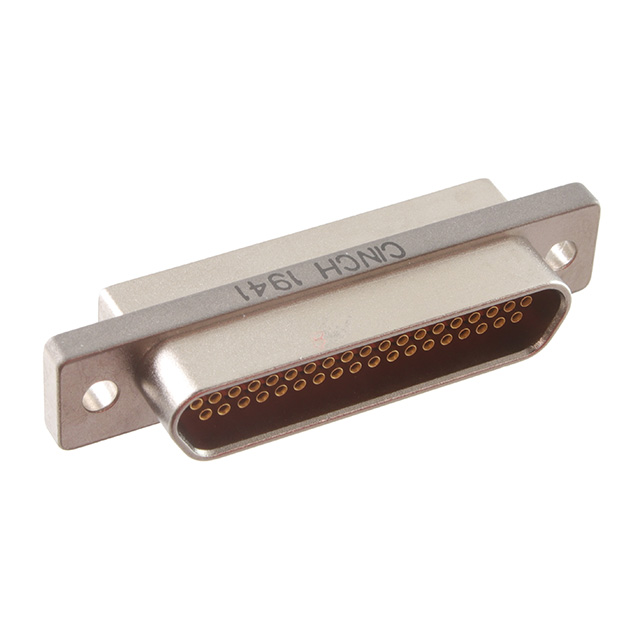

Cinch Connectivity Solutions DCCM37SSBN	Diallyl Phthalate (DAP) Glass Filled	Copper Alloy	-55 C	135 °C	50 µin	1.27 µm	Gold	3 A	Panel Mount		Signal		Aluminum Alloy Electroless Nickel Plated	Shielded	37	0.043 in	0.05 in	UL94 V-0	D-Type Micro-D	2	Receptacle Female Sockets

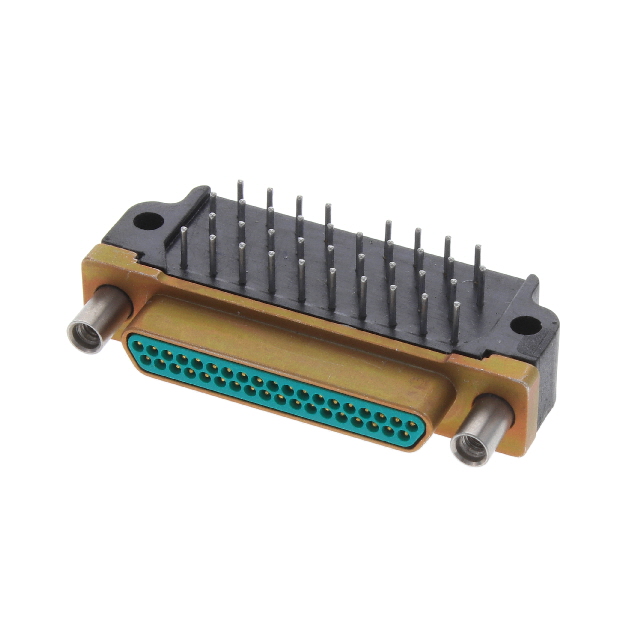

Cinch Connectivity Solutions DCCM37PCBRPN	Diallyl Phthalate (DAP) Glass Filled	Copper Alloy	-55 C	135 °C	50 µin	1.27 µm	Gold	3 A	Right Angle Through Hole	Solder	Signal	Female Screwlock Mating Side	Aluminum Alloy Electroless Nickel Plated	Shielded	37	0.043 in	0.05 in	UL94 V-0	D-Type Micro-D	2	Plug Male Pins							0.13 in	3.3 mm
