74001 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

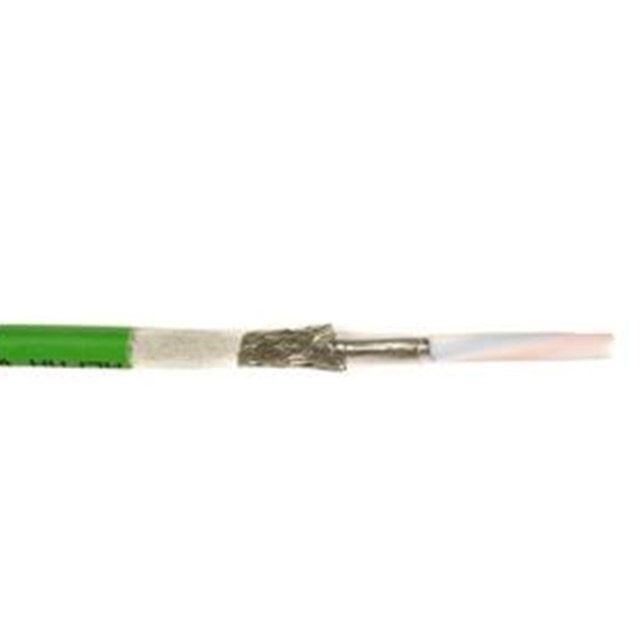

MULTICONDUCTOR CABLE, ETHERNET, CONTINUOUS FLEX, CAT5E, SHIELDED, 4 CONDUCTOR, 22 AWG, 500 FT
| Part | Shield Coverage | Shield Material | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Number of Conductors | Cable Type | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Material | Features | Ratings | Jacket (Insulation) Material | Jacket Color | Conductor Insulation | Conductor Insulation | Shield Type | Voltage | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 85 % 100 % | Aluminum Copper Tinned | 3.05 m 15.24 m 152.4 m | 10 ft 50 ft 500 ft | 0.256 in | 6.5 mm | 0.031 in | 0.787 mm | 34 AWG | 19 | Industrial Network | 4 | Multi-Conductor | 22 AWG | 80 °C | -40 C | Copper Tinned | Oil Resistant | UL Style 20549 | Thermoplastic Polyurethane (TPU) | Green | Polyolefin | PO | Braid Foil | 300 VDC | 100 ft | 30.5 m |
