KMDGX-4S Series
Manufacturer: Kycon, Inc.
Beta
⌘K
CONN RCPT FMALE MINI DIN 4P SLDR
| Part | Orientation | Features | Voltage Rating | Contact Material | Contact Finish - Mating | Fastening Type | Number of Positions | Shell Size - Insert | Current Rating (Amps) | Contact Finish Thickness - Mating | Connector Type | Shielding | Insert Material | Shell Material | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Mounting Type | Color | Primary Material | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

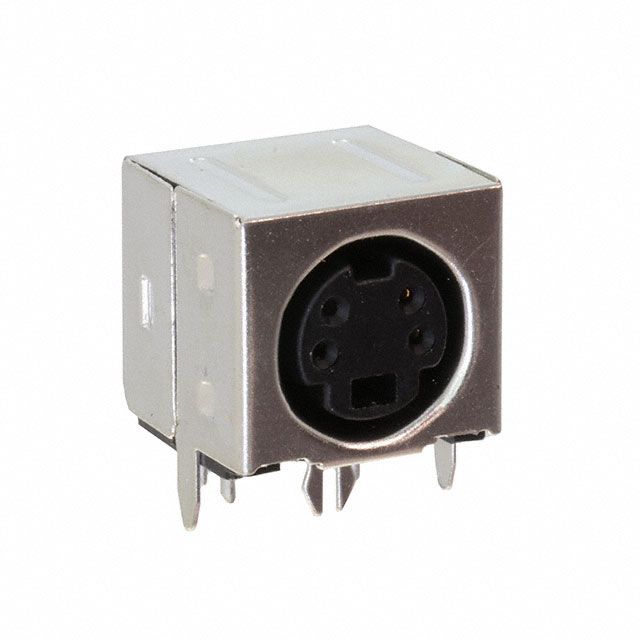

Kycon, Inc. | Keyed | Board Lock | 12 VDC | Copper Alloy | Gold | Push-Pull | 4 | Mini DIN | 2 A | Flash | Receptacle Female Sockets | Unshielded | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) | Audio Video | -25 °C | 80 °C | Solder | Right Angle Through Hole | Black Silver | Plastic | |

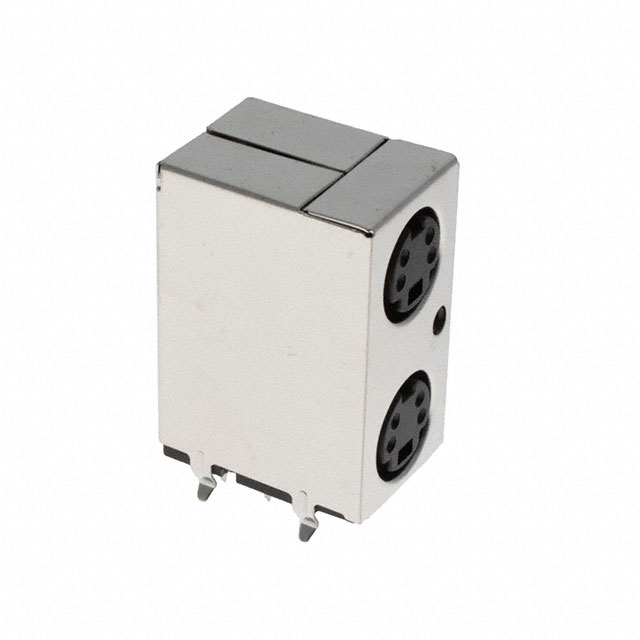

 Kycon, Inc. | Keyed | Board Lock Stacked 2 | 12 VDC | Copper Alloy | Gold | Push-Pull | 4 | Mini DIN | 2 A | Flash | Receptacle Female Sockets | Shielded | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) | Audio Video | -25 °C | 80 °C | Solder | Right Angle Through Hole | Black Silver | Plastic | UL94 V-0 |
 Kycon, Inc. | Keyed | Board Guide Board Lock | 12 VDC | Copper Alloy | Gold | Push-Pull | 4 | Mini DIN | 2 A | Flash | Receptacle Female Sockets | Shielded | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) | Audio Video | -25 °C | 80 °C | Solder | Right Angle Through Hole | Black Silver | Plastic |
