FOD8160 Series

High Noise Immunity, 3.3 V / 5 V, 10 Mbit/sec, Logic Gate Optocoupler

Catalog

High Noise Immunity, 3.3 V / 5 V, 10 Mbit/sec, Logic Gate Optocoupler

Part	Common Mode Transient Immunity (Min) [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Voltage - Forward (Vf) (Typ)	Number of Channels	Output Type	Current - Output / Channel	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case [custom]	Package / Case [custom]	Package / Case	Package / Case [custom]	Current - DC Forward (If) (Max) [Max]	Inputs - Side 1/Side 2 [custom]	Inputs - Side 1/Side 2 [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Input Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Data Rate	Voltage - Output (Max) [Max]	Vce Saturation (Max) [Max]	Current Transfer Ratio (Min) [Min]	Current Transfer Ratio (Max)	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current - DC Forward (If) (Max)
ON Semiconductor FOD8160V	20 kV/µs	5.5 V	3 V	Surface Mount	1.45 V	1	Open Collector Schottky Clamped	50 mA	5-SOP	100 °C	-40 °C	0.362 in	9.2 mm	6-SOIC	5	25 mA	0	1	80 ns	90 ns	DC	22 ns	9 ns	10 Mbps

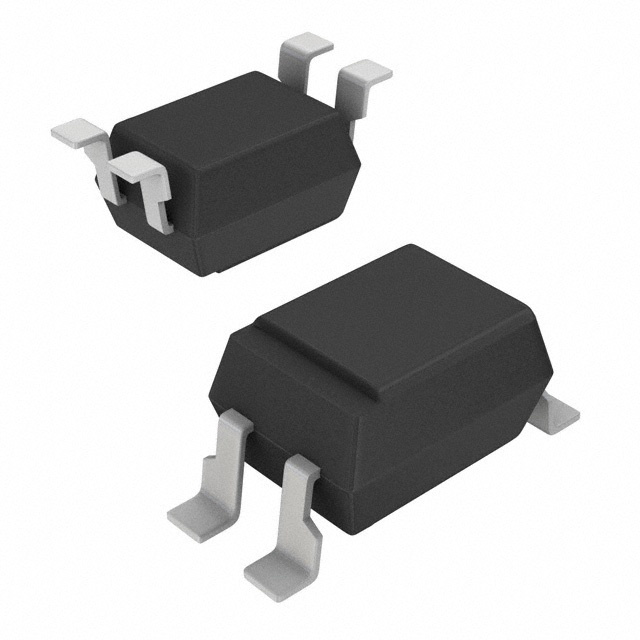

ON Semiconductor FOD816SD				Surface Mount		1	Darlington	80 mA	4-SMD	100 °C	-30 ░C			4-SMD Gull Wing											35 V	1 V	600 %	7500 %	60 µs	53 µs	50 mA
ON Semiconductor FOD816300				Through Hole		1	Darlington	80 mA	4-DIP	100 °C	-30 ░C			4-DIP (0.300" 7.62mm)		50 mA													60 µs	53 µs
ON Semiconductor FOD8160	20 kV/µs	5.5 V	3 V	Surface Mount	1.45 V	1	Open Collector Schottky Clamped	50 mA	5-SOP	100 °C	-40 °C	0.362 in	9.2 mm	6-SOIC	5	25 mA	0	1	80 ns	90 ns	DC	22 ns	9 ns	10 Mbps
ON Semiconductor FOD816300W				Through Hole		1	Darlington	80 mA	4-DIP	100 °C	-30 ░C			4-DIP		50 mA													60 µs	53 µs
ON Semiconductor FOD816				Through Hole		1	Darlington	80 mA	4-DIP	100 °C	-30 ░C			4-DIP (0.300" 7.62mm)											35 V	1 V	600 %	7500 %	60 µs	53 µs	50 mA

Catalog

High Noise Immunity, 3.3 V / 5 V, 10 Mbit/sec, Logic Gate Optocoupler

Key Features

• Optoplanar ®packaging technology allows more than 10 mm creepage and clearance distance, and 0.5 mm insulation distance to achieve reliable and high voltage insulation

• High noise immunity characterized by common mode transient immunity (CMTI)

• 20 kV/µs Minimum CMTI

• Specifications guaranteed over 3 V to 5.5 V supply voltage and -40 °C to 100 °C extended industrial temperature range

• High Speed, 10 Mbit/sec Data Rate (NRZ)

• Safety and regulatory approvals

• UL1577, 5,000 VACRMSfor 1 minute

• DIN-EN/IEC60747-5-5, 1,414 V peak working insulation voltage (pending approval)

Description

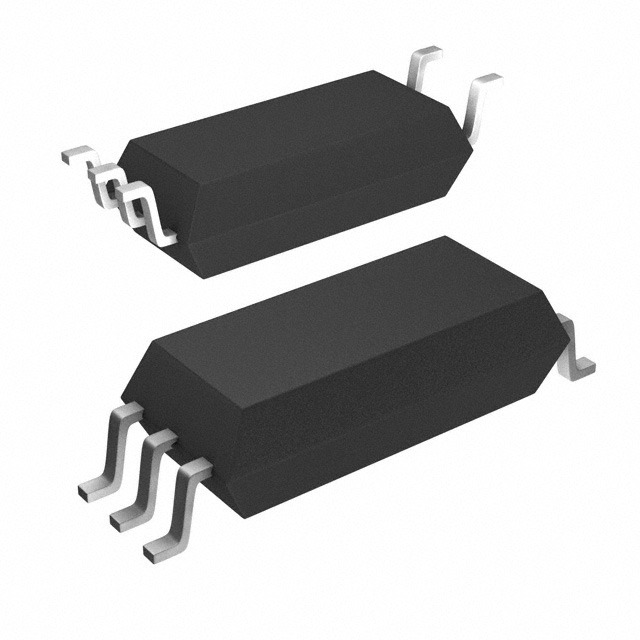

The FOD8160 is a 3.3 V / 5 V high-speed logic gate optocoupler with open collector output, which supports isolated communications to allow digital signals to communicate between systems without conducting ground loops or hazardous voltages. It utilizes ON Semiconductor’s prioprietary Optoplanar® coplanar packaging technology and optimized IC design to achieve high noise immunity, characterized by high common mode rejection specifications.The FOD8160, packaged in a wide-body SOP 5-Pin package, consists of an aluminium gallium arsenide (AlGaAs) LED and an integrated high-speed photodetector. The output of the detector IC is an open collector Schottky-clamped transistor. The electrical and switching characteristics are guaranteed over the extended industrial temperature range of -40°C to 100°C and a VCCrange of 3 V to 5.5 V.
