SM16B-SH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

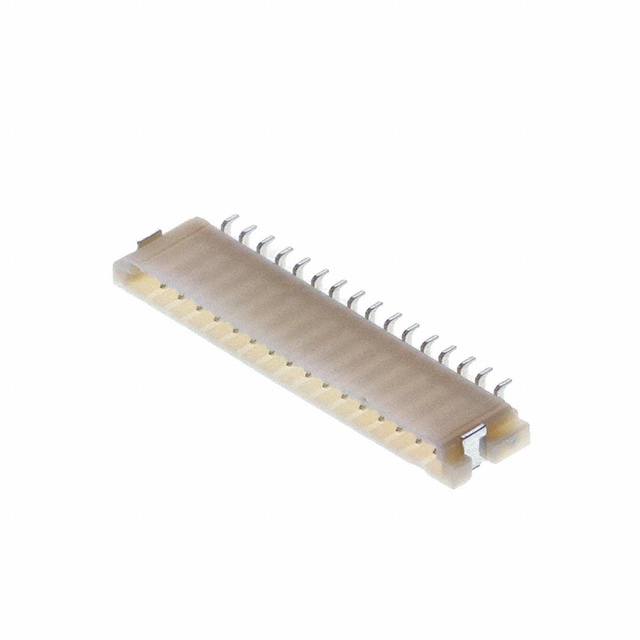

CONN HEADER SMD R/A 16POS 1MM
| Part | Insulation Material | Voltage Rating | Number of Positions | Material Flammability Rating | Shrouding | Termination | Style | Mounting Type | Insulation Color | Contact Shape | Contact Finish - Post | Contact Type | Features | Operating Temperature [Max] | Operating Temperature [Min] | Pitch - Mating | Pitch - Mating | Connector Type | Number of Rows | Number of Positions Loaded | Insulation Height [z] | Insulation Height [z] | Fastening Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Nylon Polyamide (PA) | 50 V | 16 | UL94 V-0 | Shrouded - 4 Wall | Solder | Board to Cable/Wire | Right Angle Surface Mount | Natural | Rectangular | Tin | Outer Shroud Contact | Solder Retention | 85 °C | -25 °C | 1 mm | 0.039 in | Header | 1 | All | 0.069 in | 1.75 mm | Push-Pull | Phosphor Bronze |
