SMDTC0 Series
Manufacturer: WIMA
Catalog
CAP FILM 1UF 10% 40VAC 4030
...
| Part | Capacitance | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - AC | Mounting Type | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Applications | Voltage Rating - DC | Dielectric Material | Termination | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Tolerance | Package / Case | Size / Dimension [x] | Size / Dimension [y] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 µF | 4030 (10276 Metric) | -55 C | 125 °C | 40 V | Surface Mount | 0.209 " | 5.3 mm | DC Filtering DC Link | 63 VDC | Metallized Polyester Polyethylene Terephthalate (PET) | Solder Pads | 10.2 mm | 7.6 mm | 0.299 " | 0.402 in | 10 % | |||||||
0.47 µF | 2220 | -55 C | 125 °C | 40 V | Surface Mount | DC Filtering DC Link | 63 VDC | Metallized Polyester Polyethylene Terephthalate (PET) | Solder Pads | 5.7 mm | 5.1 mm | 0.201 " | 0.224 " | 20 % | 5750 Metric | ||||||||

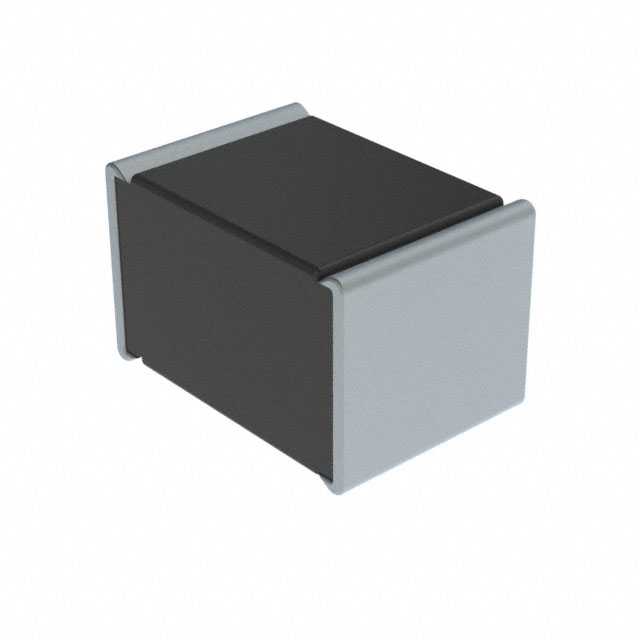

0.22 µF | 1812 (4532 Metric) | -55 C | 125 °C | 40 V | Surface Mount | DC Filtering DC Link | 63 VDC | Metallized Polyester Polyethylene Terephthalate (PET) | Solder Pads | 0.189 in | 0.13 in | 20 % | 4.8 mm | 3.3 mm | 0.13 in | 3.3 mm | |||||||

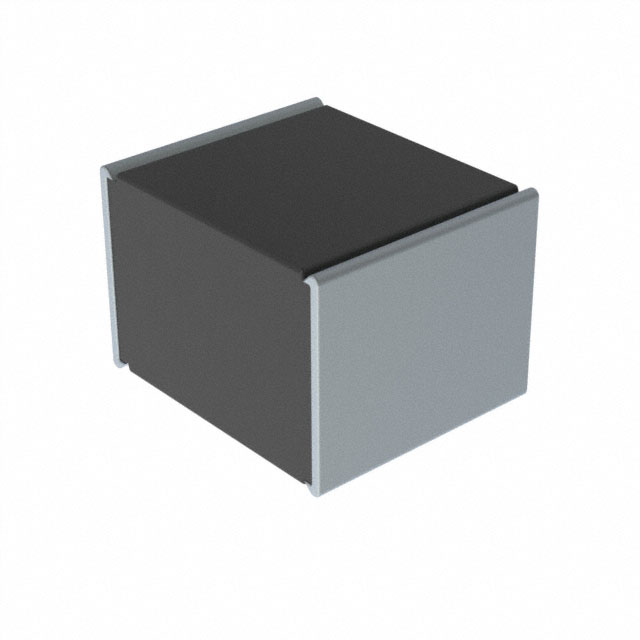

0.33 µF | 2824 | -55 C | 125 °C | 40 V | Surface Mount | DC Filtering DC Link | 63 VDC | Metallized Polyester Polyethylene Terephthalate (PET) | Solder Pads | 7.2 mm | 6.1 mm | 0.24 " | 0.283 " | 20 % | 7260 Metric | 0.13 in | 3.3 mm | ||||||
0.068 µF | 1812 (4532 Metric) | -55 C | 125 °C | 40 V | Surface Mount | DC Filtering DC Link | 63 VDC | Metallized Polyester Polyethylene Terephthalate (PET) | Solder Pads | 0.189 in | 0.13 in | 10 % | 4.8 mm | 3.3 mm | 0.13 in | 3.3 mm | |||||||

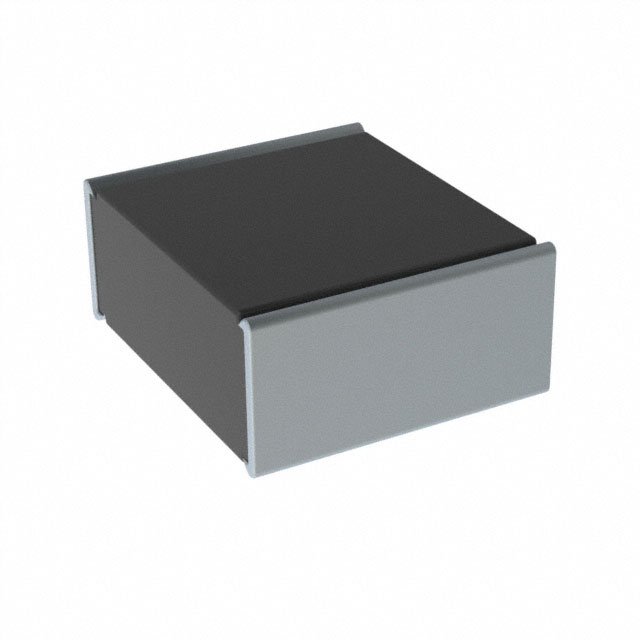

15000 pF | 2824 | -55 C | 125 °C | 40 V | Surface Mount | DC Filtering DC Link | 63 VDC | Metallized Polyester Polyethylene Terephthalate (PET) | Solder Pads | 7.2 mm | 6.1 mm | 0.24 " | 0.283 " | 20 % | 7260 Metric | 0.13 in | 3.3 mm | ||||||
100000 pF | 2824 | -55 C | 125 °C | 40 V | Surface Mount | DC Filtering DC Link | 63 VDC | Metallized Polyester Polyethylene Terephthalate (PET) | Solder Pads | 7.2 mm | 6.1 mm | 0.24 " | 0.283 " | 10 % | 7260 Metric | 0.13 in | 3.3 mm | ||||||
0.47 µF | 2220 | -55 C | 125 °C | 40 V | Surface Mount | DC Filtering DC Link | 63 VDC | Metallized Polyester Polyethylene Terephthalate (PET) | Solder Pads | 5.7 mm | 5.1 mm | 0.201 " | 0.224 " | 20 % | 5750 Metric | 0.189 " | 4.8 mm | ||||||
15000 pF | 1812 (4532 Metric) | -55 C | 125 °C | 40 V | Surface Mount | DC Filtering DC Link | 63 VDC | Metallized Polyester Polyethylene Terephthalate (PET) | Solder Pads | 0.189 in | 0.13 in | 20 % | 4.8 mm | 3.3 mm | 0.13 in | 3.3 mm | |||||||
1500 nF | 2824 | -55 C | 125 °C | 40 V | Surface Mount | 0.209 " | 5.3 mm | DC Filtering DC Link | 63 VDC | Metallized Polyester Polyethylene Terephthalate (PET) | Solder Pads | 7.2 mm | 6.1 mm | 0.24 " | 0.283 " | 10 % | 7260 Metric |
