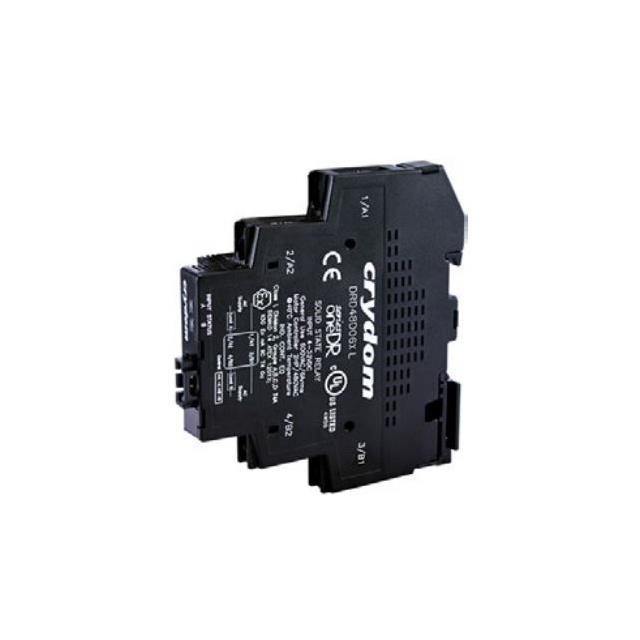

DR10D06 Series
Manufacturer: Sensata-Crydom
Beta
⌘K
SSR RELAY SPST-NO 6A 1-100V
| Part | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Load [Min] | Voltage - Load [Max] | Termination Style | Output Type | Approval Agency | On-State Resistance (Max) [Max] | Package / Case | Voltage - Input [Max] | Voltage - Input [Min] | Load Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sensata-Crydom | DIN Rail | -20 ░C | 40 °C | 1 V | 100 V | Screw Terminal | DC | CE cULus | 100 mOhm | Module | 32 VDC | 4 V | 6 A |
 Sensata-Crydom | DIN Rail | -20 ░C | 40 °C | 1 V | 100 V | Screw Terminal | DC | CE cULus | 100 mOhm | Module | 32 VDC | 4 V | 6 A |
