EX-L221 Series

Catalog

SENSOR REFLECTIVE 300MM NPN OPEN

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Adjustment Type	Cable Length	Cable Length	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Ingress Protection	Response Time	Sensing Distance	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Method	Connection Method	Light Source	Output Configuration
Panasonic Industrial Automation Sales EX-L221-C5	12 V	24 V	Adjustable	78.74 in	2 m	55 °C	-10 °C	IP67	500 µs	ADJ	300 mm	45 mm	1.77 in	11.811 in	Reflective	Cable	Red Laser Diode (650nm)	NPN - Open Collector

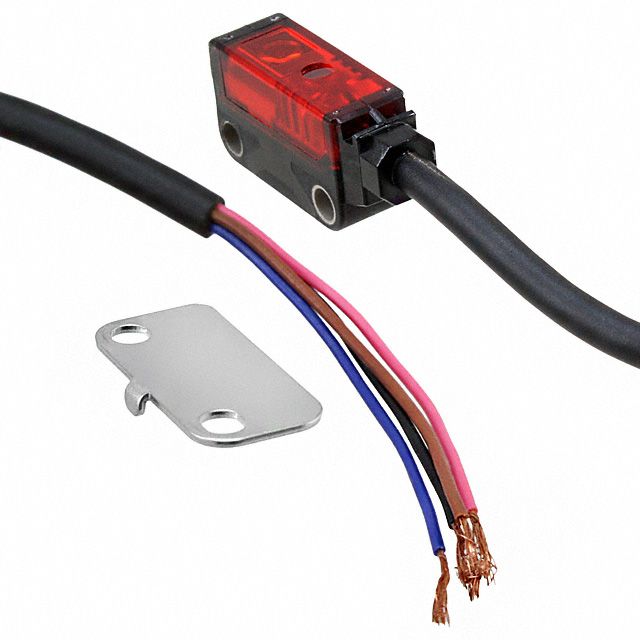

Panasonic Industrial Automation Sales EX-L221-P	12 V	24 V	Adjustable	78.74 in	2 m	55 °C	-10 °C	IP67	500 µs	ADJ	300 mm	45 mm	1.77 in	11.811 in	Reflective	Cable	Red Laser Diode (650nm)	PNP - Open Collector
Panasonic Industrial Automation Sales EX-L221-J	12 V	24 V	Adjustable	9.13 in	232 mm	55 °C	-10 °C	IP67	500 µs	ADJ	300 mm	45 mm	1.77 in	11.811 in	Reflective	Cable	Red Laser Diode (650nm)	NPN - Open Collector

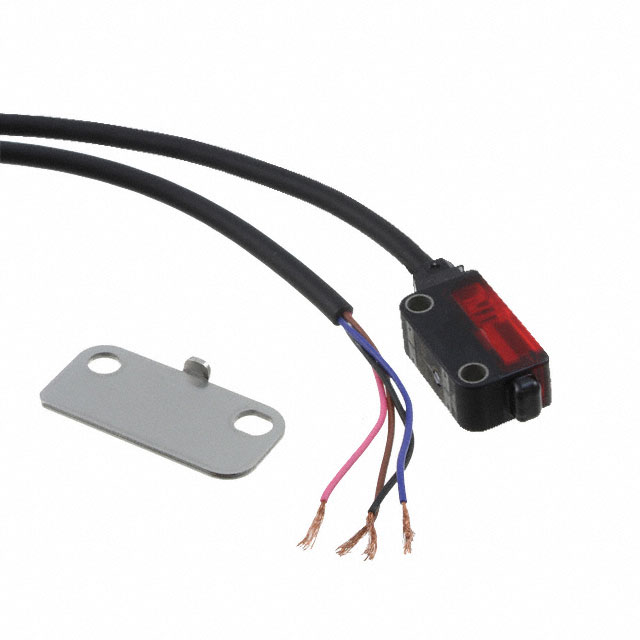

Panasonic Industrial Automation Sales EX-L221-P-C5	12 V	24 V	Adjustable	78.74 in	2 m	55 °C	-10 °C	IP67	500 µs	ADJ	300 mm	45 mm	1.77 in	11.811 in	Reflective	Cable	Red Laser Diode (650nm)	PNP - Open Collector
