M12 A-Code Series

Catalog

SENSOR CABLE, M12 RECEPTACLE, FREE END, 5 POSITIONS, 500 MM, 19.6 "

Part	1st Connector Gender	Cable Type	1st Connector Shell Size - Insert [custom]	Ingress Protection	1st Connector Type	1st Connector Orientation	Shielding	1st Connector Number of Positions	1st Connector Mounting Type	Color	1st Connector Number of Positions Loaded	Assembly Configuration	Usage	2nd Connector Type	Length	Length	Fastening Type	Material Flammability Rating	Number of Positions	Connector Type	Orientation	Contact Finish - Mating	Shell Size - Insert	Shell Finish	Features	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	Current Rating (Amps)	Shell Material	Mounting Type	Mounting Feature	Termination
Bel Fuse Inc. SS-12000-010	Male Pins	Individual	M12	IP67 - Dust Tight Waterproof	Receptacle	A	Unshielded	5	Panel Mount	Multiple	All	Standard	Industrial Environments	Wire Leads	1.64 ft	50 cm
Bel Fuse Inc. SS-12000-018				IP67 - Dust Tight Waterproof			Shielded			Silver							Threaded	UL94 V-0	5	Receptacle Male Pins	A	Gold	M12-5	Nickel	Backshell	85 °C	-20 ░C	Metal	6 mm	6.5 mm	0.256 in	0.236 in	4 A	Copper Alloy	Free Hanging (In-Line)

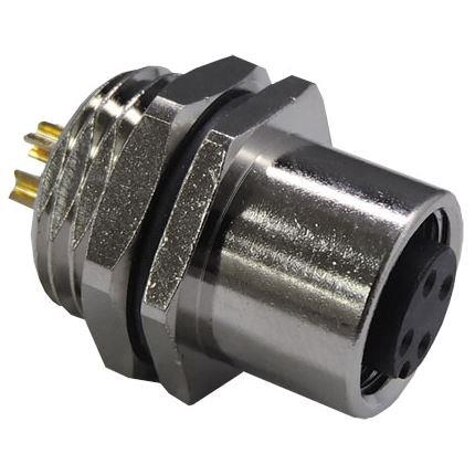

Bel Fuse Inc. SS-12000-005				IP67 - Dust Tight Waterproof			Shielded			Silver							Threaded	UL94 V-0	4	Receptacle Female Sockets	A	Gold	M12-4	Nickel		85 °C	-20 ░C	Metal					4 A	Copper Alloy	Panel Mount	Bulkhead - Rear Side Nut

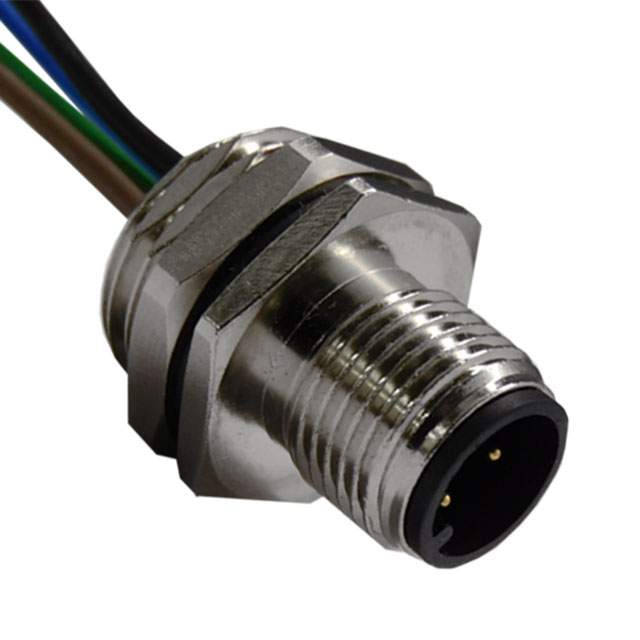

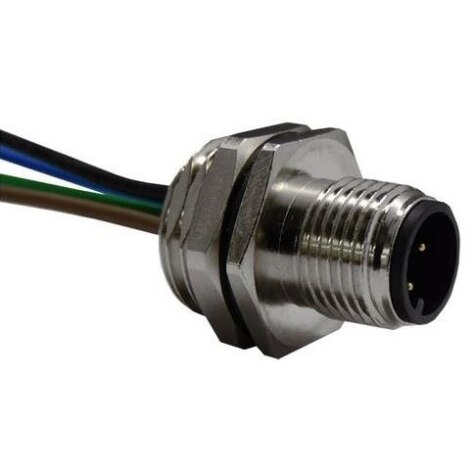

Bel Fuse Inc. SS-12000-009	Male Pins	Individual	M12	IP67 - Dust Tight Waterproof	Receptacle	A	Unshielded	4	Panel Mount	Multiple	All	Standard	Industrial Environments	Wire Leads	1.64 ft	50 cm

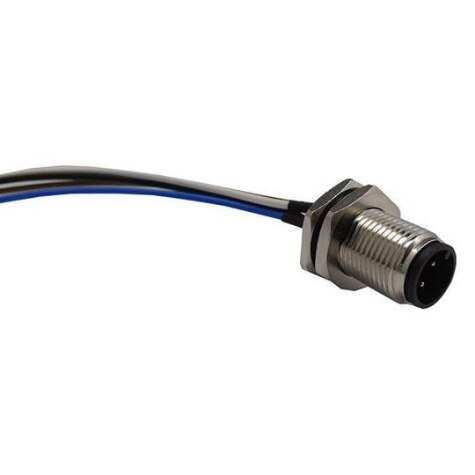

Bel Fuse Inc. SS-12000-011	Male Pins	Individual	M12	IP67 - Dust Tight Waterproof	Receptacle	A	Unshielded	4	Panel Mount	Multiple	All	Standard	Industrial Environments	Wire Leads	1.64 ft	50 cm

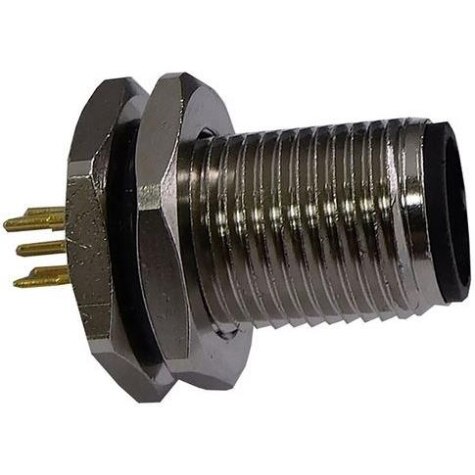

Bel Fuse Inc. SS-12000-004				IP67 - Dust Tight Waterproof			Shielded			Silver							Threaded	UL94 V-0	5	Receptacle Male Pins	A	Gold	M12-5	Nickel		85 °C	-20 ░C	Metal					4 A	Copper Alloy	Panel Mount Through Hole	Bulkhead - Front Side Nut	Solder
Bel Fuse Inc. SS-12000-012	Male Pins	Individual	M12	IP67 - Dust Tight Waterproof	Receptacle	A	Unshielded	5	Panel Mount	Multiple	All	Standard	Industrial Environments	Wire Leads	1.64 ft	50 cm
Bel Fuse Inc. SS-12000-019				IP67 - Dust Tight Waterproof			Shielded			Silver							Threaded	UL94 V-0	4	Plug Female Sockets	A	Gold	M12-4	Nickel	Backshell Coupling Nut	85 °C	-20 ░C	Metal	6 mm	6.5 mm	0.256 in	0.236 in	4 A	Copper Alloy	Free Hanging (In-Line)

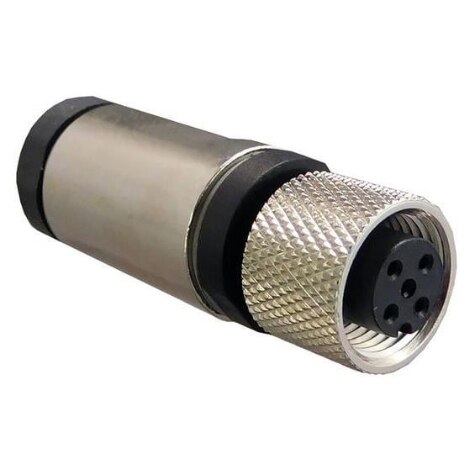

Bel Fuse Inc. SS-12000-020				IP67 - Dust Tight Waterproof			Shielded			Silver							Threaded	UL94 V-0	5	Plug Female Sockets	A	Gold	M12-5	Nickel	Backshell Coupling Nut	85 °C	-20 ░C	Metal	6 mm	6.5 mm	0.256 in	0.236 in	4 A	Copper Alloy	Free Hanging (In-Line)
