M2023LL Series

Catalog

SWITCH TOGGLE DPDT 6A 125V

Part	Actuator Material	Electrical Life	Voltage Rating - AC	Actuator Length [x]	Current Rating (Amps)	Illumination	Circuit	Mounting Type	Termination Style	Switch Function	Voltage Rating - DC	Bushing Thread	Features	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Ingress Protection

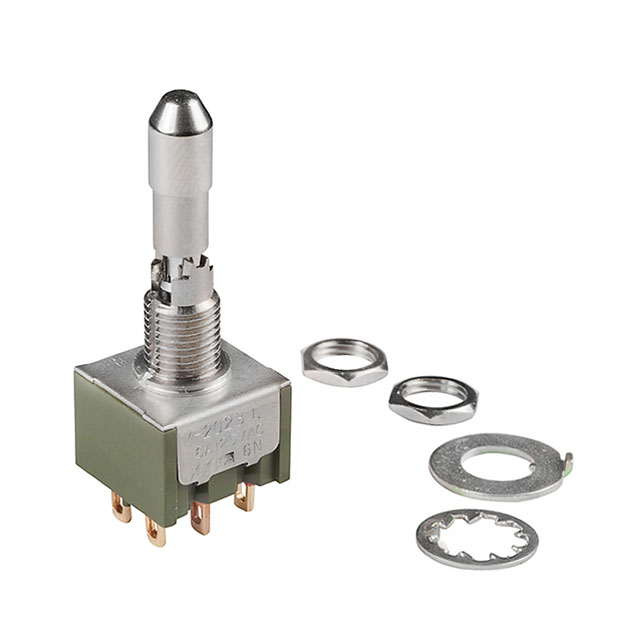

NKK Switches M2023LL1A01	Brass Chrome Plated	25000 Steps	125 V	16.5 mm	3 A 6 A	Non-Illuminated	DPDT	Panel Mount	Solder Lug	On-Off-On	30 V	1/4-40	Epoxy Sealed Terminals	6.5 mm	85 °C	-30 ░C	Locking Lever

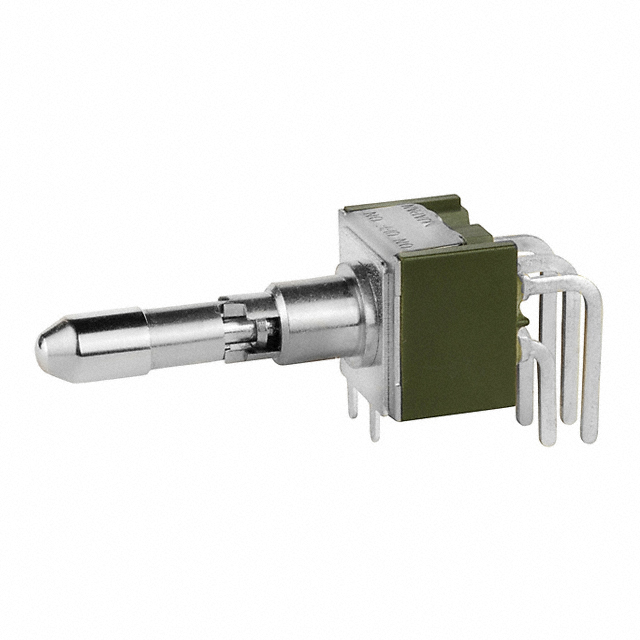

NKK Switches M2023LL2W30	Brass Chrome Plated	25000 Steps	125 V	16.5 mm	3 A 6 A	Non-Illuminated	DPDT	Right Angle Through Hole	PC Pin	On-Off-On	30 V	Unthreaded	Epoxy Sealed Terminals		85 °C	-30 ░C	Locking Lever

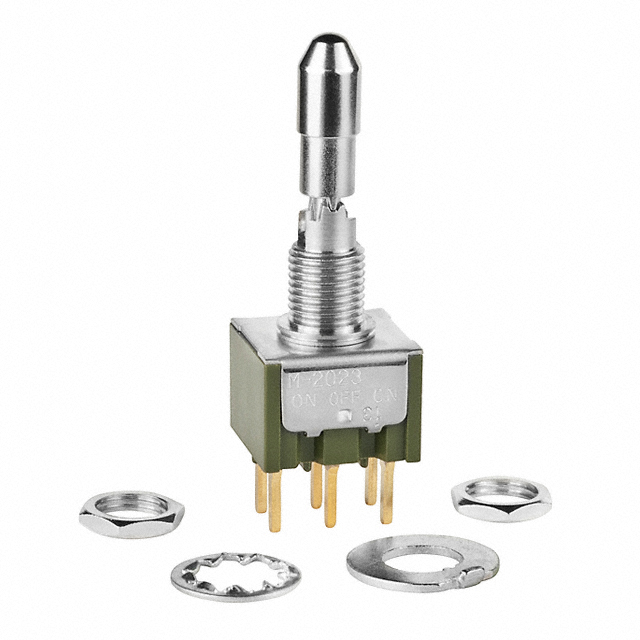

NKK Switches M2023LL1G03	Brass Chrome Plated	50000 Cycles	28 V	16.5 mm	0.4 VA	Non-Illuminated	DPDT	Panel Mount	PC Pin	On-Off-On	28 V	1/4-40	Epoxy Sealed Terminals	6.5 mm	85 °C	-30 ░C	Locking Lever
NKK Switches M2023LL1W01-A	Brass Chrome Plated	25000 Steps	125 V	16.5 mm	3 A 6 A	Non-Illuminated	DPDT	Panel Mount	Solder Lug	On-Off-On	30 V	1/4-40	Black Cap	6.5 mm	85 °C	-30 ░C	Locking Lever

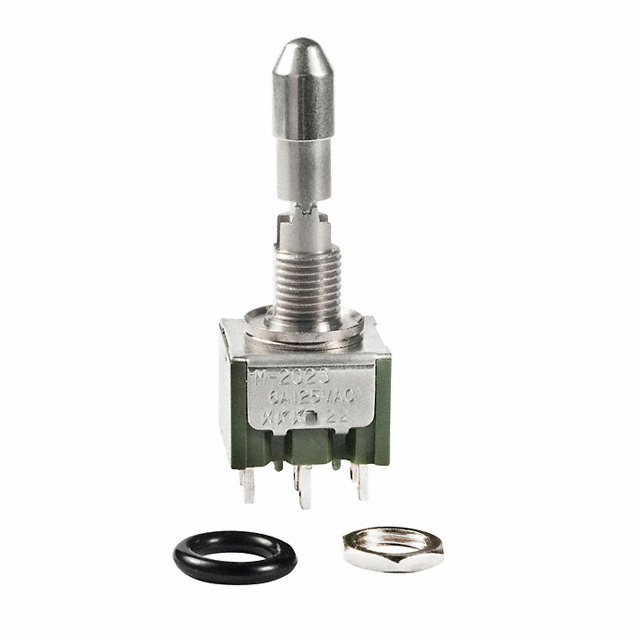

NKK Switches M2023LL3W01	Brass Chrome Plated	25000 Steps	125 V	16.5 mm	3 A 6 A	Non-Illuminated	DPDT	Panel Mount	Solder Lug	On-Off-On	30 V	1/4-40	Epoxy Sealed Terminals	6.5 mm	85 °C	-30 ░C	Locking Lever	IP67 - Dust Tight Waterproof

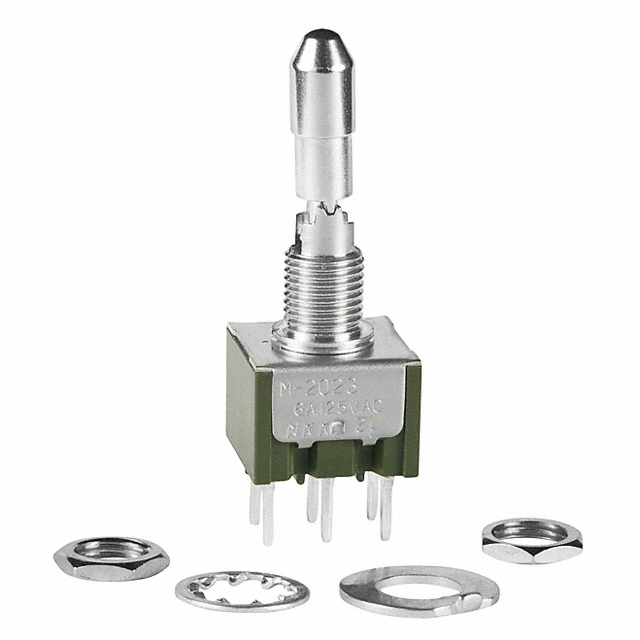

NKK Switches M2023LL1W03	Brass Chrome Plated	25000 Steps	125 V	16.5 mm	3 A 6 A	Non-Illuminated	DPDT	Panel Mount	PC Pin	On-Off-On	30 V	1/4-40	Epoxy Sealed Terminals	6.5 mm	85 °C	-30 ░C	Locking Lever
NKK Switches M2023LL1G01	Brass Chrome Plated	50000 Cycles	28 V	16.5 mm	0.4 VA	Non-Illuminated	DPDT	Panel Mount	Solder Lug	On-Off-On	28 V	1/4-40	Epoxy Sealed Terminals	6.5 mm	85 °C	-30 ░C	Locking Lever
