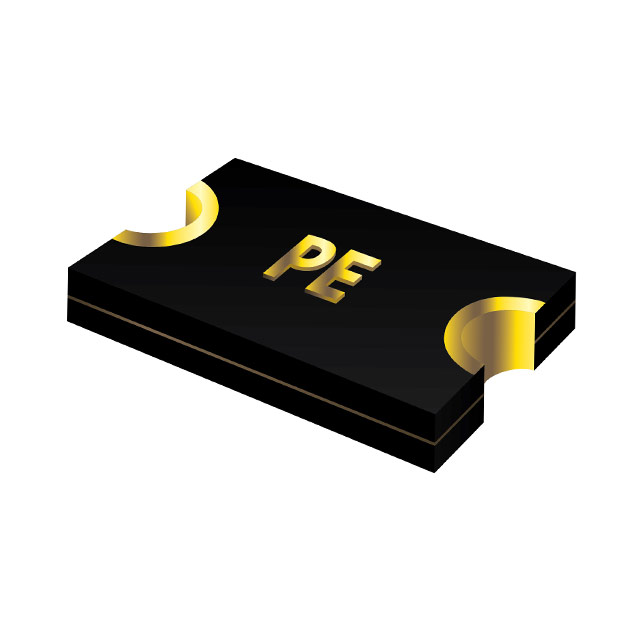

MF-PSML Series

Catalog

RESETTABLE FUSES - PPTC PTC 1.5A 6V SMD 0805 LOW-OHMIC

Part	Package / Case	Package / Case	Thickness (Max)	Thickness (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Resistance - Initial (Ri) (Min) [Min]	Voltage - Max [Max]	Approval Agency	Thickness (Max) [Max]	Current - Max [Max]	Current - Trip (It)	Time to Trip	Resistance - Post Trip (R1) (Max) [Max]	Current - Hold (Ih) (Max) [Max]
Bourns Inc. MF-PSML150-2	0805 Concave	2012	0.6 mm	0.024 in	0.085 in	0.053 "	2.15 mm	1.35 mm	Surface Mount	Polymeric	85 °C	-40 C	15 mOhms	6 V
Bourns Inc. MF-PSML300-2	0805 Concave	2012		0.032 "	0.085 in	0.053 "	2.15 mm	1.35 mm	Surface Mount	Polymeric	85 °C	-40 C		6 V	cURus TUV	0.8 mm
Bourns Inc. MF-PSML075/6-2	0805 Concave	2012		0.028 in	0.085 in	0.053 "	2.15 mm	1.35 mm	Surface Mount	Polymeric	85 °C	-40 C	40 mOhms	6 V		0.7 mm	50 A	1.5 A	0.2 s	300 mOhms	750 mA
Bourns Inc. MF-PSML175-2	0805 Concave	2012	0.6 mm	0.024 in	0.085 in	0.053 "	2.15 mm	1.35 mm	Surface Mount	Polymeric	85 °C	-40 C		6 V	cURus TUV
Bourns Inc. MF-PSML200-2	0805 Concave	2012	0.6 mm	0.024 in	0.085 in	0.053 "	2.15 mm	1.35 mm	Surface Mount	Polymeric	85 °C	-40 C		6 V	cURus TUV
