BA00 Series

Catalog

IC REG LIN POS ADJ 1A TO220-5 FP

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply (Max) [Max]	Control Features	Voltage - Output (Min/Fixed)	Mounting Type	Protection Features	Current - Quiescent (Iq)	Output Type	Package / Case	Number of Regulators	Output Configuration	Current - Output	Supplier Device Package	PSRR	Voltage - Input (Max) [Max]	Voltage - Output (Max) [Max]	Voltage Dropout (Max)	PSRR [Min]	PSRR [Max]
Rohm Semiconductor BA00AST	85 °C	-40 C	5 mA	Enable	1.225 V	Through Hole	Over Current Over Temperature Over Voltage	2.5 mA	Adjustable	TO-220-5 Full Pack	1	Positive	1 A	TO-220-5 Full-Pak	55 dB	25 V	25 V
Rohm Semiconductor BA00ASFP-E2	85 °C	-40 C	5 mA	Enable	1.225 V	Surface Mount	Over Current Over Temperature Over Voltage	2.5 mA	Adjustable	DPAK (4 Leads + Tab) TO-252-5 TO-252-5 DPAK (4 Leads + Tab) TO-252AD	1	Positive	1 A	TO-252-5	55 dB	25 V	25 V

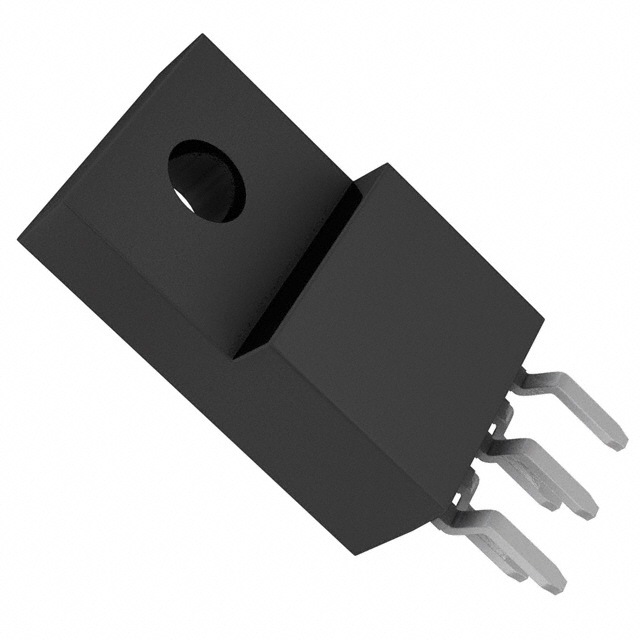

Rohm Semiconductor BA00BC0WCP-V5E2	105 ░C	-40 C	900 µA	Enable	1.5 V	Through Hole	Over Current Over Temperature	0.5 mA	Adjustable	TO-220-5 Full Pack Formed Leads	1	Positive	1 A	TO220CP-V5	55 dB	16 V	12 V
Rohm Semiconductor BA00BC0WF-E2	105 ░C	-40 C			1.5 V	Surface Mount	Over Current Over Temperature	130 µA	Adjustable	8-SOIC (0.173" 4.40mm Width)	1	Positive	500 mA	8-SOP	55 dB	16 V	12 V	0.5 V
Rohm Semiconductor BA00JC5WT-V5	105 ░C	-40 C		Enable	1.5 V	Through Hole	Over Current Over Temperature	130 µA	Adjustable	TO-220-5 Full Pack	1	Positive	1.5 A	TO-220FP		16 V	12 V	0.5 V	50 dB	55 dB
Rohm Semiconductor BA00BC0WT	105 ░C	-40 C	900 µA	Enable	1.5 V	Through Hole	Over Current Over Temperature	0.5 mA	Adjustable	TO-220-5 Full Pack	1	Positive	1 A	TO-220FP-5	55 dB	16 V	12 V
Rohm Semiconductor BA00JC5WT	105 ░C	-40 C		Enable	1.5 V	Through Hole	Over Current Over Temperature	130 µA	Adjustable	TO-220-5 Full Pack	1	Positive	1.5 A	TO-220FP		16 V	12 V	0.5 V	50 dB	55 dB
Rohm Semiconductor BA00CC0WT-V5	125 °C	-40 C	5 mA	Enable	1.225 V	Through Hole	Over Current Over Temperature Over Voltage	2.5 mA	Adjustable	TO-220-5 Full Pack	1	Positive	1 A	TO-220FP	55 dB	25 V	25 V
Rohm Semiconductor BA00BC0WFP-E2	105 ░C	-40 C	900 µA	Enable	1.5 V	Surface Mount	Over Current Over Temperature	0.5 mA	Adjustable	DPAK (4 Leads + Tab) TO-252-5 TO-252-5 DPAK (4 Leads + Tab) TO-252AD	1	Positive	1 A	TO-252-5	55 dB	16 V	12 V
Rohm Semiconductor BA00DD0WHFP-TR	125 °C	-40 C	5 mA	Enable	1.27 V	Surface Mount	Over Current Over Temperature Over Voltage	2.5 mA	Adjustable	HRP-5 (5 Leads + Tab)	1	Positive	2 A	HRP-5	55 dB	25 V	24.3 V	0.7 V
