8616 Series

Catalog

SWITCH KEYPAD 16KEY 0.05A 24V

Part	Operational Life	Approval Agency	Legend Type	Termination Style	Legend	Illumination	Contact Rating (Current)	Output Type	Legend Color	Mounting Type	Switch Type	Number of Keys	Panel Cutout Shape	Panel Cutout Width	Panel Cutout Length	Operating Temperature (Max)	Operating Temperature (Min)	Matrix Columns	Matrix Rows	Key Type	Color	Ingress Protection IP Rating	Ingress Protection Description	Features	Illumination Voltage (Nominal)

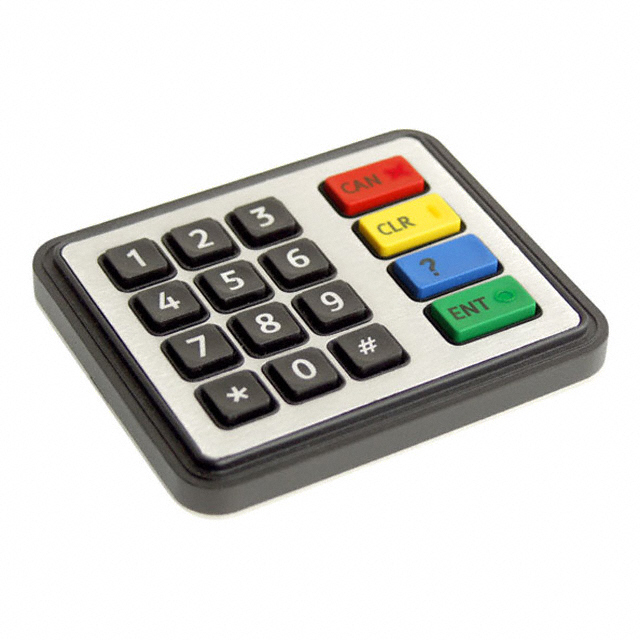

STORM INTERFACE 8616-210023	4000000 Cycles	CE cURus	Fixed	Pin Header	Function Keys Telephone Format	Non-Illuminated	0.05 A	Matrix	Black White	Front or Rear Panel Mount	Conductive Rubber	16	Rectangular	79 mm	97 mm	60 °C	-20 °C	4	4	Polymer	Multiple	IP65	Dust Tight Water Resistant

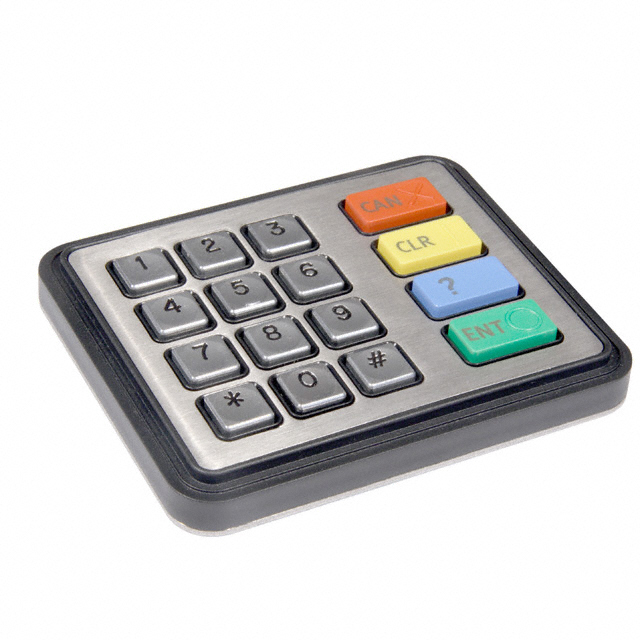

STORM INTERFACE 8616-310023	4000000 Cycles	CE cURus	Fixed	Pin Header	Function Keys Telephone Format	Non-Illuminated	0.05 A	Matrix	Black	Front or Rear Panel Mount	Conductive Rubber	16	Rectangular	79 mm	97 mm	60 °C	-20 °C	4	4	Metal	Multiple	IP65	Dust Tight Water Resistant	Anti-Vandal

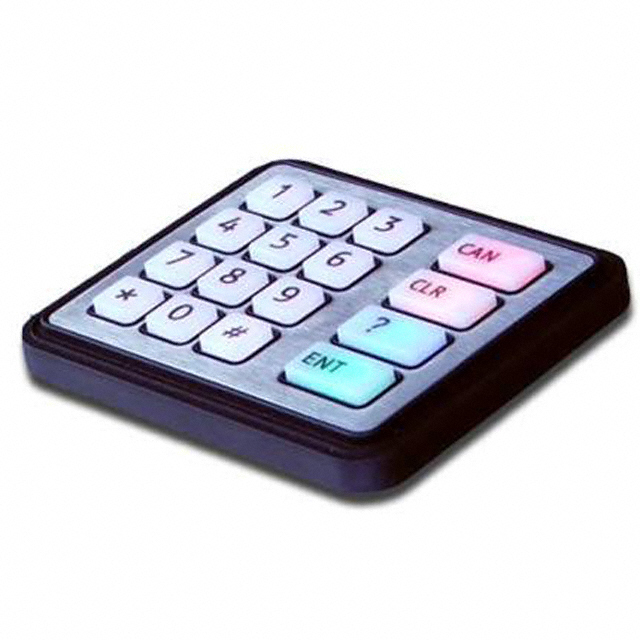

STORM INTERFACE 8616-410023	4000000 Cycles	CE cURus	Fixed	Pin Header	Function Keys Telephone Format	Illuminated	0.05 A	Matrix	Black	Front or Rear Panel Mount	Conductive Rubber	16	Rectangular	79 mm	97 mm	60 °C	-20 °C	4	4	Transparent Key Cap	Translucent	IP65	Dust Tight Water Resistant		5 V
