AST082 Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K

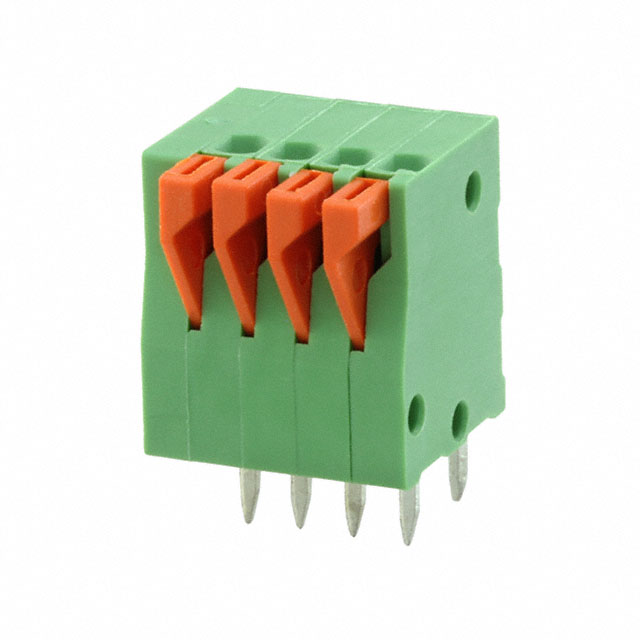

TERM BLK 4POS TOP ENT 2.54MM PCB
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Clamp Material - Plating | Contact Material - Plating | Current | Wire Termination | Mating Orientation | Mounting Type | Positions Per Level | Pitch | Pitch | Features | Number of Levels | Wire Gauge [Min] | Wire Gauge [Max] | Color | Voltage | Positions Per Level [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | -40 C | 105 ░C | Steel | Copper Alloy - Tin Plated | 6 A | Screwless - Spring Cage Tension Clamp | Vertical with Board | Through Hole | 4 | 0.1 " | 2.54 mm | Push Button Actuated | 1 | 19.5 AWG | 26 AWG | Green | 150 V | |
 METZ CONNECT USA Inc. | -40 C | 105 ░C | Steel | Copper Alloy - Tin Plated | 6 A | Screwless - Spring Cage Tension Clamp | Vertical with Board | Through Hole | 5 | 0.1 " | 2.54 mm | Push Button Actuated | 1 | 19.5 AWG | 26 AWG | Green | 150 V | |

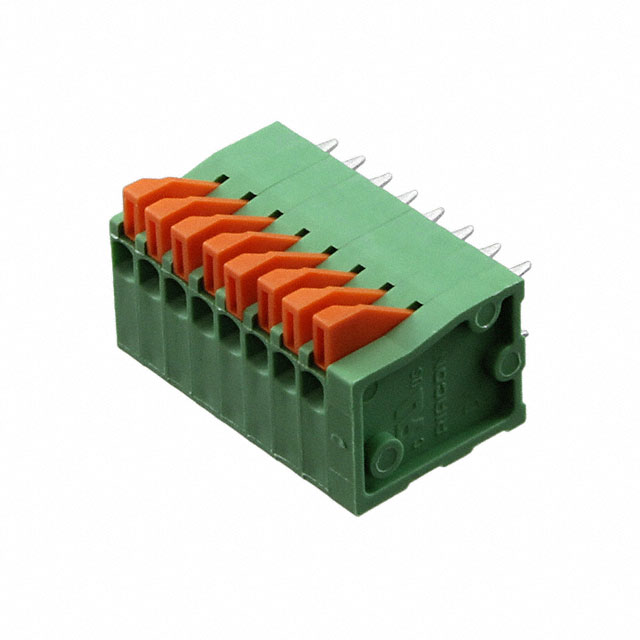

 METZ CONNECT USA Inc. | -40 C | 105 ░C | Steel | Copper Alloy - Tin Plated | 6 A | Screwless - Spring Cage Tension Clamp | Vertical with Board | Through Hole | 8 | 0.1 " | 2.54 mm | Push Button Actuated | 1 | 19.5 AWG | 26 AWG | Green | 150 V | |
METZ CONNECT USA Inc. | -40 C | 105 ░C | Steel | Copper Alloy - Tin Plated | 6 A | Screwless - Spring Cage Tension Clamp | Vertical with Board | Through Hole | 11 | 0.1 " | 2.54 mm | Push Button Actuated | 1 | 19.5 AWG | 26 AWG | Green | 150 V | |
METZ CONNECT USA Inc. | -40 C | 105 ░C | Steel | Copper Alloy - Tin Plated | 6 A | Screwless - Spring Cage Tension Clamp | Vertical with Board | Through Hole | 12 | 0.1 " | 2.54 mm | Push Button Actuated | 1 | 19.5 AWG | 26 AWG | Green | 150 V | |
METZ CONNECT USA Inc. | -40 C | 105 ░C | Steel | Copper Alloy - Tin Plated | 6 A | Screwless - Spring Cage Tension Clamp | Vertical with Board | Through Hole | 9 | 0.1 " | 2.54 mm | Push Button Actuated | 1 | 19.5 AWG | 26 AWG | Green | 150 V | |
METZ CONNECT USA Inc. | -40 C | 105 ░C | Steel | Copper Alloy - Tin Plated | 6 A | Screwless - Spring Cage Tension Clamp | Vertical with Board | Through Hole | 0.1 " | 2.54 mm | Push Button Actuated | 1 | 19.5 AWG | 26 AWG | Green | 150 V | 24 | |
METZ CONNECT USA Inc. | -40 C | 105 ░C | Steel | Copper Alloy - Tin Plated | 6 A | Screwless - Spring Cage Tension Clamp | Vertical with Board | Through Hole | 0.1 " | 2.54 mm | Push Button Actuated | 1 | 19.5 AWG | 26 AWG | Green | 150 V | 7 | |
METZ CONNECT USA Inc. | -40 C | 105 ░C | Steel | Copper Alloy - Tin Plated | 6 A | Screwless - Spring Cage Tension Clamp | Vertical with Board | Through Hole | 10 | 0.1 " | 2.54 mm | Push Button Actuated | 1 | 19.5 AWG | 26 AWG | Green | 150 V | |
 METZ CONNECT USA Inc. | -40 C | 105 ░C | Steel | Copper Alloy - Tin Plated | 6 A | Screwless - Spring Cage Tension Clamp | Vertical with Board | Through Hole | 6 | 0.1 " | 2.54 mm | Push Button Actuated | 1 | 19.5 AWG | 26 AWG | Green | 150 V |
