ICV Series

Pluggable Terminal Blocks 7 Pos 5.08mm pitch Thru Hole Invert Hdr

Manufacturer: Phoenix Contact

Catalog

Pluggable Terminal Blocks 7 Pos 5.08mm pitch Thru Hole Invert Hdr

Catalog

Pluggable Terminal Blocks 7 Pos 5.08mm pitch Thru Hole Invert Hdr

Part	Contact Tail Length	Contact Tail Length	Color	Contact Mating Finish	Termination Style	Positions Per Level	Number of Levels	Number of Positions	Mounting Type	Voltage - IEC	Type	Current - IEC	Features	Header Orientation	Pitch	Pitch	Insulation Height	Insulation Height	Housing Material	Material Flammability Rating	Voltage - UL	Current - UL	Positions Per Level [custom]
Phoenix Contact 1971756	0.142 in	3.6 mm	Green	Tin	Solder	5	1	5	Through Hole	320 V	Header Female Sockets	12 A	Retention Latches	Vertical	5.08 mm	0.2 in

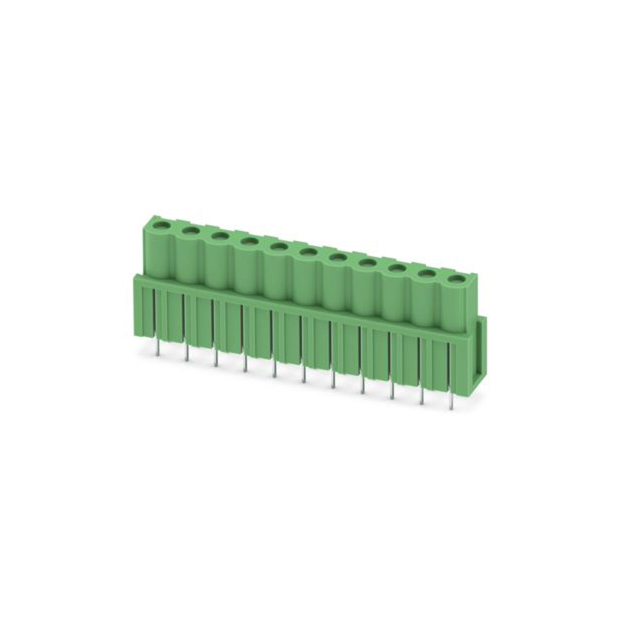

Phoenix Contact 1786035	0.142 in	3.6 mm	Green	Tin	Solder	11	1	11	Through Hole	630 V	Header Female Sockets	12 A	Retention Latches	Vertical	5.08 mm	0.2 in	19 mm	0.748 in	Polyamide (PA) Nylon	UL94 V-0	300 V	10 A
Phoenix Contact 1825747			Green	Tin	Solder		1	7	Through Hole	630 V	Header Female Sockets	12 A	Mating and Mounting Flange Retention Latches	Vertical	5.08 mm	0.2 in					300 V	10 A	7
Phoenix Contact 1825828	0.142 in	3.6 mm	Green	Tin	Solder	15	1	15	Through Hole	630 V	Header Female Sockets	12 A	Mating and Mounting Flange Retention Latches	Vertical	5.08 mm	0.2 in	19 mm	0.748 in	Polyamide (PA) Nylon	UL94 V-0	300 V	10 A

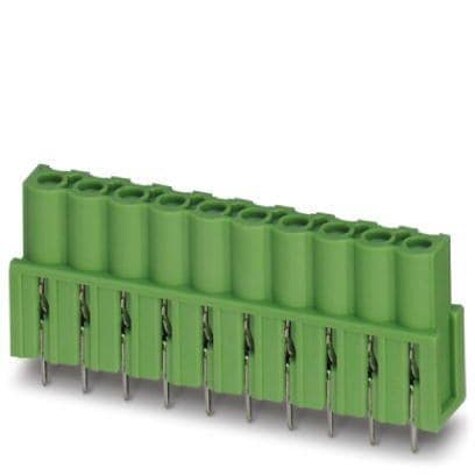

Phoenix Contact 1943580	0.142 in	3.6 mm	Green	Tin	Solder		1	7	Through Hole	630 V	Header Female Sockets	16 A	Retention Latches	Vertical	5.08 mm	0.2 in	19 mm	0.748 in	Polyamide (PA) Nylon	UL94 V-0	300 V	10 A	7
Phoenix Contact 1825857			Green	Tin	Solder	18	1	18	Through Hole	630 V	Header Female Sockets	12 A	Mating and Mounting Flange Retention Latches	Vertical	5.08 mm	0.2 in					300 V	10 A

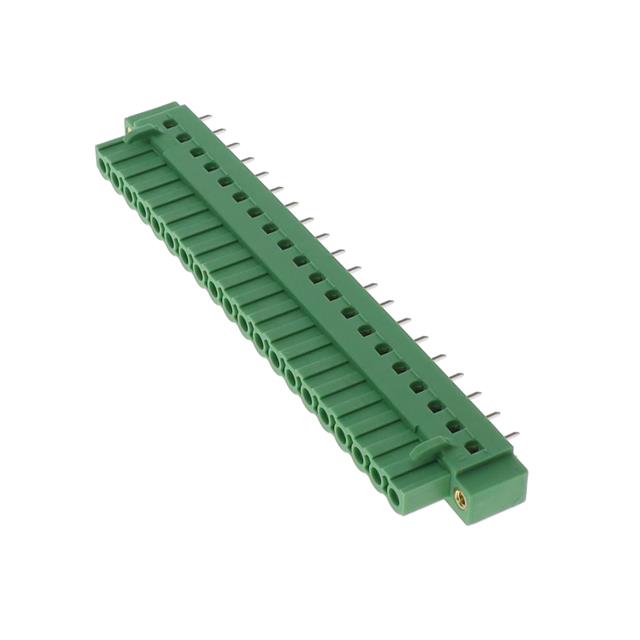

Phoenix Contact 1825873	0.142 in	3.6 mm	Green	Tin	Solder	20	1	20	Through Hole	630 V	Header Female Sockets	12 A	Mating and Mounting Flange Retention Latches	Vertical	5.08 mm	0.2 in	19 mm	0.748 in	Polyamide (PA) Nylon	UL94 V-0	300 V	10 A

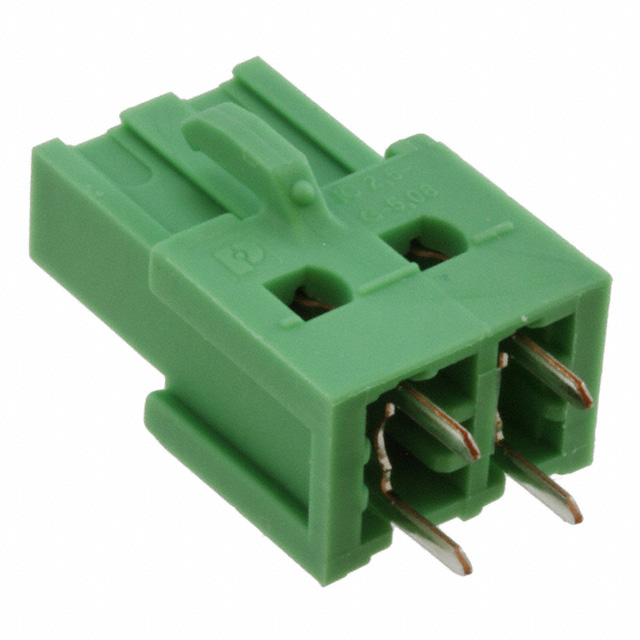

Phoenix Contact 1785942	0.142 in	3.6 mm	Green	Tin	Solder	2	1	2	Through Hole	630 V	Header Female Sockets	12 A	Retention Latches	Vertical	5.08 mm	0.2 in	19 mm	0.748 in	Polyamide (PA) Nylon	UL94 V-0	300 V	10 A
