29674 Series
Manufacturer: Phoenix Contact
Beta
⌘K
RELAY GEN PURPOSE SPDT 6A 12V
| Part | Coil Resistance | Operating Temperature [Min] | Operating Temperature [Max] | Release Time | Coil Current | Coil Voltage | Contact Rating (Current) | Contact Material | Switching Voltage | Mounting Type | Relay Type | Features | Termination Style | Operate Time | Coil Type | Contact Form | Switching Voltage [Max] | Coil Voltage | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

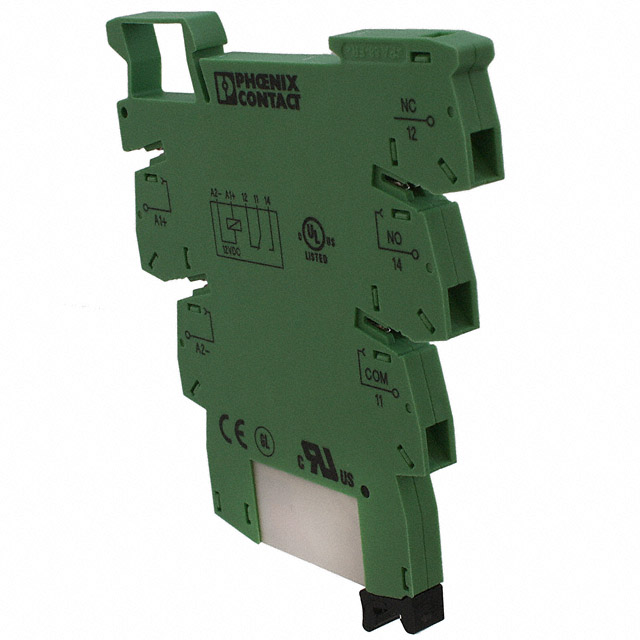

 Phoenix Contact | 784 Ohms | -25 °C | 60 °C | 8 ms | 15.3 mA | 12 VDC | 6 A | Silver Tin Oxide (AgSnO) | 250 VAC 250 VDC | DIN Rail | General Purpose | Lighted Indicator Socket Included | Spring Terminal | 5 ms | Non Latching | SPDT (1 Form C) | |||

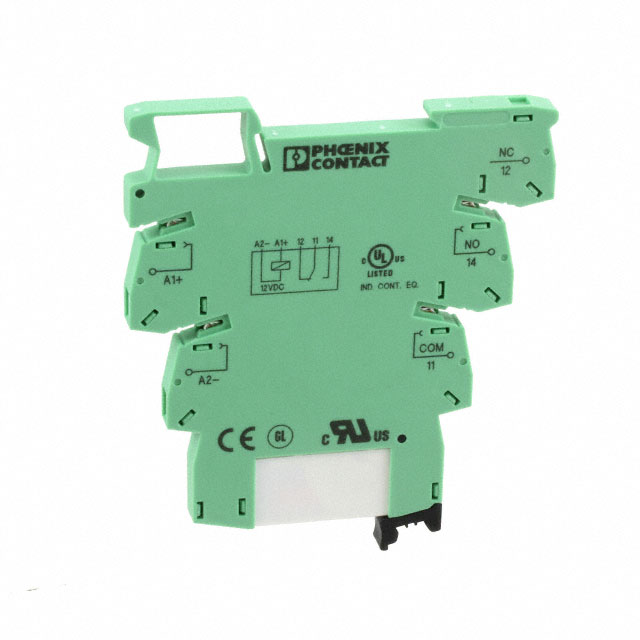

 Phoenix Contact | 784 Ohms | -25 °C | 60 °C | 8 ms | 15.3 mA | 12 VDC | 50 mA | Gold (Au) Silver (Ag) | DIN Rail | General Purpose | Lighted Indicator Socket Included | Spring Terminal | 5 ms | Non Latching | SPDT (1 Form C) | 30 VAC 36 VDC | |||
 Phoenix Contact | 71.88 kOhms | -40 C | 55 °C | 15 ms | 3.2 mA | 50 mA | Gold (Au) Silver Tin Oxide (AgSnO) | 30 VDC 30 VAC | DIN Rail | General Purpose | Lighted Indicator Socket Included | Spring Terminal | 7 ms | Non Latching | SPST-NO (1 Form A) | 230 VDC | 230 VAC |
