ED105 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K
TERM BLK 3POS TOP ENTRY 5MM PCB
| Part | Housing Material | Screw Thread | Clamp Material - Plating [custom] | Contact Material - Plating | Torque - Screw | Torque - Screw | Operating Temperature [Min] | Operating Temperature [Max] | Voltage | Current | Mating Orientation | Pitch | Pitch | Features | Positions Per Level | Wire Gauge [Min] | Wire Gauge [Max] | Number of Levels | Color | Mounting Type | Wire Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

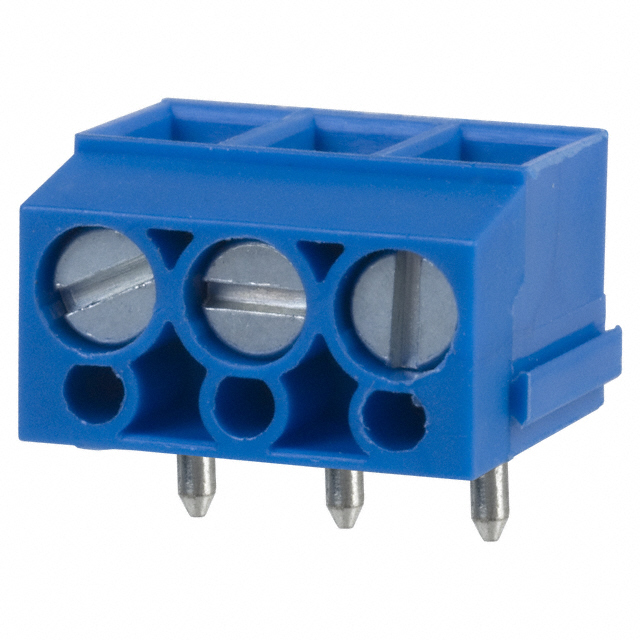

 On Shore Technology Inc. | Polyamide (PA) Nylon | M3 | Stainless Steel | Brass | 4.4 Lb-In | 0.5 Nm | -30 ░C | 105 ░C | 300 VDC | 15 A | Vertical with Board | 0.197 in | 5 mm | Interlocking (Side) | 3 | 14 AWG | 22 AWG | 1 | Blue | Through Hole | Screw - Leaf Spring Wire Guard |

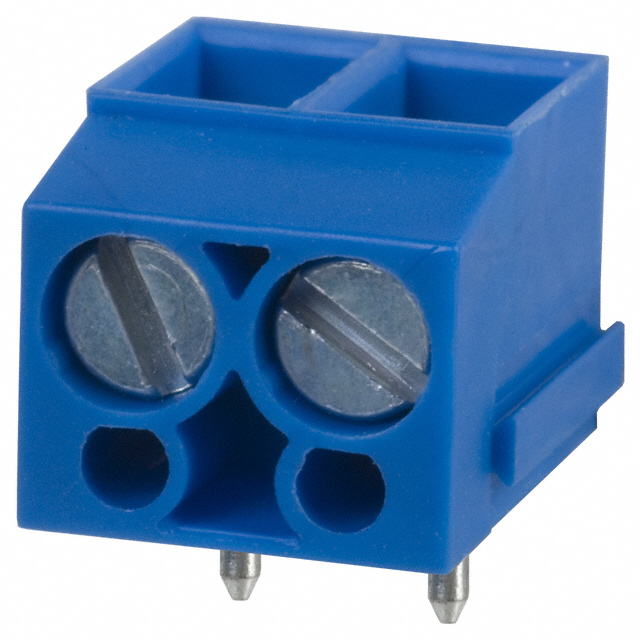

 On Shore Technology Inc. | Polyamide (PA) Nylon | M3 | Stainless Steel | Brass | 4.4 Lb-In | 0.5 Nm | -30 ░C | 105 ░C | 300 VDC | 15 A | Vertical with Board | 0.197 in | 5 mm | Interlocking (Side) | 2 | 14 AWG | 22 AWG | 1 | Blue | Through Hole | Screw - Leaf Spring Wire Guard |
