CHM-18 Series

Catalog

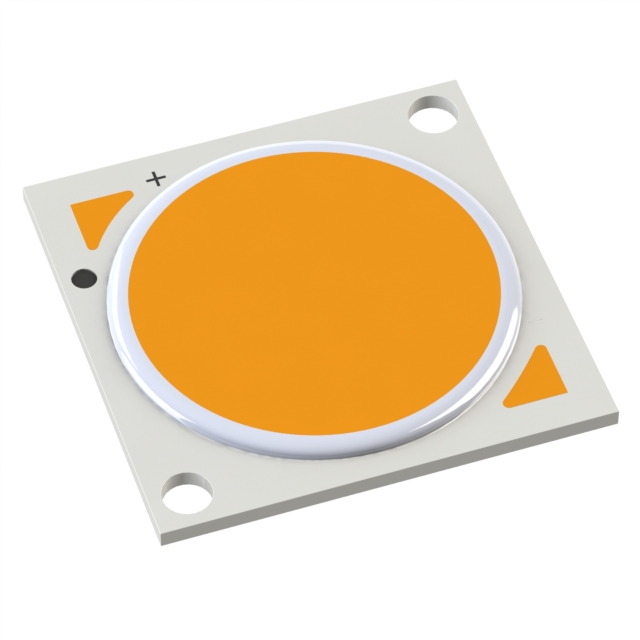

LED COB CHM18 WARM WHT SQU 2700K

Part	Lens Type	Lumens/Watt @ Current - Test	CCT (K)	CCT (K)	Height [z]	CRI (Color Rendering Index)	Luminous Flux @ Current/Temperature	Configuration	Viewing Angle	Voltage - Forward (Vf) (Typ)	Current - Test	Color	Current - Max [Max]	Light Emitting Surface (LES) [diameter]	Size / Dimension [y]	Size / Dimension [x]	Temperature - Test	Type
Luminus Devices Inc. CHM-18-27-95-36-AA00-F2-3	Flat	84 lm/W	2700 K	3-Step MacAdam Ellipse	1.37 mm	95	3250 lm	Square	120 °	35 V	1.2 A	Warm White	2.4 A	17.5 mm	21.5 mm	21.5 mm	85 °C	Chip On Board (COB)
Luminus Devices Inc. CHM-18-30-80-36-AA02-F2-3	Flat	121 lm/W	3000 K	3-Step MacAdam Ellipse	1.37 mm	80	4670 lm	Square	120 °	35 V	1.1 A	Warm White	2.4 A	17.5 mm	21.5 mm	21.5 mm	85 °C	Chip On Board (COB)
Luminus Devices Inc. CHM-18-27-80-36-AA00-F2-3	Flat	115 lm/W	2700 K	3-Step MacAdam Ellipse	1.37 mm	80	4430 lm	Square	120 °	35 V	1.2 A	Warm White	2.4 A	17.5 mm	21.5 mm	21.5 mm	85 °C	Chip On Board (COB)
Luminus Devices Inc. CHM-18-30-95-36-AA00-F2-2	Flat	95 lm/W	3000 K		1.37 mm	95	3670 lm	Square	120 °	35 V	1.2 A	Warm White	2.4 A	17.5 mm	21.5 mm	21.5 mm	85 °C	Chip On Board (COB)
Luminus Devices Inc. CHM-18-40-95-36-AA00-F2-2	Flat	102 lm/W	4000 K	2-Step MacAdam Ellipse	1.37 mm	95	3925 lm	Square	120 °	35 V	1.2 A	Neutral White	2.4 A	17.5 mm	21.5 mm	21.5 mm	85 °C	Chip On Board (COB)
Luminus Devices Inc. CHM-18-30-80-36-AA00-F2-2	Flat	121 lm/W	3000 K		1.37 mm	80	4670 lm	Square	120 °	35 V	1.2 A	Warm White	2.4 A	17.5 mm	21.5 mm	21.5 mm	85 °C	Chip On Board (COB)
Luminus Devices Inc. CHM-18-35-80-36-AA00-F2-3	Flat	125 lm/W	3500 K	3-Step MacAdam Ellipse	1.37 mm	80	4830 lm	Square	120 °	35 V	1.2 A	Warm White	2.4 A	17.5 mm	21.5 mm	21.5 mm	85 °C	Chip On Board (COB)
Luminus Devices Inc. CHM-18-40-80-36-AA00-F2-3	Flat	130 lm/W	4000 K	3-Step MacAdam Ellipse	1.37 mm	80	4995 lm	Square	120 °	35 V	1.2 A	Neutral White	2.4 A	17.5 mm	21.5 mm	21.5 mm	85 °C	Chip On Board (COB)
Luminus Devices Inc. CHM-18-50-80-36-AA00-F2-3	Flat	133 lm/W	5000 K	3-Step MacAdam Ellipse	1.37 mm	80	5115 lm	Square	120 °	35 V	1.2 A	Cool White	2.4 A	17.5 mm	21.5 mm	21.5 mm	85 °C	Chip On Board (COB)
Luminus Devices Inc. CHM-18-65-80-36-AA00-F2-3	Flat	132 lm/W	6500 K		1.37 mm	80	5095 lm	Square	120 °	35 V	1.2 A	Cool White	2.4 A	17.5 mm	21.5 mm	21.5 mm	85 °C	Chip On Board (COB)
