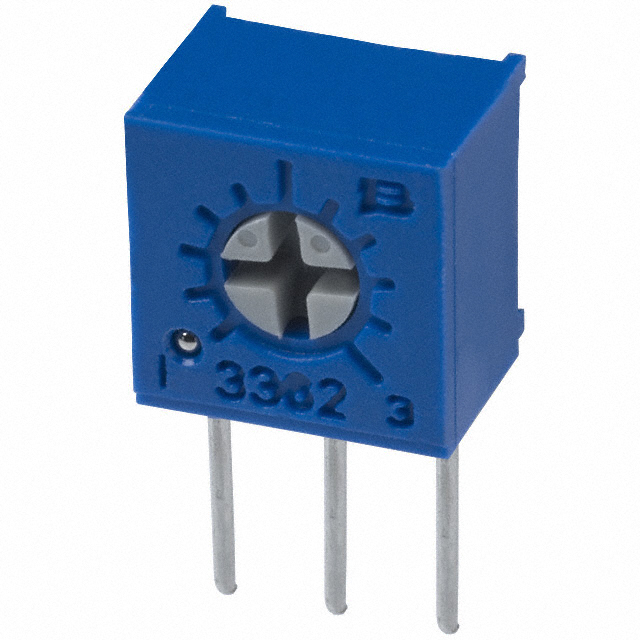

3362M Series

Catalog

TRIMMER, SINGLE TURN, CERMET, SIDE ADJUST, 20 KOHM, THROUGH HOLE, 1 TURNS

Part	Temperature Coefficient	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Adjustment Type	Resistive Material	Number of Turns	Tolerance	Power (Watts)	Power (Watts)	Termination Style	Resistance
Bourns Inc. 3362M-1-203LF	100 ppm/°C	Through Hole	6.99 mm	0.275 in	0.26 in	6.6 mm	Side Adjustment	Cermet	1	10 %	0.5 W	0.5 W	PC Pins	20 kOhms
Bourns Inc. 3362M-1-204A	100 ppm/°C	Through Hole	6.99 mm	0.275 in	0.26 in	6.6 mm	Side Adjustment	Cermet	1	10 %	0.5 W	0.5 W	PC Pins	200000 Ohms
Bourns Inc. 3362M-1-203RLF	100 ppm/°C	Through Hole	6.99 mm	0.275 in	0.26 in	6.6 mm	Side Adjustment	Cermet	1	10 %	0.5 W	0.5 W	PC Pins	20 kOhms
Bourns Inc. 3362M-1-100	100 ppm/°C	Through Hole	6.99 mm	0.275 in	0.26 in	6.6 mm	Side Adjustment	Cermet	1	10 %	0.5 W	0.5 W	PC Pins	10 Ohms
Bourns Inc. 3362M-1-201RLF	100 ppm/°C	Through Hole	6.99 mm	0.275 in	0.26 in	6.6 mm	Side Adjustment	Cermet	1	10 %	0.5 W	0.5 W	PC Pins	200 Ohms
Bourns Inc. 3362M-1-502R	100 ppm/°C	Through Hole	6.99 mm	0.275 in	0.26 in	6.6 mm	Side Adjustment	Cermet	1	10 %	0.5 W	0.5 W	PC Pins	5 kOhms
Bourns Inc. 3362M-1-102RLF	100 ppm/°C	Through Hole	6.99 mm	0.275 in	0.26 in	6.6 mm	Side Adjustment	Cermet	1	10 %	0.5 W	0.5 W	PC Pins	1000 Ohms
Bourns Inc. 3362M-1-500	100 ppm/°C	Through Hole	6.99 mm	0.275 in	0.26 in	6.6 mm	Side Adjustment	Cermet	1	10 %	0.5 W	0.5 W	PC Pins	50 Ohms
Bourns Inc. 3362M-1-202LF	100 ppm/°C	Through Hole	6.99 mm	0.275 in	0.26 in	6.6 mm	Side Adjustment	Cermet	1	10 %	0.5 W	0.5 W	PC Pins	2 kOhms
Bourns Inc. 3362M-1-104RLF	100 ppm/°C	Through Hole	6.99 mm	0.275 in	0.26 in	6.6 mm	Side Adjustment	Cermet	1	10 %	0.5 W	0.5 W	PC Pins	100 kOhms
