MGDDI Series

Catalog

DC DC CONVERTER 12V 12V 60W

Part	Voltage - Input (Max) [Max]	Power (Watts)	Efficiency	Voltage - Isolation	Voltage - Input (Min) [Min]	Package / Case	Mounting Type	Voltage - Output 1	Voltage - Output 2	Type	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max)	Current - Output (Max)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Features	Applications	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max)	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Current - Output (Max) [Min]

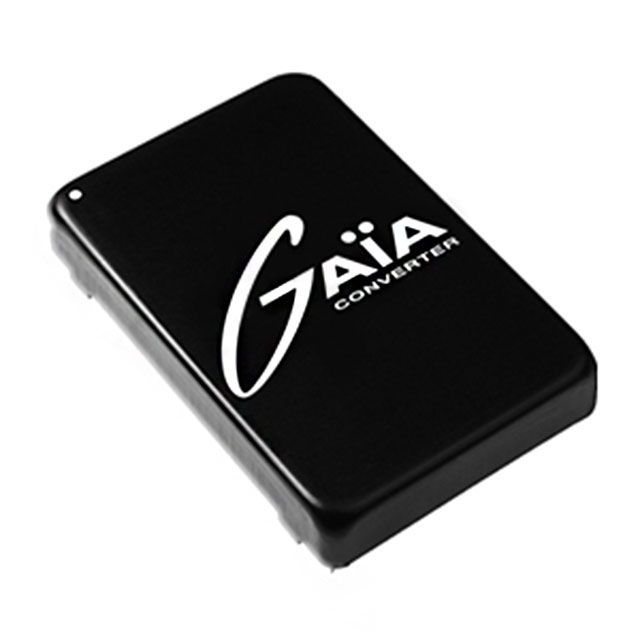

Gaia Converter MGDDI-60-R-E	160 V	60 W	91 %	2250 VDC	12 V	17-DIP Module	Through Hole	12 V	12 V	Isolated Module	2	-40 C	100 °C	2.5 A	2.5 A	72.7 mm	1.89 in	12.5 mm	0.49 "	2.86 "	47.9 mm	Baseplate	ITE (Commercial)

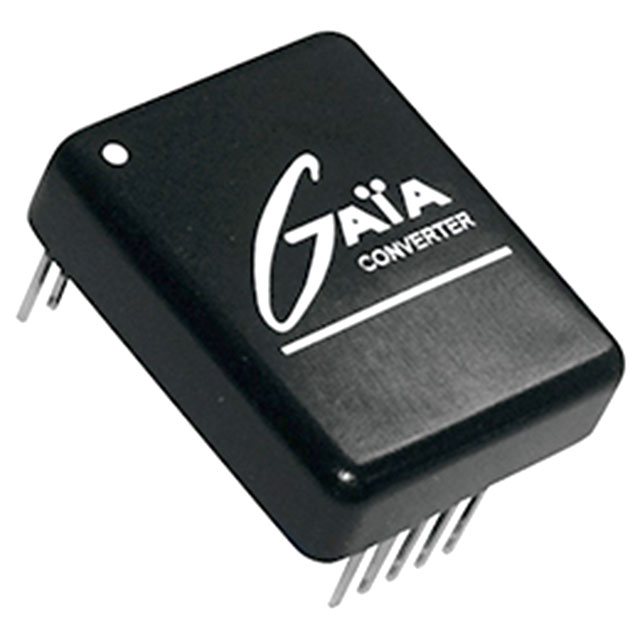

Gaia Converter MGDDI-06-R-I	160 V	6 W	83 %	2250 VDC	12 V	10-DIP Module	Through Hole	24 V	24 V	Isolated Module	2	-40 C	100 °C			28 mm	0.78 in		0.32 "	1.1 in			ITE (Commercial)	8.2 mm	19.8 mm	125 mA

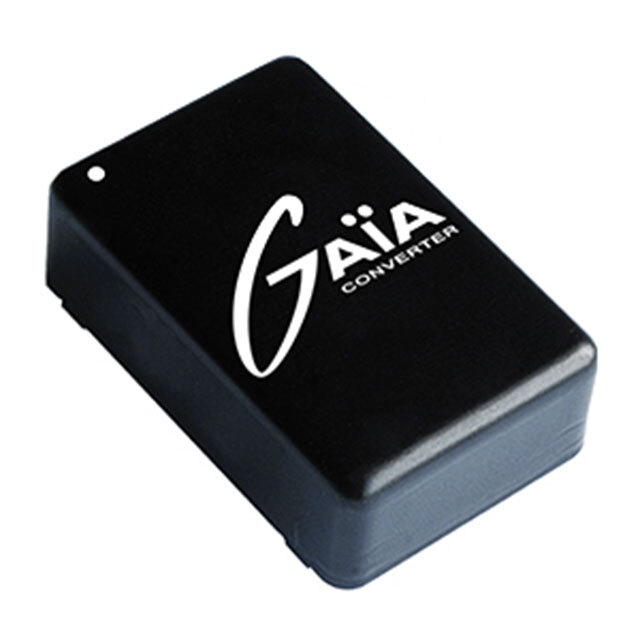

Gaia Converter MGDDI-20-R-I	160 V	20 W	90 %	2250 VDC	12 V	16-DIP Module	Through Hole	24 V	24 V	Isolated Module	2	-40 C	100 °C			40.1 mm	1.03 in	12.7 mm	0.5 in	1.58 inches	26.1 mm		ITE (Commercial)				425 mA	425 mA
Gaia Converter MGDDI-06-R-C	160 V	6 W	83 %	2250 VDC	12 V	10-DIP Module	Through Hole	5 V	5 V	Isolated Module	2	-40 C	100 °C			28 mm	0.78 in		0.32 "	1.1 in			ITE (Commercial)	8.2 mm	19.8 mm		600 mA		600 mA
Gaia Converter MGDDI-06-R-F	160 V	6 W	83 %	2250 VDC	12 V	10-DIP Module	Through Hole	15 V	15 V	Isolated Module	2	-40 C	100 °C			28 mm	0.78 in		0.32 "	1.1 in			ITE (Commercial)	8.2 mm	19.8 mm
Gaia Converter MGDDI-06-R-E	160 V	6 W	83 %	2250 VDC	12 V	10-DIP Module	Through Hole	12 V	12 V	Isolated Module	2	-40 C	100 °C			28 mm	0.78 in		0.32 "	1.1 in			ITE (Commercial)	8.2 mm	19.8 mm	250 mA
Gaia Converter MGDDI-20-R-E	160 V	20 W	90 %	2250 VDC	12 V	16-DIP Module	Through Hole	12 V	12 V	Isolated Module	2	-40 C	100 °C			40.1 mm	1.03 in	12.7 mm	0.5 in	1.58 inches	26.1 mm		ITE (Commercial)				825 mA	825 mA
