1840408 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K

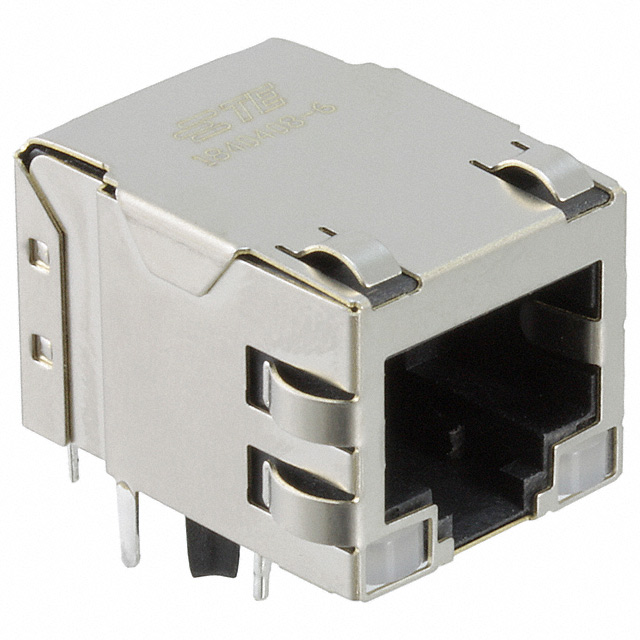

CONN JACK 1PORT PCB
| Part | Shield Material | Housing Material | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Orientation | Termination | Applications | Features | Tab Direction | Height Above Board | Height Above Board | Number of Ports | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Shielding | Number of Cores per Jack | Contact Material | Contact Finish | LED Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | Brass | Polyester Polyethylene Terephthalate (PET) | 50 µin | 1.27 µm | RJ45 | 90 ° | Solder | 10/100/1000 Base-T AutoMDIX | Board Guide Decoupling Capacitance | Down | 0.555 " | 14.1 mm | 1 | 1 | 85 °C | -40 C | Through Hole | EMI Finger Shielded | 12 | Phosphor Bronze | Gold | Green Yellow |
