AWH 20A Series

Catalog

CONN HEADER R/A 20POS 2.54MM

Part	Shrouding	Contact Finish - Mating	Insulation Color	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Contact Finish - Post	Insulation Material	Number of Rows [custom]	Style	Contact Type	Mounting Type	Material Flammability Rating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Current Rating (Amps)	Features	Contact Material	Number of Positions Loaded	Connector Type	Insulation Height [z]

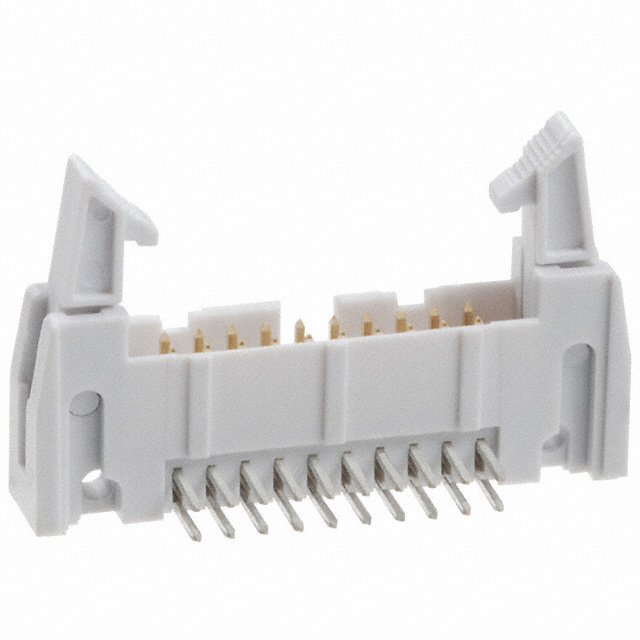

Assmann WSW Components AWH20A-0232-T-R	Shrouded - 4 Wall	Gold	Gray	Square	0.1 in	2.54 mm	20	-40 C	105 ░C	Latch Lock/Eject Hooks Long	3.81 mm	0.15 in	Solder	Tin	Polybutylene Terephthalate (PBT) Glass Filled	2	Board to Cable/Wire	Male Pin	Right Angle Through Hole	UL94 V-0	Flash	0.1 "	2.54 mm	17 mm	0.669 in	3 A	Keying Slot	Brass	All	Header
Assmann WSW Components AWH 20A-0222-T	Shrouded - 4 Wall	Gold	Gray	Square	0.1 in	2.54 mm	20	-40 C	105 ░C	Latch Lock/Eject Hooks	3.81 mm	0.15 in	Solder	Tin	Polybutylene Terephthalate (PBT) Glass Filled	2	Board to Cable/Wire	Male Pin	Right Angle Through Hole	UL94 V-0	Flash	0.1 "	2.54 mm	8.3 mm		3 A	Keying Slot	Brass	All	Header	0.327 "
