9939 Series
Manufacturer: Belden Inc.
Beta
⌘K

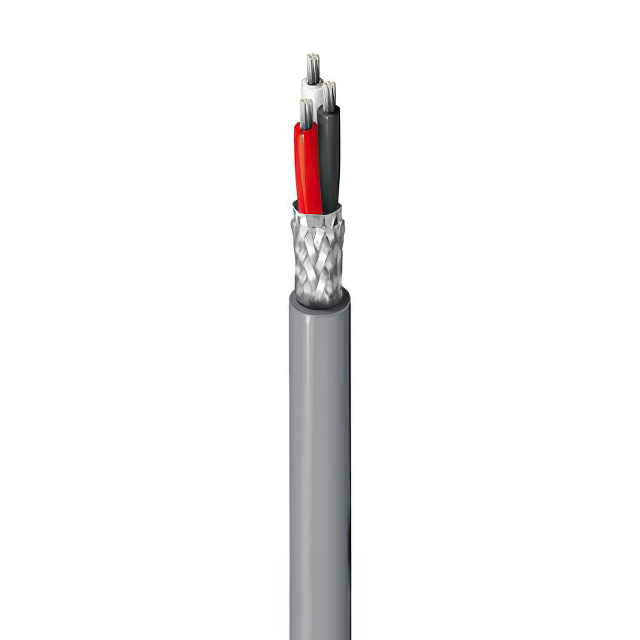

CABLE 3COND 22AWG CHRM SHD
| Part | Shield Material | Shield Coverage | Conductor Insulation | Voltage | Jacket (Insulation) Material | Jacket Color | Length | Length | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Wire Gauge | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 80 % 100 % | Poly-Vinyl Chloride (PVC) | 300 VDC | Poly-Vinyl Chloride (PVC) | Chrome | 304.8 m | 1000 ft | 80 °C | -30 ░C | Multi-Conductor | 22 AWG | Copper Tinned | 0.035 in | 0.889 mm | 30 AWG | 7 | Braid Foil | UL Style 2464 | 0.202 in | 5.13 mm | 3 | Computer |
Belden Inc. | Aluminum Copper Tinned | 80 % 100 % | Poly-Vinyl Chloride (PVC) | 300 VDC | Poly-Vinyl Chloride (PVC) | Chrome | 152.4 m | 500 ft | 80 °C | -30 ░C | Multi-Conductor | 22 AWG | Copper Tinned | 0.035 in | 0.889 mm | 30 AWG | 7 | Braid Foil | UL Style 2464 | 0.202 in | 5.13 mm | 3 | Computer |
