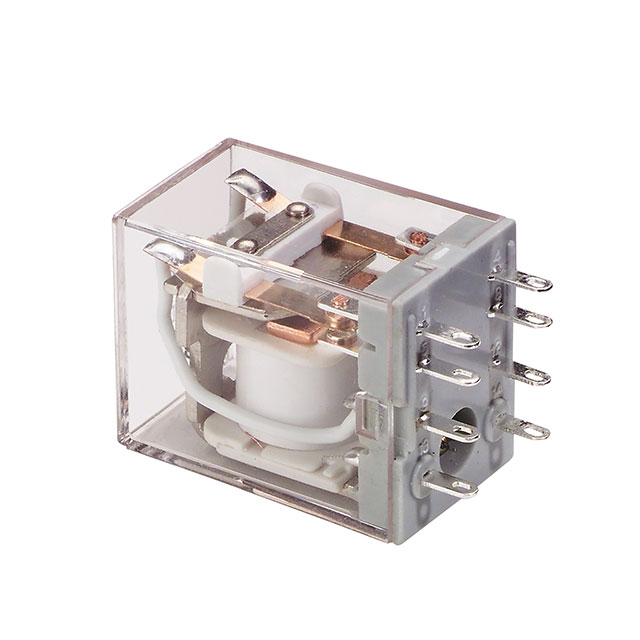

GPRM-B2 Series
Manufacturer: c3controls
Beta
⌘K
RELAY GEN PURPOSE DPDT 10A 24V
| Part | Coil Resistance | Must Release Voltage | Coil Current | Must Operate Voltage | Mounting Type | Contact Material | Contact Form | Coil Type | Contact Rating (Current) | Relay Type | Features | Coil Voltage | Operate Time | Release Time | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Switching Voltage [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 c3controls | 650 Ohms | 2.4 VDC | 36.9 mA | 19.2 VDC | Socketable | Silver Nickel (AgNi) | DPDT (2 Form C) | Non Latching | 10 A | General Purpose | Lighted Indicator | 24 VDC | 25 ms | 25 ms | Plug In | 55 °C | -25 °C | 28 VDC 240 VAC |
c3controls | 186 Ohms | 7.2 VAC | 45 mA | Socketable | Silver Nickel (AgNi) | DPDT (2 Form C) | Non Latching | 5 A | General Purpose | Lighted Indicator | 24 VAC | 25 ms | 25 ms | Plug In | 55 °C | -25 °C | 28 VDC 240 VAC | |
c3controls | 160 Ohms | 7.2 VAC | 45 mA | 19.2 VAC | Socketable | Silver Nickel (AgNi) | DPDT (2 Form C) | Non Latching | 10 A | General Purpose | Lighted Indicator | 24 VAC | 25 ms | 25 ms | Plug In | 55 °C | -25 °C | 28 VDC 240 VAC |
