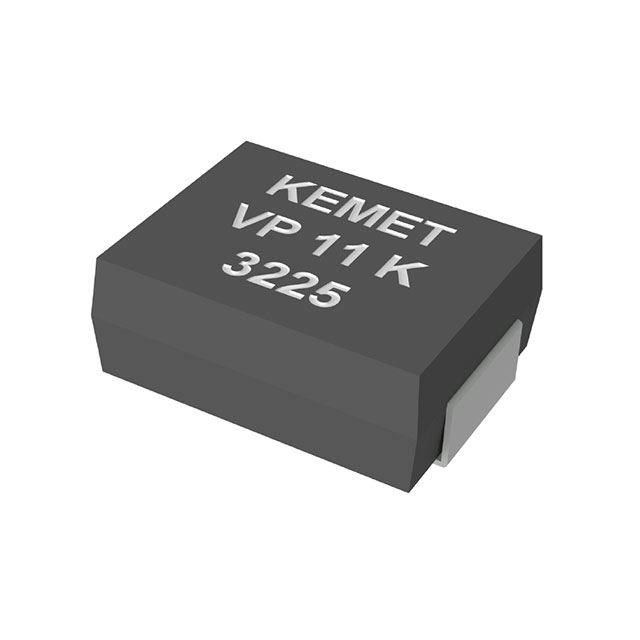

VP3225K Series

Manufacturer: KEMET

Catalog

VARISTOR, AEC-Q200, 775V, MLV, 1210

Part	Capacitance @ Frequency	Varistor Voltage (Max) [Max]	Current - Surge	Mounting Type	Varistor Voltage (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Varistor Voltage (Typ)	Maximum AC Volts [Max]	Package / Case	Energy	Maximum DC Volts [Max]	Number of Circuits	Grade	Qualification	Varistor Voltage (Max)
KEMET VP3225K401R300	1 kHz 70 pF	517 V	400 A	Surface Mount	423 V	85 °C	-40 C	470 V	300 V	2-SMD J-Lead	15 J	385 V	1
KEMET VP3225K101R035		61.6 V	100 A	Surface Mount	50.4 V			56 V	35 V	2-SMD J-Lead	1.8 J	45 V	1	Automotive	AEC-Q200
KEMET VP3225K101R020		36.3 V	100 A	Surface Mount	29.7 V			33 V	20 V	2-SMD J-Lead	1.1 J	26 V	1	Automotive	AEC-Q200
KEMET VP3225K101R014		24.2 V	100 A	Surface Mount	19.8 V			22 V	14 V	2-SMD J-Lead	0.7 J	18 V	1	Automotive	AEC-Q200
KEMET VP3225K401R150	1 kHz 140 pF	264 V	400 A	Surface Mount	216 V	85 °C	-40 C	240 V	150 V	2-SMD J-Lead	9 J	200 V	1
KEMET VP3225K101R030		19.8 V	100 A	Surface Mount	16.2 V			18 V	11 V	2-SMD J-Lead	0.6 J	14 V	1	Automotive	AEC-Q200
KEMET VP3225K401R275	1 kHz 75 pF		400 A	Surface Mount	387 V	85 °C	-40 C	430 V	275 V	2-SMD J-Lead	13 J	350 V	1			473 V
