HDC HQ Series

Catalog

HQ-012-F

Part	Housing Material	Material Flammability Rating	Size	Number of Positions	Termination Style	Connector Type	Voltage Rating	Gender	Contact Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions [Max]	Color

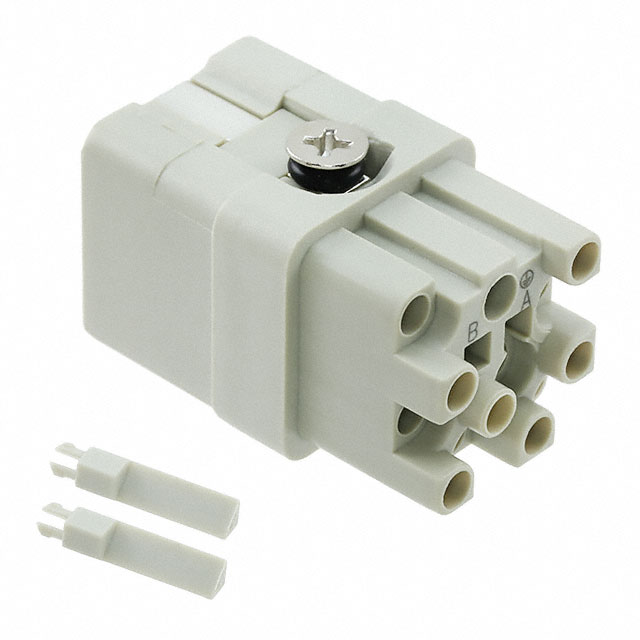

TE Connectivity AMP Connectors T2080122201-000	Polycarbonate (PC)	UL94 V-0	H3A	12+Ground	Crimp	Insert without Contacts	400 V	Female	CDF DDF	10 A
TE Connectivity AMP Connectors T2080052201-000			H3A	5+Ground	Crimp	Insert without Contacts	400 V	Female	CE DE	16 A	125 °C	-40 C
TE Connectivity AMP Connectors T2080062101-100			H8A	Ground	Crimp	Insert without Contacts	690 V	Male	CDM DDM	40 A	125 °C	-40 C	2 4
TE Connectivity AMP Connectors T2080052101-000			H3A	5+Ground	Crimp	Insert without Contacts	400 V	Male	CE DE	16 A	125 °C	-40 C

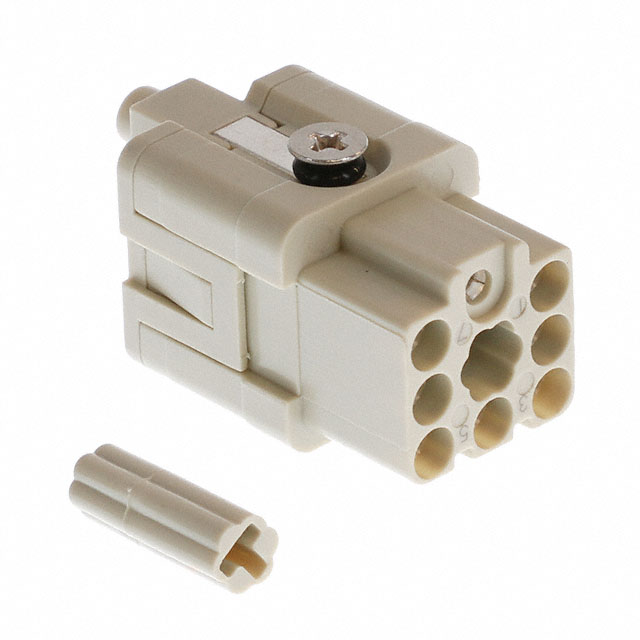

TE Connectivity AMP Connectors T2080072201-000	Polycarbonate (PC)	UL94 V-0	H3A	7+Ground	Crimp	Insert without Contacts	400 V	Female	CD DD	10 A	125 °C	-40 C		Gray

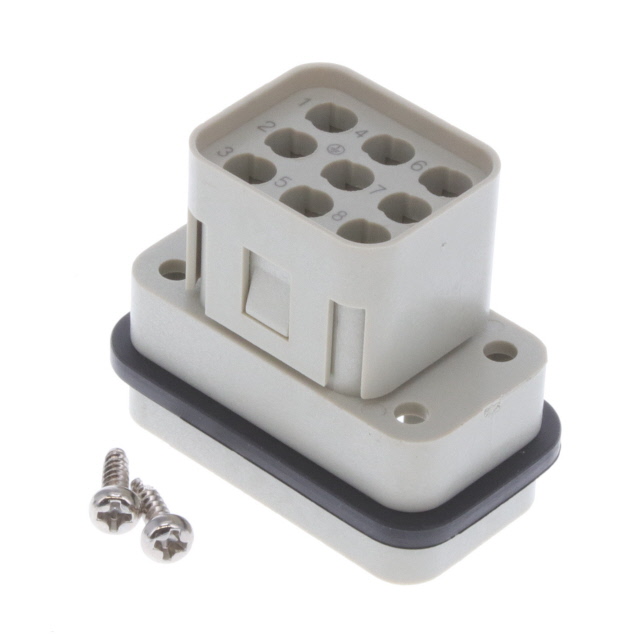

TE Connectivity AMP Connectors T2019092101-000	Polycarbonate (PC)	UL94 V-0	H8A	8+Ground	Crimp	Insert without Contacts	500 V	Male	CDM DDM	16 A	125 °C	-40 C
TE Connectivity AMP Connectors T2080052201-001	Polycarbonate (PC)	UL94 V-0	H3A	5+Ground	Crimp	Insert	400 V	Female	CEF DEF	16 A	125 °C	-40 C
TE Connectivity AMP Connectors T2080072101-000			H3A	7+Ground	Crimp	Insert without Contacts	400 V	Male	CD DD	10 A	125 °C	-40 C

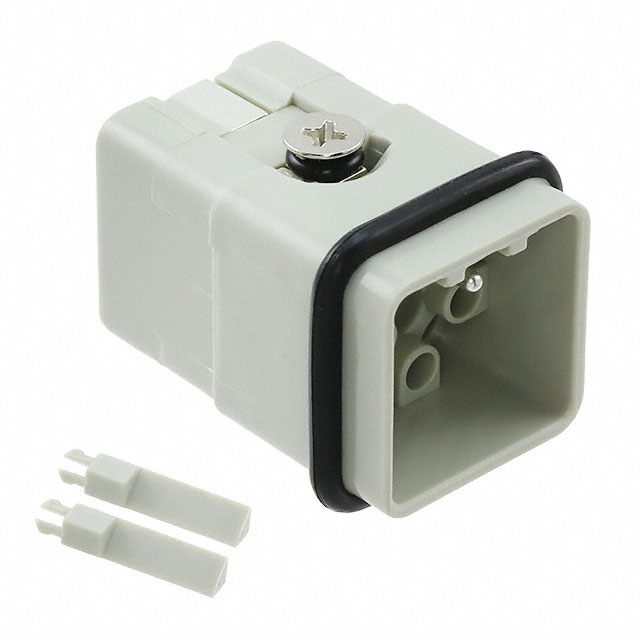

TE Connectivity AMP Connectors T2080122101-000	Polycarbonate (PC)	UL94 V-0	H3A	12+Ground	Crimp	Insert without Contacts	400 V	Male	CDM DDM	10 A
