HDF-R62 Series
Manufacturer: NorComp Inc.
Beta
⌘K

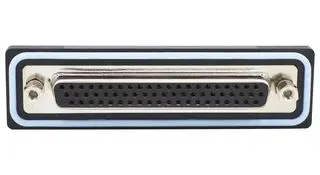

D SUB CONNECTOR, IP67, HIGH DENSITY, RECEPTACLE, NANOOK SERIES, 62 CONTACTS, DC, SOLDER
| Part | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Color | Contact Material | Contact Type | Features | Shell Size, Connector Layout | Shell Size, Connector Layout | Mounting Type | Connector Type | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Ingress Protection | Material Flammability Rating | Shell Material, Finish | Flange Feature | Number of Positions | Termination | Contact Finish | Number of Rows [custom] | Connector Style | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

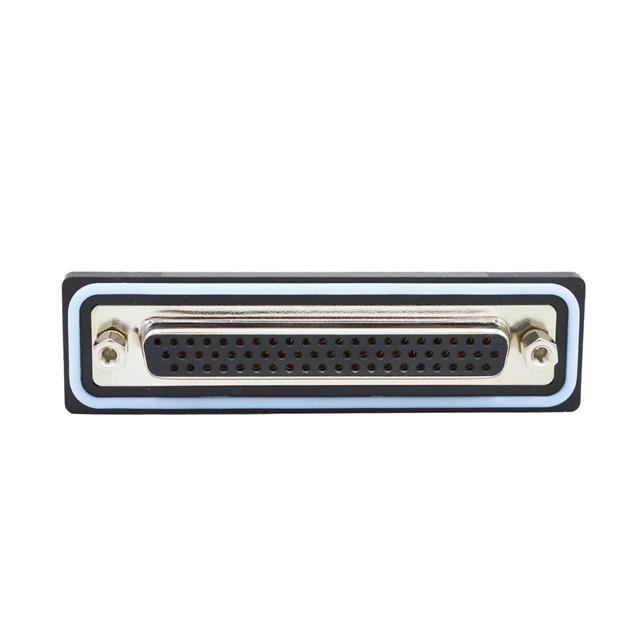

 NorComp Inc. | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | Black | Brass | Signal | Board Lock Mounting Brackets | C DC | 4 | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | 3 A | 30 Áin | 0.76 Ám | IP67 - Dust Tight Waterproof | UL94 V-0 | Nickel Plated Steel | 4-40 Mating Side Female Screwlock | 62 | Solder | Gold | 3 | D-Sub High Density | |

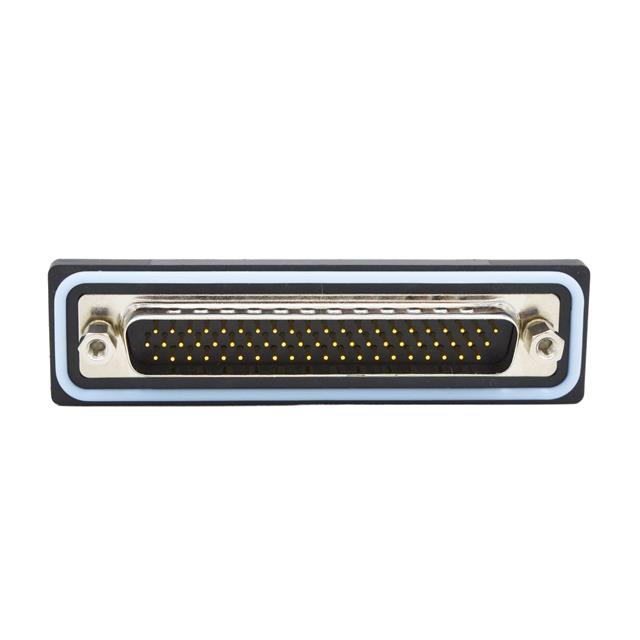

 NorComp Inc. | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | Black | Brass | Signal | Board Lock Grounding Indents Mounting Brackets | C DC | 4 | Panel Mount Right Angle Through Hole | Plug Male Pins | 3 A | 30 Áin | 0.76 Ám | IP67 - Dust Tight Waterproof | UL94 V-0 | Nickel Plated Steel | 4-40 Mating Side Female Screwlock | 62 | Solder | Gold | 3 | D-Sub High Density | |

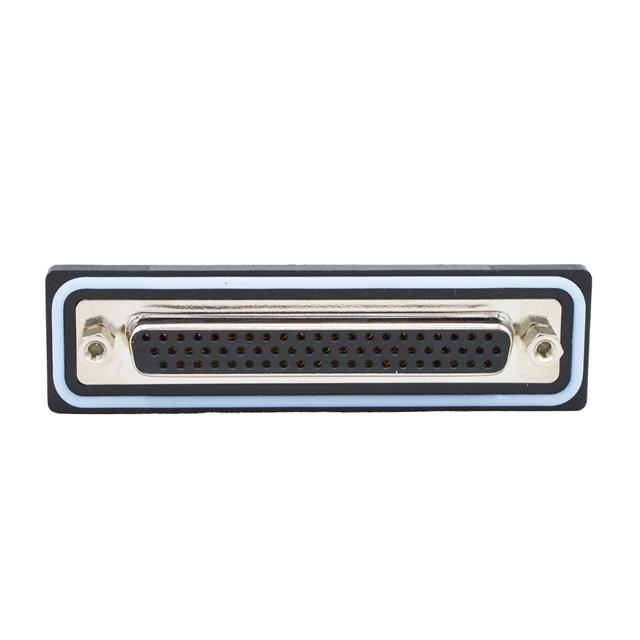

 NorComp Inc. | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | Black | Brass | Signal | C DC | 4 | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | 3 A | 30 Áin | 0.76 Ám | IP67 - Dust Tight Waterproof | UL94 V-0 | Nickel Plated Steel | 4-40 Mating Side Female Screwlock | 62 | Solder | Gold | 3 | D-Sub High Density | ||

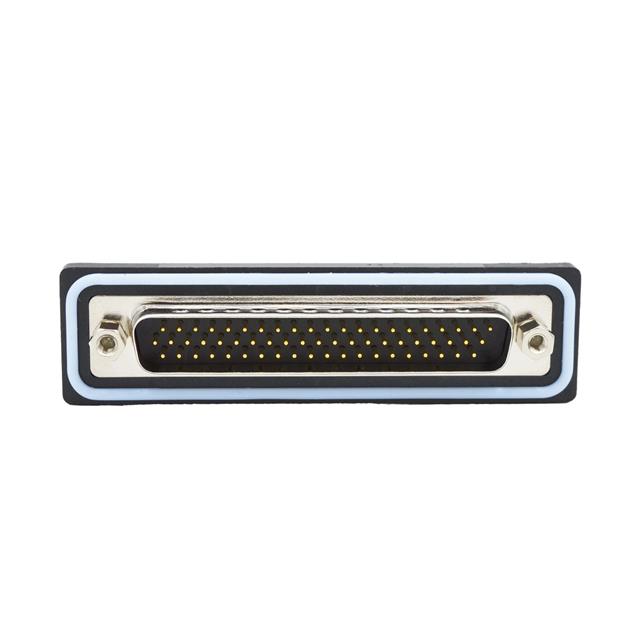

 NorComp Inc. | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | Black | Brass | Signal | Grounding Indents | C DC | 4 | Panel Mount Right Angle Through Hole | Plug Male Pins | 3 A | 30 Áin | 0.76 Ám | IP67 - Dust Tight Waterproof | UL94 V-0 | Nickel Plated Steel | 4-40 Mating Side Female Screwlock | 62 | Solder | Gold | 3 | D-Sub High Density | |
 NorComp Inc. | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | Black | Brass | Signal | Board Lock Grounding Indents Mounting Brackets | C DC | 4 | Panel Mount Right Angle Through Hole | Plug Male Pins | 3 A | IP67 - Dust Tight Waterproof | UL94 V-0 | Nickel Plated Steel | 4-40 Mating Side Female Screwlock | 62 | Solder | Gold | 3 | D-Sub High Density | Flash | ||
NorComp Inc. | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | Black | Brass | Signal | Grounding Indents | C DC | 4 | Panel Mount Right Angle Through Hole | Plug Male Pins | 3 A | IP67 - Dust Tight Waterproof | UL94 V-0 | Nickel Plated Steel | 4-40 Mating Side Female Screwlock | 62 | Solder | Gold | 3 | D-Sub High Density | Flash | ||
 NorComp Inc. | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | Black | Brass | Signal | C DC | 4 | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | 3 A | IP67 - Dust Tight Waterproof | UL94 V-0 | Nickel Plated Steel | 4-40 Mating Side Female Screwlock | 62 | Solder | Gold | 3 | D-Sub High Density | Flash |
