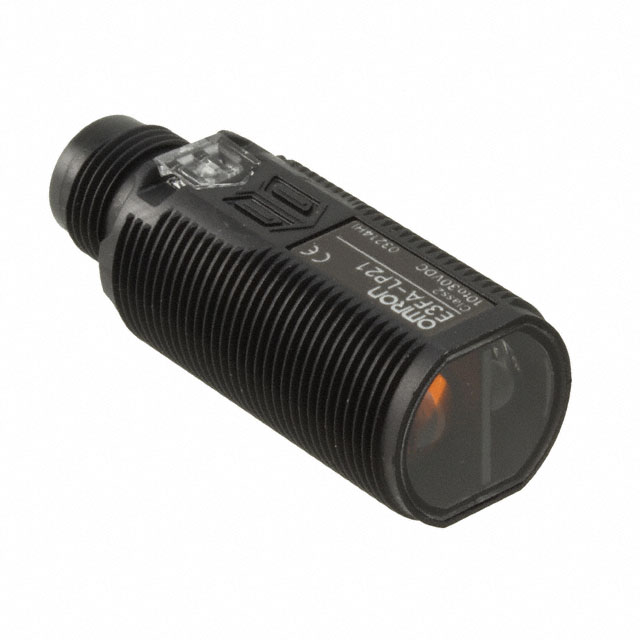

E3FA-LP Series
Manufacturer: Omron Automation and Safety
Catalog
SENSOR REFLECTIVE 100MM PNP
| Part | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Light Source | Connection Method | Response Time | Voltage - Supply [Min] | Voltage - Supply [Max] | Sensing Method | Output Configuration | Sensing Distance | Sensing Distance | Cable Length | Cable Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | IEC IEC IP67 IP67 IP69K | 55 °C | -25 °C | Red LED | Connector | 500 µs | 10 VDC | 30 VDC | Reflective | PNP - Dark-ON/Light-ON - Selectable | 10 cm | 3.937 in | ||
 Omron Automation and Safety | IEC IP67 IP69K | 55 °C | -25 °C | Red LED | Cable | 500 µs | 10 VDC | 30 VDC | Reflective | PNP - Dark-ON/Light-ON - Selectable | 10 cm | 3.937 in | 78.74 " | 2 m |
 Omron Automation and Safety | IEC IEC IP67 IP67 IP69K | 55 °C | -25 °C | Red LED | Connector | 500 µs | 10 VDC | 30 VDC | Reflective | PNP - Dark-ON/Light-ON - Selectable | 10 cm | 3.937 in | ||
Omron Automation and Safety | ||||||||||||||
 Omron Automation and Safety | IEC IEC IP67 IP67 IP69K | 55 °C | -25 °C | Red LED | Cable | 500 µs | 10 VDC | 30 VDC | Reflective | PNP - Dark-ON/Light-ON - Selectable | 10 cm | 3.937 in | 78.74 " | 2 m |
