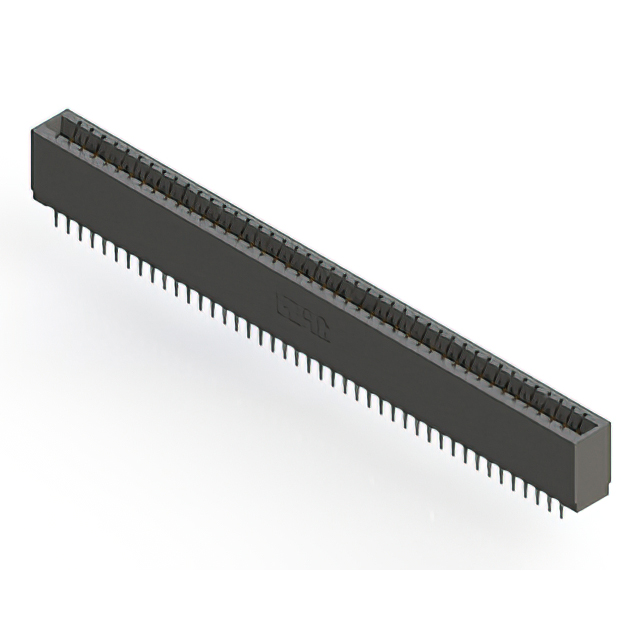

746-086 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 86POS 0.125

Part	Material - Insulation	Termination Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Read Out	Number of Rows [custom]	Pitch	Pitch	Number of Positions	Color	Mounting Type	Gender	Termination	Contact Type	Contact Material	Number of Positions/Bay/Row	Contact Finish
EDAC Inc. 746-086-527-206	Polyester Thermoplastic	2	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Non Specified - Dual Edge	Dual	2	3.18 mm	0.125 in	86	Black	Through Hole	Female	Press-Fit	Cantilever	Copper Alloy	43	Gold
EDAC Inc. 746-086-545-206	Polyester Thermoplastic	2	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Non Specified - Dual Edge	Dual	2	3.18 mm	0.125 in	86	Black	Through Hole	Female	Press-Fit Wire Wrap	Cantilever	Copper Alloy	43	Gold
EDAC Inc. 746-086-520-206	Polyester Thermoplastic	2	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Non Specified - Dual Edge	Dual	2	3.18 mm	0.125 in	86	Black	Through Hole	Female	Press-Fit	Cantilever	Copper Alloy	43	Gold
EDAC Inc. 746-086-525-606	Polyester Thermoplastic	2	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Non Specified - Dual Edge	Dual	2	3.18 mm	0.125 in	86	Black	Through Hole	Female	Press-Fit	Cantilever	Copper Alloy	43	Gold
EDAC Inc. 746-086-545-606	Polyester Thermoplastic	2	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Non Specified - Dual Edge	Dual	2	3.18 mm	0.125 in	86	Black	Through Hole	Female	Press-Fit Wire Wrap	Cantilever	Copper Alloy	43	Gold
EDAC Inc. 746-086-560-206	Polyester Thermoplastic	2	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Non Specified - Dual Edge	Dual	2	3.18 mm	0.125 in	86	Black	Through Hole	Female	Press-Fit	Cantilever Make Before Break	Copper Alloy	43	Gold
EDAC Inc. 746-086-541-201	Polyester Thermoplastic	2	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Non Specified - Dual Edge	Dual	2	3.18 mm	0.125 in	86	Black	Through Hole	Female	Press-Fit Wire Wrap	Cantilever	Copper Alloy	43	Gold
EDAC Inc. 746-086-553-601	Polyester Thermoplastic	2	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Non Specified - Dual Edge	Dual	2	3.18 mm	0.125 in	86	Black	Through Hole	Female	Press-Fit Wire Wrap	Cantilever	Copper Alloy	43	Gold
EDAC Inc. 746-086-553-606	Polyester Thermoplastic	2	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Non Specified - Dual Edge	Dual	2	3.18 mm	0.125 in	86	Black	Through Hole	Female	Press-Fit Wire Wrap	Cantilever	Copper Alloy	43	Gold
EDAC Inc. 746-086-540-606	Polyester Thermoplastic	2	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Non Specified - Dual Edge	Dual	2	3.18 mm	0.125 in	86	Black	Through Hole	Female	Press-Fit Wire Wrap	Cantilever	Copper Alloy	43	Gold
