391-058 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 58POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Pitch	Pitch	Contact Material	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Color	Contact Finish	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Termination	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Read Out	Number of Positions/Bay/Row	Card Type	Gender	Number of Rows [custom]	Features	Termination Rows	Number of Rows
EDAC Inc. 391-058-522-203	Polyester Thermoplastic	2	0.1 "	2.54 mm	Copper Alloy	Through Hole	0.25 Ám	10 Áin	58	Black	Gold	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	0.116 "	Floating Bobbin Flush Mount	2.95 mm	-40 C	105 ░C	Dual	29	Non Specified - Dual Edge	Female	2
EDAC Inc. 391-058-556-202	Polyester Thermoplastic	2	0.1 "	2.54 mm	Copper Alloy	Board Edge Straddle Mount	0.25 Ám	10 Áin	58	Black	Gold	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	-40 C	105 ░C	Dual	29	Non Specified - Dual Edge	Female	2	Card Extender
EDAC Inc. 391-058-521-103	Polyester Thermoplastic		0.1 "	2.54 mm	Copper Alloy	Through Hole	0.25 Ám	10 Áin	58	Black	Gold	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	0.116 "	Floating Bobbin Flush Mount	2.95 mm	-40 C	105 ░C	Single	58	Non Specified - Single Edge	Female			1	1
EDAC Inc. 391-058-555-203	Polyester Thermoplastic	2	0.1 "	2.54 mm	Copper Alloy	Through Hole	0.25 Ám	10 Áin	58	Black	Gold	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder Eyelet(s)	0.116 "	Floating Bobbin Flush Mount	2.95 mm	-40 C	105 ░C	Dual	29	Non Specified - Dual Edge	Female	2	Card Extender

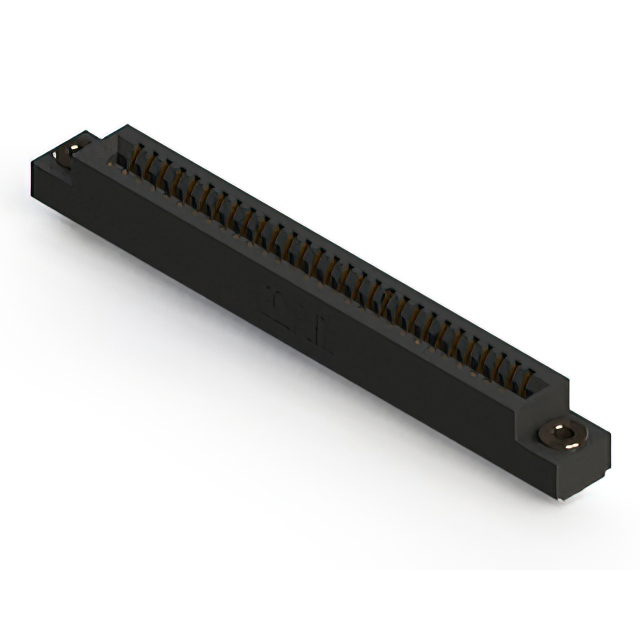

EDAC Inc. 391-058-556-203	Polyester Thermoplastic	2	0.1 "	2.54 mm	Copper Alloy	Through Hole	0.25 Ám	10 Áin	58	Black	Gold	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	0.116 "	Floating Bobbin Flush Mount	2.95 mm	-40 C	105 ░C	Dual	29	Non Specified - Dual Edge	Female	2	Card Extender
EDAC Inc. 391-058-556-204	Polyester Thermoplastic	2	0.1 "	2.54 mm	Copper Alloy	Through Hole	0.25 Ám	10 Áin	58	Black	Gold	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm	-40 C	105 ░C	Dual	29	Non Specified - Dual Edge	Female	2	Card Extender

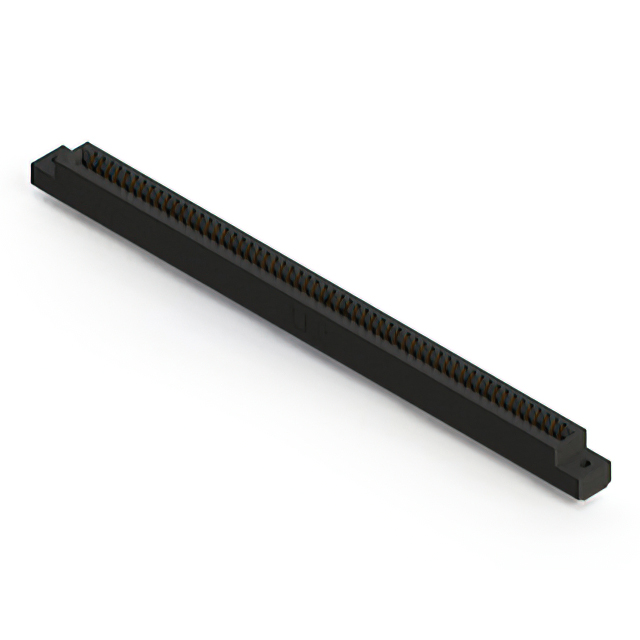

EDAC Inc. 391-058-520-102	Polyester Thermoplastic		0.1 "	2.54 mm	Copper Alloy	Through Hole	0.25 Ám	10 Áin	58	Black	Gold	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	-40 C	105 ░C	Single	58	Non Specified - Single Edge	Female			1	1
EDAC Inc. 391-058-522-208	Polyester Thermoplastic	2	0.1 "	2.54 mm	Copper Alloy	Through Hole	0.25 Ám	10 Áin	58	Black	Gold	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder		4-40 Flush Mount Threaded Insert Top Opening		-40 C	105 ░C	Dual	29	Non Specified - Dual Edge	Female	2
EDAC Inc. 391-058-521-108	Polyester Thermoplastic		0.1 "	2.54 mm	Copper Alloy	Through Hole	0.25 Ám	10 Áin	58	Black	Gold	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder		4-40 Flush Mount Threaded Insert Top Opening		-40 C	105 ░C	Single	58	Non Specified - Single Edge	Female			1	1
EDAC Inc. 391-058-521-104	Polyester Thermoplastic		0.1 "	2.54 mm	Copper Alloy	Through Hole	0.25 Ám	10 Áin	58	Black	Gold	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm	-40 C	105 ░C	Single	58	Non Specified - Single Edge	Female			1	1
