1825137 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

SWITCH TOGGLE SPDT 0.4VA 20V

Part	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Mounting Type	Actuator Type	Features	Actuator Material	Voltage Rating - AC	Illumination	Switch Function	Bushing Thread	Electrical Life	Current Rating (Amps)	Termination Style	Actuator Length [x]	Panel Cutout Dimensions [diameter]
TE Connectivity Raychem Cable Protection 3-1825137-3	20 V	-30 ░C	85 °C	SPDT	Through Hole	Standard Round	Epoxy Sealed Terminals	Brass Nickel Plated	20 V	Non-Illuminated	Mom-Off-Mom	Unthreaded	6000 Cycles	0.4 VA	PC Pin	12.19 mm
TE Connectivity Raychem Cable Protection 3-1825137-4	20 V	-30 ░C	85 °C	SPDT	Panel Mount Right Angle	Standard Round	Epoxy Sealed Terminals	Brass Nickel Plated	20 V	Non-Illuminated	Mom-Off-Mom	1/4-40	6000 Cycles	0.4 VA	PC Pin	10.41 mm	0.25 in
TE Connectivity Raychem Cable Protection 2-1825137-8	28 V	-30 ░C	85 °C	SPDT		Flatted	Epoxy Sealed Terminals	Brass Nickel Plated	120 V	Non-Illuminated	Mom-Off-Mom	1/4-40	6000 Cycles	5 A	PC Pin	12.29 mm	0.25 in
TE Connectivity Raychem Cable Protection 1-1825137-7	20 V	-20 C	85 °C	SPDT		Standard Round	Epoxy Sealed Terminals	Brass Nickel Plated	20 V	Non-Illuminated	On-Off-On	1/4-40	6000 Cycles	0.4 VA	Wire Wrap	10.41 mm	0.25 in
TE Connectivity Raychem Cable Protection 1-1825137-5	20 V	-30 ░C	85 °C	SPDT		Standard Round	Epoxy Sealed Terminals	Brass Nickel Plated	20 V	Non-Illuminated	On-Off-On	1/4-40	6000 Cycles	0.4 VA	PC Pin	10.41 mm	0.25 in
TE Connectivity Raychem Cable Protection 2-1825137-3	28 V	-30 ░C	85 °C	SPDT		Standard Round	Epoxy Sealed Terminals	Brass Nickel Plated	120 V	Non-Illuminated	On-Off-On	15/32-32	6000 Cycles	5 A	Solder Lug	17.45 mm	12 mm
TE Connectivity Raychem Cable Protection 1-1825137-3	28 V	-30 ░C	85 °C	SPDT	Panel Mount Right Angle	Standard Round	Epoxy Sealed Terminals	Brass Nickel Plated	120 V	Non-Illuminated	On-Off-On	1/4-40	6000 Cycles	5 A	PC Pin	10.41 mm	0.25 in
TE Connectivity Raychem Cable Protection 3-1825137-1	20 V	-30 ░C	85 °C	SPDT	Through Hole Right Angle	Standard Round	Epoxy Sealed Terminals	Brass Nickel Plated	20 V	Non-Illuminated	Mom-Off-Mom	Unthreaded	6000 Cycles	0.4 VA	PC Pin	12.19 mm
TE Connectivity Raychem Cable Protection 3-1825137-7	28 V	-30 ░C	85 °C	SPDT		Standard Round	Epoxy Sealed Terminals	Brass Nickel Plated	120 V	Non-Illuminated	Mom-Off-Mom	1/4-40	6000 Cycles	5 A	PC Pin	10.41 mm	0.25 in

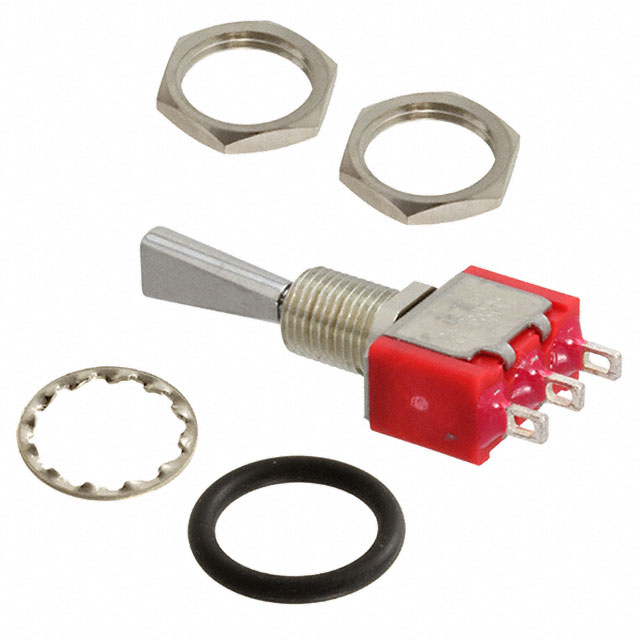

TE Connectivity Raychem Cable Protection 4-1825137-8	28 V	-30 ░C	85 °C	SPDT		Flatted	Epoxy Sealed Terminals	Brass Nickel Plated	120 V	Non-Illuminated	On-Off-Mom	1/4-40	6000 Cycles	5 A	Solder Lug	12.29 mm	0.25 in
