807-086 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 86POS 0.156
| Part | Termination Rows [custom] | Material - Insulation | Color | Features | Pitch | Pitch | Gender | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Contact Type | Contact Material | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Number of Rows [custom] | Number of Positions | Card Thickness [Max] | Card Thickness [Min] | Card Type | Read Out | Number of Positions/Bay/Row | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

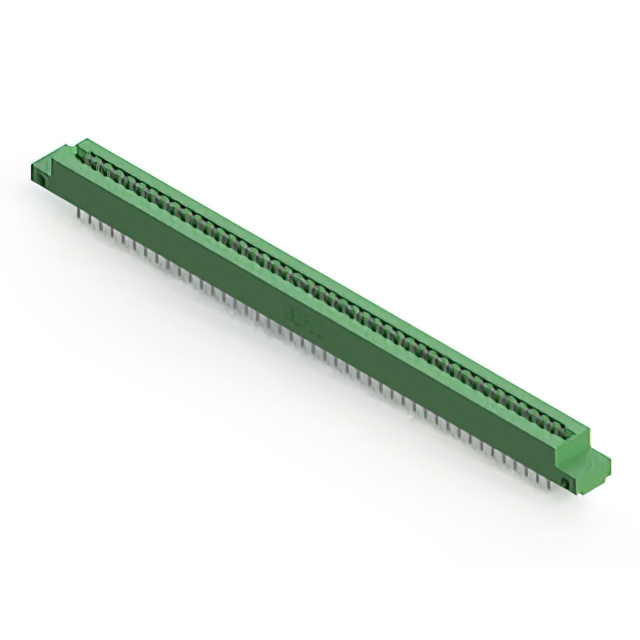

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Green | Card Extender | 3.96 mm | 0.156 in | Female | 0.25 Ám | 10 Áin | Board Edge Straddle Mount | Semi Bellows | Copper Alloy | Solder | 125 °C | -40 C | Gold | 2 | 86 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Dual | 43 | |||

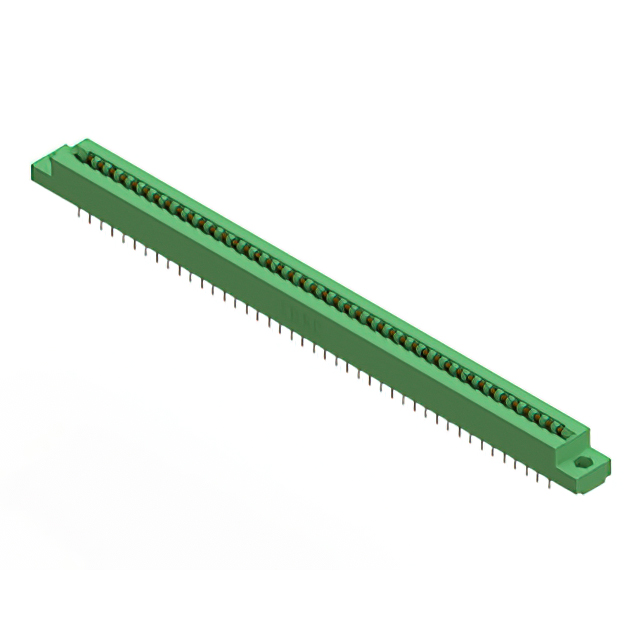

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Green | 3.96 mm | 0.156 in | Female | Right Angle Through Hole | Semi Bellows | Copper Alloy | Solder | 125 °C | -40 C | Tin | 2 | 86 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Single | 43 | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | |||

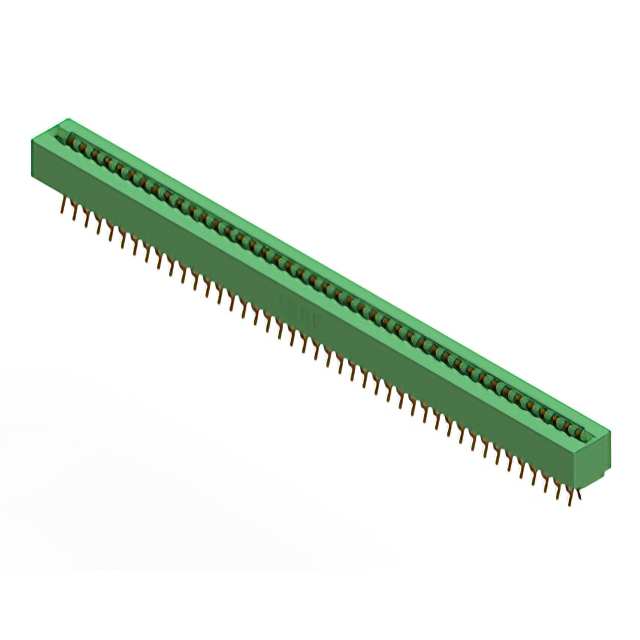

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Green | 3.96 mm | 0.156 in | Female | Through Hole | Semi Bellows | Copper Alloy | Solder | 125 °C | -40 C | Tin | 2 | 86 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Dual | 43 | 4-40 Flush Mount Threaded Insert Top Opening | |||||

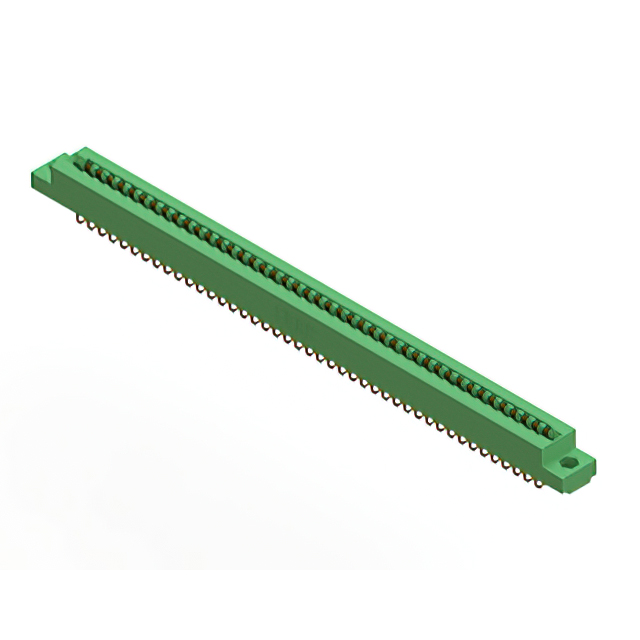

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Green | 3.96 mm | 0.156 in | Female | 0.25 Ám | 10 Áin | Through Hole | Semi Bellows | Copper Alloy | Solder Eyelet(s) | 125 °C | -40 C | Gold | 2 | 86 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Dual | 43 | Side Mount Opening Unthreaded | 3.25 mm | 0.128 " | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Green | 3.96 mm | 0.156 in | Female | 0.25 Ám | 10 Áin | Through Hole | Semi Bellows | Copper Alloy | Solder | 125 °C | -40 C | Gold | 2 | 86 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Dual | 43 | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Green | 3.96 mm | 0.156 in | Female | 0.25 Ám | 10 Áin | Through Hole | Semi Bellows | Copper Alloy | Solder | 125 °C | -40 C | Gold | 2 | 86 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Dual | 43 | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 " | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Green | 3.96 mm | 0.156 in | Female | 0.25 Ám | 10 Áin | Through Hole | Semi Bellows | Copper Alloy | Solder Eyelet(s) | 125 °C | -40 C | Gold | 2 | 86 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Dual | 43 | 4-40 Flush Mount Threaded Insert Top Opening | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Green | 3.96 mm | 0.156 in | Female | 0.25 Ám | 10 Áin | Through Hole | Semi Bellows | Copper Alloy | Wire Wrap | 125 °C | -40 C | Gold | 2 | 86 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Dual | 43 | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 " | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Green | 3.96 mm | 0.156 in | Female | Through Hole | Semi Bellows | Copper Alloy | Solder | 125 °C | -40 C | Tin | 2 | 86 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Dual | 43 | Side Mount Opening Unthreaded | 3.25 mm | 0.128 " | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Green | 3.96 mm | 0.156 in | Female | Through Hole | Semi Bellows | Copper Alloy | Wire Wrap | 125 °C | -40 C | Tin | 2 | 86 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Dual | 43 | 4-40 Flush Mount Threaded Insert Top Opening |
