VC06 Series

Catalog

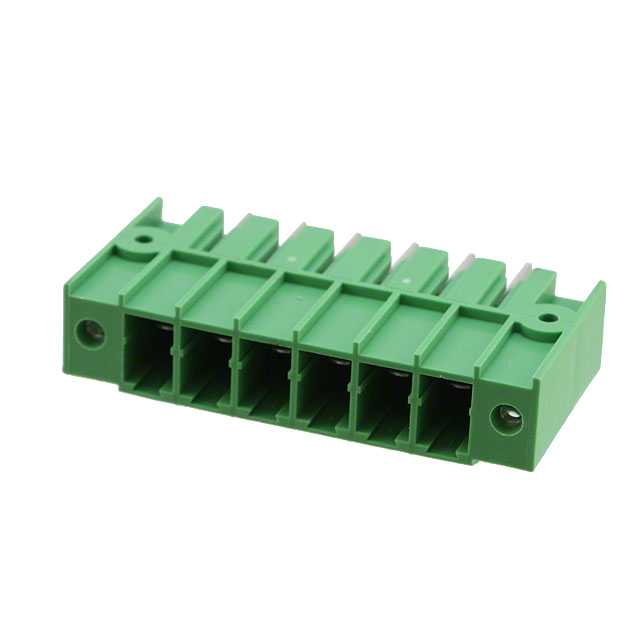

TERM BLOCK HDR 6POS 90DEG 7.62MM

Part	Header Orientation	Mounting Type	Positions Per Level	Pitch [x]	Pitch [x]	Termination Style	Voltage - UL	Insulation Height	Insulation Height	Contact Material	Features	Current - UL	Number of Levels	Material Flammability Rating	Color	Contact Tail Length	Contact Tail Length	Number of Positions	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Type	Contact Mating Finish
Amphenol Anytek VC06015B0000G	90° Right Angle	Through Hole	6	0.3 in	7.62 mm	Solder	300 V	13.6 mm	0.535 in	Copper	Mounting Flange	41 A	1	UL94 V-0	Green	5 mm	0.197 in	6	Thermoplastic	-40 °C	115 °C	Blade Pins Header Shrouded (4 Side)	Tin
Amphenol Anytek VC0600500000G	90° Right Angle	Through Hole	6	0.3 in	7.62 mm	Solder	300 V	14.3 mm	0.563 in	Copper Alloy		32 A	1	UL94 V-0	Green	5 mm	0.197 in	6	Thermoplastic Resin	-40 °C	115 °C	Header Male Pins Shrouded (4 Side)	Tin
Amphenol Anytek VC06035B0000G	90° Right Angle	Through Hole	6	0.3 in	7.62 mm	Solder	300 V					32 A	1		Green			6				Blade Pins Header Shrouded (4 Side)
Amphenol Anytek VC060150B000G	90° Right Angle	Through Hole	6	0.3 in	7.62 mm	Solder	300 V				Mounting Flange	32 A	1		Green			6				Blade Pins Header Shrouded (4 Side)
Amphenol Anytek VC06035A0000G	Vertical	Through Hole	6	0.3 in	7.62 mm	Solder	300 V					32 A	1		Green			6				Blade Pins Header Shrouded (4 Side)
Amphenol Anytek VC0601510000G	Vertical	Through Hole	6	0.3 in	7.62 mm	Solder	300 V	29 mm	1.142 in	Copper Alloy	Mating Flange	32 A	1	UL94 V-0	Green	5 mm	0.197 in	6	Thermoplastic Resin	-40 °C	115 °C	Blade Pins Header Shrouded (4 Side)	Tin
Amphenol Anytek VC0600510000G	Vertical	Through Hole	6	0.3 in	7.62 mm	Solder	300 V	29 mm	1.142 in	Copper Alloy		32 A	1	UL94 V-0	Green	5 mm	0.197 in	6	Thermoplastic Resin	-40 °C	115 °C	Header Male Pins Shrouded (4 Side)	Tin
