896-017 Series
Manufacturer: EDAC Inc.
Beta
⌘K

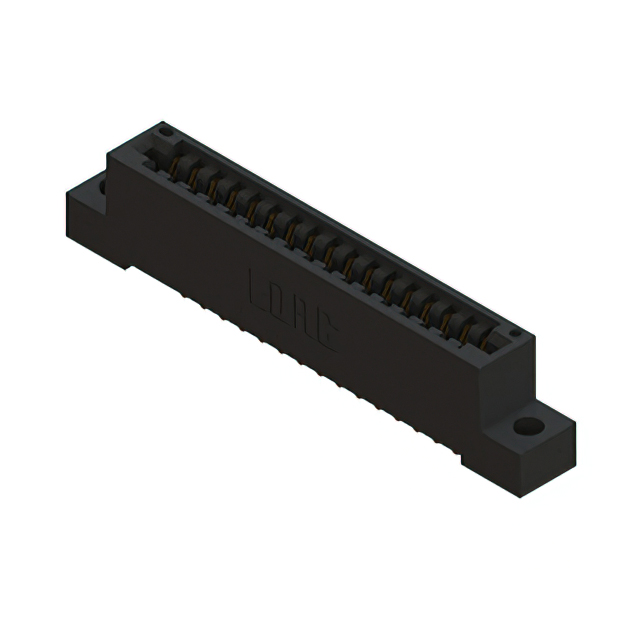

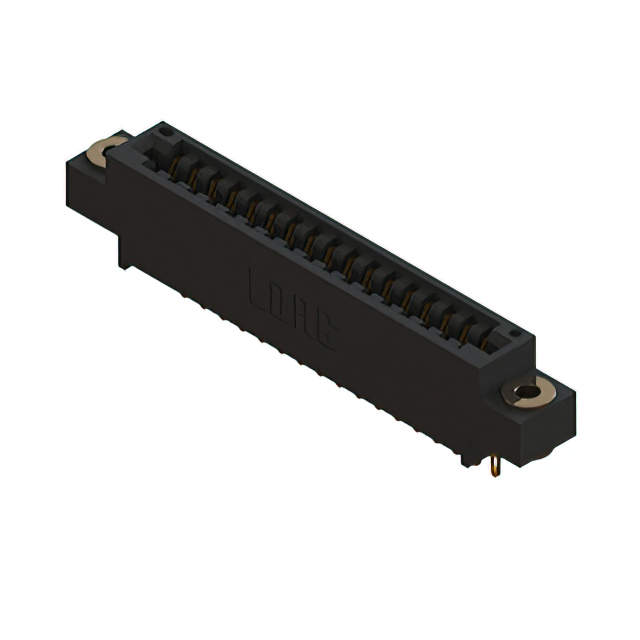

CONN EDGE SGL FMALE 17POS 0.125
| Part | Termination Rows | Material - Insulation | Contact Material | Read Out | Contact Type | Pitch | Pitch | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Termination | Number of Rows | Number of Positions/Bay/Row [custom] | Card Type | Operating Temperature [Max] | Operating Temperature [Min] | Color | Gender | Card Thickness [Max] | Card Thickness [Min] | Contact Finish | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | Single | Cantilever | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | Through Hole | Solder | 1 | 17 | Non Specified - Single Edge | 125 °C | -40 C | Black | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | |||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | Single | Cantilever | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | Right Angle Through Hole | Solder | 1 | 17 | Non Specified - Single Edge | 125 °C | -40 C | Black | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 4-40 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | Single | Cantilever | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | Through Hole | Solder | 1 | 17 | Non Specified - Single Edge | 125 °C | -40 C | Black | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | Single | Cantilever | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | Through Hole | Solder Eyelet(s) | 1 | 17 | Non Specified - Single Edge | 125 °C | -40 C | Black | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Flush Mount M3 Threaded Insert Top Opening | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | Single | Cantilever | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | Through Hole | Solder | 1 | 17 | Non Specified - Single Edge | 125 °C | -40 C | Black | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 0.156 " | 3.96 mm | |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | Single | Cantilever | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | Through Hole | Solder Eyelet(s) | 1 | 17 | Non Specified - Single Edge | 125 °C | -40 C | Black | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | Single | Cantilever | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | Through Hole | Solder | 1 | 17 | Non Specified - Single Edge | 125 °C | -40 C | Black | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | M3 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | Single | Cantilever | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | Through Hole | Solder | 1 | 17 | Non Specified - Single Edge | 125 °C | -40 C | Black | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | Single | Cantilever | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | Through Hole | Wire Wrap | 1 | 17 | Non Specified - Single Edge | 125 °C | -40 C | Black | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | |||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | Single | Cantilever | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | Through Hole | Solder Eyelet(s) | 1 | 17 | Non Specified - Single Edge | 125 °C | -40 C | Black | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 0.128 " | 3.25 mm |
