PDQE10 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER +/-24V 10W

Part	Voltage - Input (Max) [Max]	Power (Watts)	Package / Case	Efficiency	Type	Number of Outputs	Voltage - Output 2	Voltage - Input (Min) [Min]	Standard Number	Voltage - Isolation	Features	Mounting Type	Approval Agency	Applications	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Voltage - Output 1	DC Voltage - Input (Min) [Min]	DC Voltage - Input (Max) [Max]	Input Type	Current - Output (Max)
CUI Inc. PDQE10-Q24-D24-D	36 V	10 W	6-DIP Module	87 %	Isolated Module	2	-24 V	9 V	55024 55032 Class A 60950-1	1.5 kV	OCP OVP Remote On/Off SCP	Through Hole	CB Scheme EN IEC UL	ITE (Commercial)	1 "	25.4 mm	1 in	0.46 in	11.7 mm	25.4 mm	-40 °C	85 °C	208 mA	208 mA	24 V

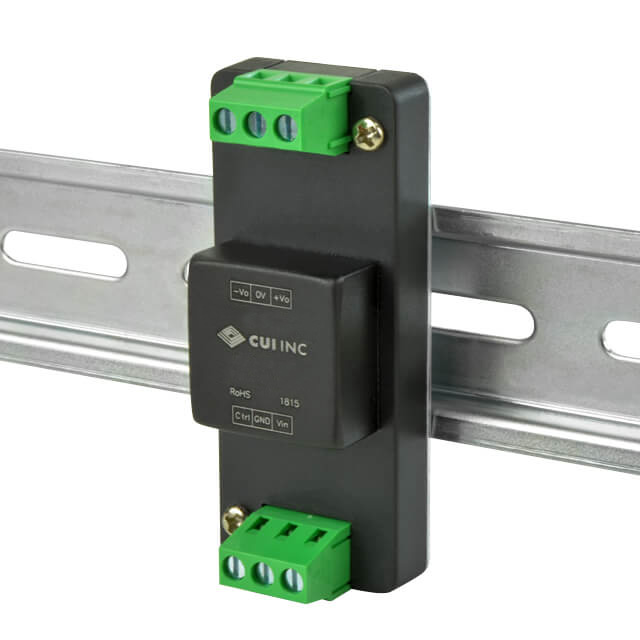

CUI Inc. PDQE10-Q48-D24-DIN		10 W		87 %		2	-24 V			1.5 kV	Remote On/Off		CE cURus	ITE (Commercial)	1.24 in	31.5 mm	2.99 in	0.87 in	22.2 mm	76 mm	-40 °C	85 °C	208 mA	208 mA	24 V	18 V	75 V	DC

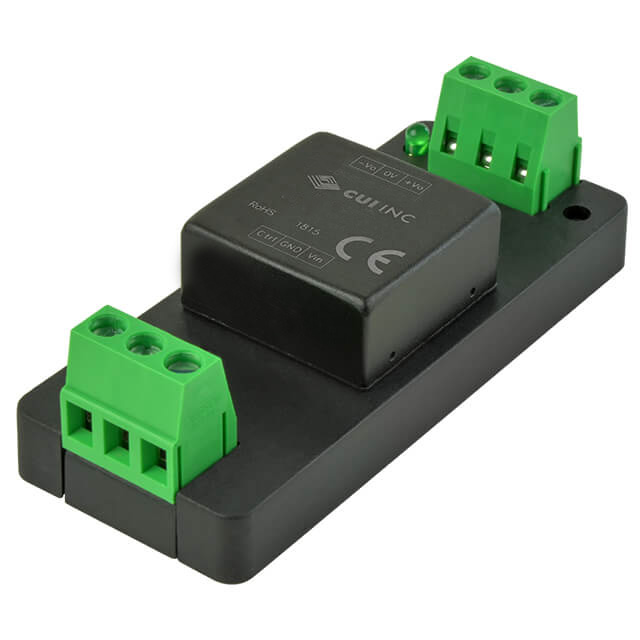

CUI Inc. PDQE10-Q48-S15-T	75 V	10 W		87 %	Enclosed	1		18 V	55024 55032	1.5 kV		Chassis Mount	EN	ITE (Commercial)	1.24 in	31.5 mm	2.99 in	0.84 in	21.2 mm	76 mm	-40 °C	85 °C		667 mA	15 V
CUI Inc. PDQE10-Q48-D24-T	75 V	10 W		87 %	Enclosed	2	-24 V	18 V	55024 55032	1.5 kV		Chassis Mount	EN	ITE (Commercial)	1.24 in	31.5 mm	2.99 in	0.84 in	21.2 mm	76 mm	-40 °C	85 °C	208 mA	208 mA	24 V
CUI Inc. PDQE10-Q48-D12-T	75 V	10 W		87 %	Enclosed	2	-12 V	18 V	55024 55032	1.5 kV		Chassis Mount	EN	ITE (Commercial)	1.24 in	31.5 mm	2.99 in	0.84 in	21.2 mm	76 mm	-40 °C	85 °C	416 mA	416 mA	12 V
CUI Inc. PDQE10-Q24-D15-D	36 V	10 W	6-DIP Module	87 %	Isolated Module	2	-15 V	9 V	55024 55032 Class A 60950-1	1.5 kV	OCP OVP Remote On/Off SCP	Through Hole	CB Scheme EN IEC UL	ITE (Commercial)	1 "	25.4 mm	1 in	0.46 in	11.7 mm	25.4 mm	-40 °C	85 °C			15 V				333 mA
CUI Inc. PDQE10-Q48-D5-D	75 V	10 W	6-DIP Module	83 %	Isolated Module	2	-5 V	18 V	55024 55032 Class A 60950-1	1.5 kV	OCP OVP Remote On/Off SCP	Through Hole	CB Scheme EN IEC UL	ITE (Commercial)	1 "	25.4 mm	1 in	0.46 in	11.7 mm	25.4 mm	-40 °C	85 °C			5 V				1 A
CUI Inc. PDQE10-Q24-D5-DIN		10 W		83 %		2	-5 V		60950-1	1.5 kV	Remote On/Off		CB Scheme IEC UL	ITE (Commercial)	1.24 in	31.5 mm	2.99 in	0.87 in	22.2 mm	76 mm	-40 °C	85 °C			5 V	9 V	36 V	DC	1 A
CUI Inc. PDQE10-Q24-D5-T	36 V	10 W		83 %	Enclosed	2	-5 V	9 V	55024 55032 Class A 60950-1	1.5 kV		Chassis Mount	CB Scheme EN IEC UL	ITE (Commercial)	1.24 in	31.5 mm	2.99 in	0.84 in	21.2 mm	76 mm	-40 °C	85 °C			5 V				1 A
CUI Inc. PDQE10-Q24-D24-T	36 V	10 W		87 %	Enclosed	2	-24 V	9 V	55024 55032 Class A 60950-1	1.5 kV		Chassis Mount	CB Scheme EN IEC UL	ITE (Commercial)	1.24 in	31.5 mm	2.99 in	0.84 in	21.2 mm	76 mm	-40 °C	85 °C	208 mA	208 mA	24 V
