21_TNC-50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K
21_TNC-50-4-16/133_NE
| Part | Body Finish | Body Material | Dielectric Material | Center Contact Plating | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Center Contact Material | Housing Color | Shield Termination | Frequency - Max [Max] | Connector Type | Impedance | Cable Group | Fastening Type | Number of Ports | Mounting Type | Contact Termination | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

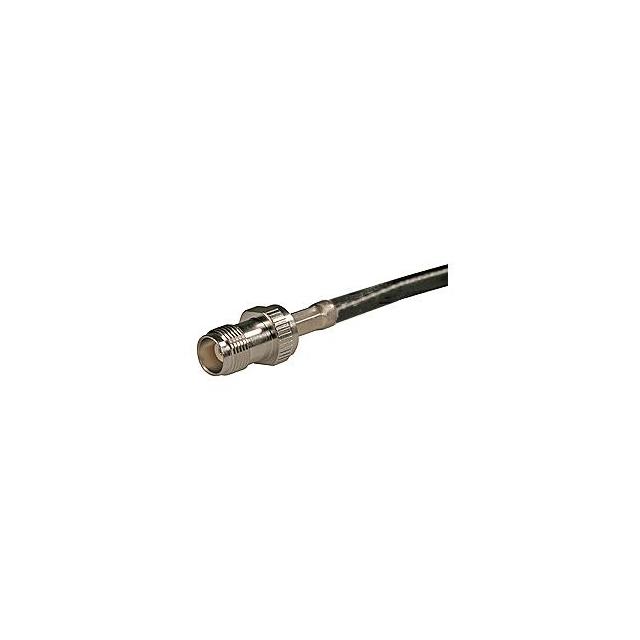

 Huber+Suhner, Inc. | White Bronze | Brass | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | 500 | -65 ░C | 165 °C | 500 V | Beryllium Copper | Silver | Crimp | 11 GHz | Female Socket Jack | 50 Ohms | LMR-240 | Threaded | 1 | Free Hanging (In-Line) | Crimp | TNC |

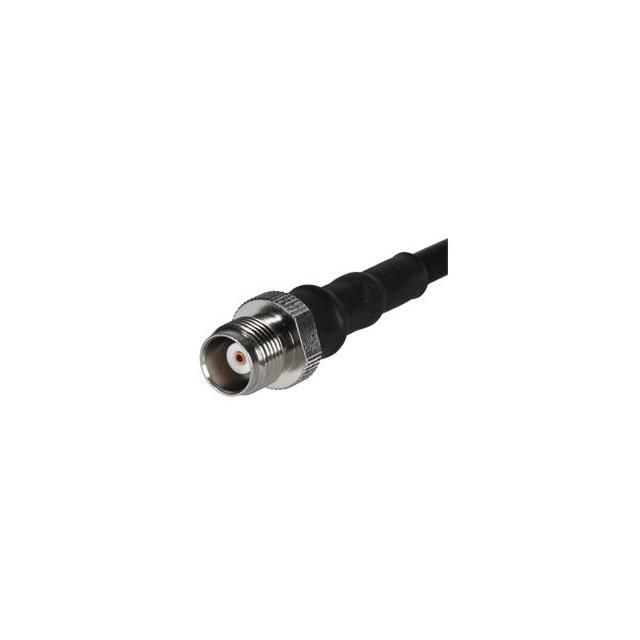

 Huber+Suhner, Inc. | Nickel | Brass | Polytetrafluoroethylene (PTFE) | Gold | 500 | -60 °C | 165 °C | 500 V | Beryllium Copper | Silver | Clamp | 11 GHz | Female Socket Jack | 50 Ohms | RG-B6C | Threaded | 1 | Free Hanging (In-Line) | Crimp | TNC |
